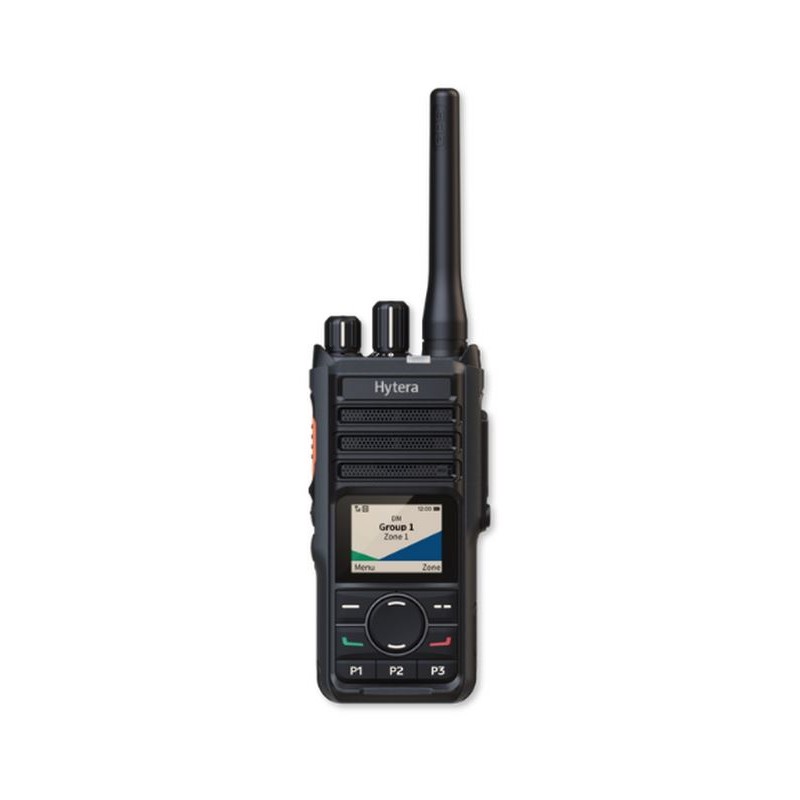

Hytera HP565 BT handheld two-way radio UHF

Hytera's HP5 range is a new generation of professional portable two-way radios that provides reliable voice communications for high-end office buildings, stadiums, industrial parks, schools, hospitals and more. The universal Type-C port makes programming, upgrading, and charging more convenient than ever before. The HP5 is durable enough to withstand dust, heat, shock, and water submersion and is IP67 and MIL-STD-810G certified. The HP565 in particular features up to 512 channels / 32 zones / 32 channels per zone and has 5 programmable buttons. This model also comes with a display screen so users can receive and display text messages and also select functions via a menu (for example users can make calls from a contact list).

CRISP, CLEAR AUDIO

Crystal-clear audio in any environment, thanks to AI-based noise cancellation. Suppresses any annoying feedback howling and unwanted ambient noises.

BREAK THROUGH THE DISTANCE

With 0.18 µV (-122 dBm) sensitivity, the HP5 series provides exceptional communication coverage. It ensures reliable communications even with weak signals at the edge of coverage.

UNIVERSAL TYPE-C PORT

Just share the same USB data cable with your smartphone, then you can charge your radio with a power bank or car charger, or program and upgrade your radio.

BT, WIRELESSLY, CONVENIENTLY

Optional BT 5.2 capability,using BT audio accessories. Allows to pair the radio with smartphone, using the Hytool Radio Manager App for radio programming.

EASIER TO USE

Dedicated dual knobs for volume and channel controls. Install or remove the belt clip more easily without screws. The enlarged LED indicator allows you to know the radio status at a glance, no matter whether the radio is in your hand or on your shoulder or waist.

RUGGED RELIABILITY

The radio housing is made of polycarbonate with excellent abrasion and heat resistance. IP67-rated and meets stringent MIL-STD-810G for protecting against dust, water, vibrations, 1.5 meter drops, extreme temperatures, and more.

Technical Specifications

General

Frequency range UHF: 400-470 MHz

Channels & zones Channel capacity: 256, Zone capacity: 32, Channels per zone: 32

Channel spacing Analogue: 12.5kHz/20kHz/25kHz, Digital: 12.5kHz

Operating voltage 7.4 V

Battery 1500 mAh Li-ion

Frequency stability ±0.5 ppm

Antenna impedance 50 Ω

Dimensions 119 mm x 55 mm x 30.5 mm

Weight 270 g

Display 1.45 inch colour LCD

Bluetooth BT V5.2 BLE+EDR

Receiver

Sensitivity Analogue: 0.18µV (12dB SINAD), Analogue: 0.16µV (12dB SINAD) (typical), Digital: 0.18µV / BER 5%

Selectivit TIA-603: 60dB @12.5kHz / 70dB @20/25kHz, ETSI: 60 dB @12.5kHz / 70dB @20/25kHz

Intermodulation TIA-603: 70 dB, ETSI: 65 dB

Spurious response rejection TIA-603: 70 dB, ETSI: 70 dB

Blocking TIA-603: 80 dB, ETSI: 84 dB

Hum and noise 40 dB @12.5kHz, 43 dB @20kHz, 45 dB @25kHz

Rated audio power output 0.5 W

Rated audio distortion <3%

Audio response +1 to -3 dB

Conducted spurious emission < -57 dBm

Transmitter

RF power output UHF: 1W / 4W

FM modulation 11K0F3E @12.5kHz, 14K0F3E @20kHz, 16K0F3E @25kHz

4FSK digital modulation 12.5kHz data only: 7K60FXD, 12.5kHz data and voice: 7K60FXW

Conducted/radiated emission -36dBm @<1GHz; -30dBm @>1GHz

Modulation limiting ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz

FM hum and noise 40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz

Adjacent channel power 60dB @12.5kHz; 70dB @20/25kHz

Audio distortion <3%

Digital vocoder type AMBE+2™

Digital protocol ETSI-TS102 361-1,-2,-3

Environmental

Operating temperature -30°C to +60°C (radio only / battery: -20 ℃)

Storage temperature -40°C to +85°C

ESD IEC 61000-4-2 (level 4), ±8 kV (contact), ±15 kV (air)

Ingress protection IEC60529 - IP67

Drop, shock and vibration per MIL-STD-810 H standard

Humidity per MIL-STD-810 H standard
