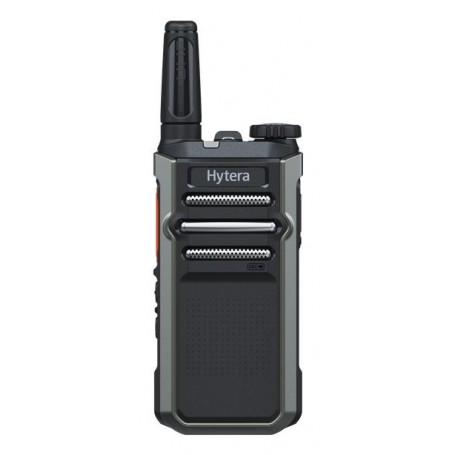

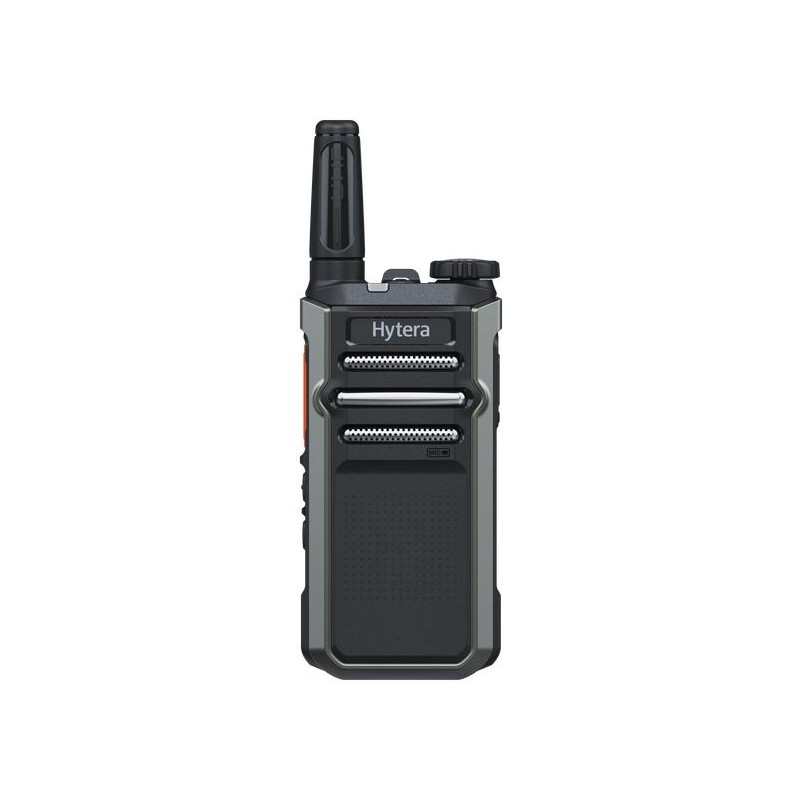

Hytera AP325 UHF Handheld Analogue Radio (400-440 MHz): Enhanced Communication for Commercial Efficiency

The Hytera AP325 is designed to empower businesses in sectors such as supermarkets, hotels, and logistics. It enhances efficiency and productivity by providing reliable communication in a lightweight, user-friendly package. This radio boasts clear, loud audio and a robust battery, making it a versatile tool for various commercial industries.

Key Features

• Professional Noise Cancellation: Utilizes a sophisticated algorithm for superior sound clarity.
• Exceptional Audio Quality: Features a large acoustic cavity for outstanding sound.
• Compact and Portable: Lightweight design with an extremely compact antenna for easy carrying.
• Extended Communication Range: Achieved through a new RF solution.
• Convenient Charging and Updates: Single USB Type-C port for charging, programming, and updating.

Enhanced Communication Distance

Maintain constant connectivity with advanced RF solutions, 3W transmission power, and impressive RX sensitivity of up to 0.18 μV.

Crystal Clear and Loud Audio

Featuring a professional noise reduction algorithm, achieving up to 20 dB noise reduction, and a 3W speaker that delivers audio up to 90dB.

Improved User Experience

Features durable keys, a 3.5 mm audio jack, and a USB Type-C port for seamless programming and upgrades.

Fast Charging

Fully charges in just 2.5 hours. The USB Type-C connectivity allows for easy charging with standard USB cables, power supplies, or even USB power banks.

Portability and Design

With a low weight and 4.5 cm ultra-stubby antenna, the radio is easy to carry. A sleek design with a metal channel selector knob, metal mesh speaker, and dual-shot injection molding & plating case enhances its stylish appeal.

Technical Specifications

General Specifications

• Frequency Range: 400-440 MHz
• Channel Capacity: 32 channels, 2 zones, 16 channels per zone
• Channel Spacing: 12.5kHz/20kHz/25kHz
• Operating Voltage: 3.8V (rated)
• Battery: 2200mAh Li-Polymer (built-in) with 10-hour life
• Frequency Stability: ±0.5ppm
• Antenna Impedance: 50 Ω
• Dimensions: 118 x 55 x 25 mm
• Weight: 130 g (with antenna & battery)
• Bluetooth: Not available

Receiver Specifications

• Sensitivity: 0.18μV (12dB SINAD)
• Adjacent Channel Selectivity: 60 dB @12.5 kHz / 70 dB @20/25 kHz
• Intermodulation: 70 dB @12.5/20/25 kHz
• Spurious Response Rejection: 70 dB @12.5/20/25 kHz
• Blocking: 80 dB
• Hum and Noise: 40 dB @12.5 kHz, 43 dB @20 kHz, 45 dB @25 kHz
• Rated Audio Power Output: 0.5 W
• Rated Audio Distortion: ≤3%
• Audio Response: +1~-3dB
• Conducted Spurious Emission: <-57dBm

Transmitter Specifications

• RF Power Output: 3W / 1W
• FM Modulation: 11K0F3E @12.5kHz, 14K0F3E @20kHz, 16K0F3E @25kHz
• Conducted/Radiated Emission: -36dBm＜1GHz, -30dBm＞1GHz
• Modulation Limiting: ±2.5kHz @12.5kHz, ±4.0kHz @20kHz, ±5.0kHz @25kHz
• FM Hum & Noise: 40dB @12.5kHz, 43dB @20kHz, 45dB @25kHz
• Adjacent Channel Power: 60dB @12.5kHz, 70dB @20/25kHz
• Audio Distortion: ≤3%

Environmental Specifications

• Operating Temperature: -20℃ to +50℃
• Storage Temperature: -40℃ to +85℃
• ESD: IEC 61000-4-2 (Level 3), ±4 kV (contact), ±8 kV (air)
• Dust and Water Intrusion: None
