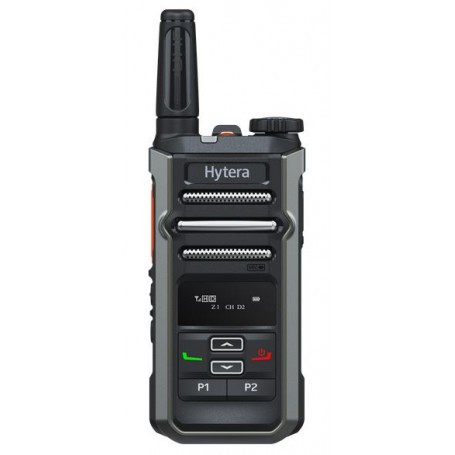

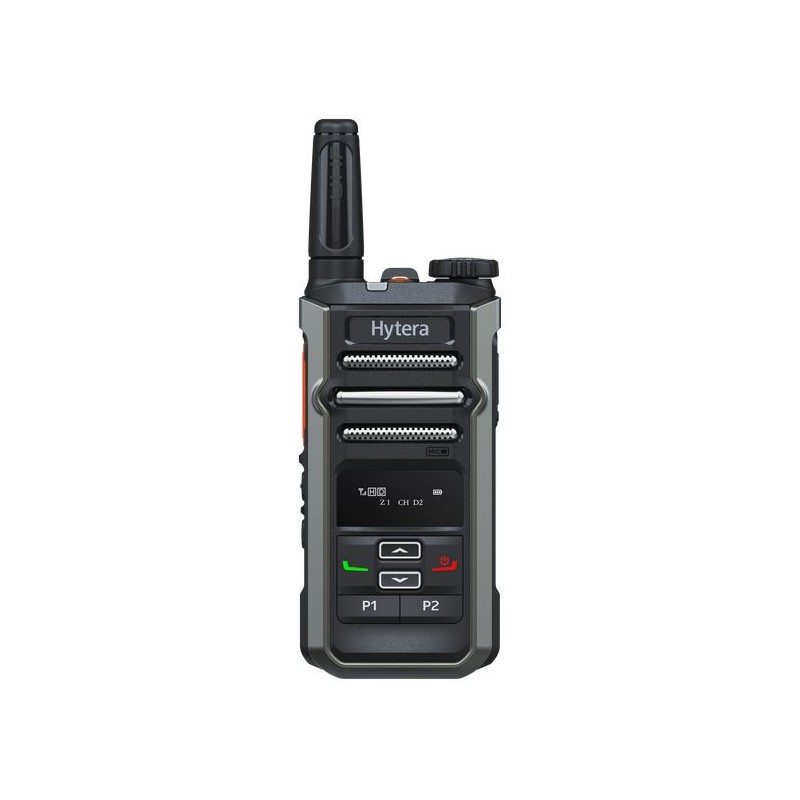

Hytera BP365 Handheld DMR and Analogue Radio UHF Ua 400-440MHz

Hytera BP365 Dual-Mode Handheld Radio (DMR and Analogue) - UHF Ua 400-440MHz

The Hytera BP365 is a versatile and powerful handheld radio that supports both digital and analogue modes, ensuring compatibility with your existing systems and terminals. This compact device is perfect for professional and personal use, offering a range of features that enhance communication, audio clarity, and user convenience.

Key Features

• Dual Mode Support: Seamlessly switch between digital and analogue modes to suit your communication needs.
• Professional Noise Cancellation: Employs an advanced algorithm for superior noise reduction.
• Exceptional Audio Quality: Designed with a large acoustic cavity for outstanding sound output.
• DMO Two-Slot Communication: Utilizes Hytera Pseudo Trunk for efficient communication.
• Compact and Portable: Lightweight design with an ultra-compact body and antenna, easy to carry.
• Extended Communication Range: Enhanced RF solution for longer communication distances.
• Convenient USB Type-C Port: Charge, program, and update with a single port.
• Flexible Channel Capacity: Supports up to 256 channels, allowing for adaptable group communication.

Enhanced Communication

Stay connected with the new RF solution, offering 3W TX power and RX sensitivity up to 0.18 μV, ensuring reliable communication over extended distances.

Clear and Loud Audio

Experience up to 20 dB noise reduction with a professional noise reduction algorithm and a powerful 3W speaker that outputs up to 90dB audio.

Improved User Experience

• Durable long-life keys
• 3.5 mm jack audio connector
• USB Type-C port for easy programming and upgrades

Fast Charging

Fully charge your device in just 2.5 hours. Thanks to USB Type-C connectivity, it can be charged with standard USB cables, power supply units, or even USB power banks.

Easy to Carry

The lightweight design and 4.5 cm ultra-stubby antenna make it easy to carry anywhere on your body.

Simple and Stylish Design

• Metal channel selector knob
• Metal mesh speaker
• Dual-shot injection molding and plating case

Technical Specifications

General

• Frequency range Ua: 400-440 MHz
• Channel capacity: 256
• Zone capacity: 8
• Channels per zone: 16
• Channel spacing: Analogue - 12.5kHz/20kHz/25kHz, Digital - 12.5kHz
• Operating voltage: 3.8 V
• Battery: 2200 mAh Li-Polymer (built-in)
• Battery life: Analogue - 10 hours, Digital - 14 hours
• Frequency stability: ±0.5 ppm
• Antenna impedance: 50 Ω
• Dimensions: 118 x 55 x 25 mm
• Weight (with antenna & battery): 135 g
• Display: 0.9 inch OLED

Receiver

• Sensitivity: Analogue - 0.18 μV (12dB SINAD), Digital - 0.18 μV / BER5%
• Adjacent channel selectivity: TIA-603 - 60 dB @12.5 kHz / 70 dB @20/25 kHz, ETSI - 60 dB @12.5 kHz / 70 dB @20/25 kHz
• Intermodulation: TIA-603 - 70 dB @12.5/20/25 kHz, ETSI - 65 dB @12.5/20/25 kHz
• Spurious response rejection: TIA-603 - 70 dB @12.5/20/25 kHz, ETSI - 70 dB @12.5/20/25 kHz
• Blocking: TIA-603 - 80 dB, ETSI - 84 dB
• Hum and noise: 40 dB @12.5 kHz, 43 dB @20 kHz, 45 dB @25 kHz
• Rated audio power output: 0.5W
• Rated audio distortion: <3%
• Audio response: +1 to -3dB
• Conducted spurious emission: <-57 dBm

Transmitter

• RF power output: 3W / 1W
• FM modulation: 11 K0F3E @12.5kHz, 14K0F3E @20kHz, 16K0F3E @25kHz
• 4FSK digital modulation: 12.5 kHz data only - 7K60FXD, 12.5 kHz data and voice - 7K60FXW
• Conducted/radiated emission: -36dBm @<1GHz, -30dBm @>1GHz
• Modulation limiting: ±2.5kHz @12.5kHz, ±4.0kHz @20kHz, ±5.0kHz @25kHz
• FM hum & noise: 40dB @12.5kHz, 43dB @20kHz, 45dB @25kHz
• Adjacent channel power: 60dB @12.5kHz, 70dB @20/25kHz
• Audio distortion: ≤3%
• Digital vocoder type: AMBE+2™
• Digital protocol: ETSI-TS102 361-1,-2,-3

Environmental

• Operating temperature: -20°C to +50°C
• Storage temperature: -40°C to +85°C
• ESD: IEC 61000-4-2 (level 3), ±4 kV (contact), ±8 kV (air)
• Ingress protection: none
