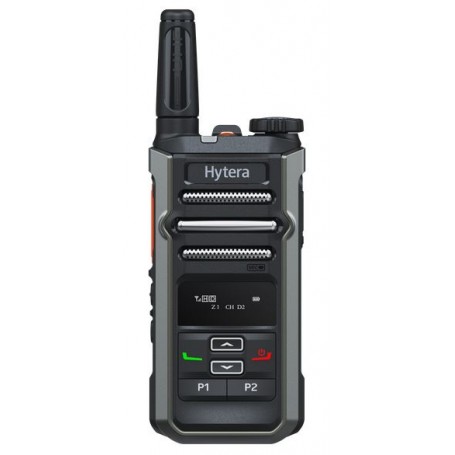

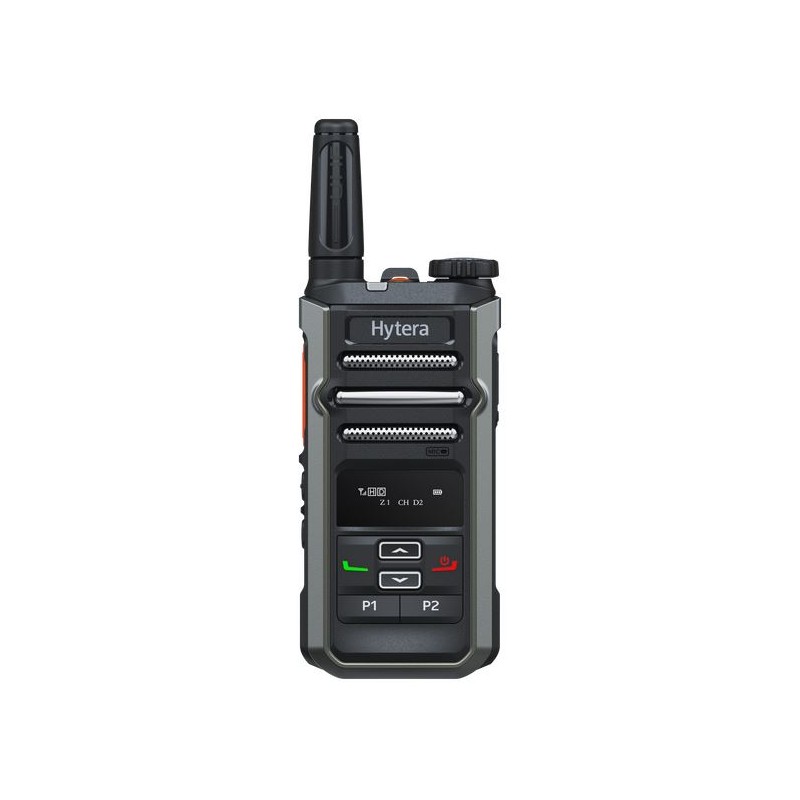

Hytera BP365 BT Handheld DMR and Analogue Radio UHF Ua 400-440MHz

Supports both digital and analogue modes, compatible with your existing digital and analogue systems and terminals.

• Professional noise cancellation algorithm
• Outstanding sound through the design of a large acoustic cavity
• DMO Two-slot communication solution (Hytera Pseudo Trunk)
• Easy to carry thanks to the integration of a compact body and an extremely compact antenna
• Longer communication distance by brand new RF solution
• Charge, program and update with just one Type-C USB port

The BP365 has extended range in class and features 256 channels, making group communication more flexible.

EXTENDED COMMUNICATION

Stay always connected with brand-new RF solution, 3W TX power and a RX sensitivity up to 0.18 μV

CLEAR AND LOUD AUDIO

Professional noise reduction algorithm | up to 20 dB noise reduction | 3W speaker outputs up to 90dB audio

IMPROVED USER EXPERIENCE

Long-life keys | 3.5 mm jack audio connector | USB Type-C port for programming and upgrading.

FAST CHARGING

100% charged in 2.5 hours | Thanks to USB Type C connectivity it can be easily charged with standard USB cables and power supply units and even USB power banks.

EASY TO CARRY

The very low weight and the 4.5 cm ultra-stubby antenna facilitates carrying anywhere on the body.

SIMPLE AND STYLISH

Metal channel selector knob | metal mesh speaker | dual-shot injection molding & plating case

Technical Specifications

General

Frequency range Ua: 400-440 MHz

Channels & zones Channel capacity: 256, Zone capacity: 8, Channels per zone: 16

Channel spacing Analogue: 12.5kHz/20kHz/25kHz, Digital: 12.5kHz

Operating voltage 3.8 V

Battery 2200 mAh Li-Polymer (built-in)

Battery life (5/5/90 duty cycle, high TX power) Analogue: 10 hours, Digital: 14 hours

Frequency stability ±0.5 ppm

Antenna impedance 50 Ω

Dimensions (H x W x D) (mm) 118 x 55 x 25 mm

Weight (with antenna & battery) 135 g

Display 0.9 inch OLED

Bluetooth BT 5.0 with BLE+EDR

Receiver

Sensitivity Analogue: 0.18 μV (12dB SINAD), Digital: 0.18 μV / BER5%

Adjacent channel selectivity TIA-603: 60 dB @12.5 kHz / 70 dB @20/25 kHz, ETSI: 60 dB @12.5 kHz / 70 dB @20/25 kHz

Intermodulation TIA-603: 70 dB @12.5/20/25 kHz, ETSI: 65 dB @12.5/20/25 kHz

Spurious response rejection TIA-603: 70 dB @12.5/20/25 kHz, ETSI: 70 [email protected]/20/25 kHz

Blocking TIA-603: 80 dB, ETSI: 84 dB

Hum and noise 40 dB @12.5 kHz, 43 dB @20 kHz, 45 dB @25 kHz

Rated audio power output 0.5W

Rated audio distortion <3%

Audio response +1 to -3dB

Conducted spurious emission <-57 dBm

Transmitter

RF power output 3W / 1W

FM modulation 11 K0F3E @12.5kHz, 14K0F3E @20kHz, 16K0F3E @25kHz

4FSK digital modulation 12.5 kHz data only: 7K60FXD, 12.5 kHz data and voice: 7K60FXW

Conducted/radiated emission -36dBm @<1GHz, -30dBm @>1GHz

Modulation limiting ±2.5kHz @12.5kHz, ±4.0kHz @20kHz, ±5.0kHz @25kHz

FM hum & noise 40dB @12.5kHz, 43dB @20kHz, 45dB @25kHz

Adjacent channel power 60dB @12.5kHz, 70dB @20/25kHz

Audio distortion ≤3%

Digital vocoder type AMBE+2™

Digital protocol ETSI-TS102 361-1,-2,-3

Environmental

Operating temperature -20°C to +50°C

Storage temperature -40°C to +85°C

ESD IEC 61000-4-2 (level 3), ±4 kV (contact), ±8 kV (air)

Ingress protection none
