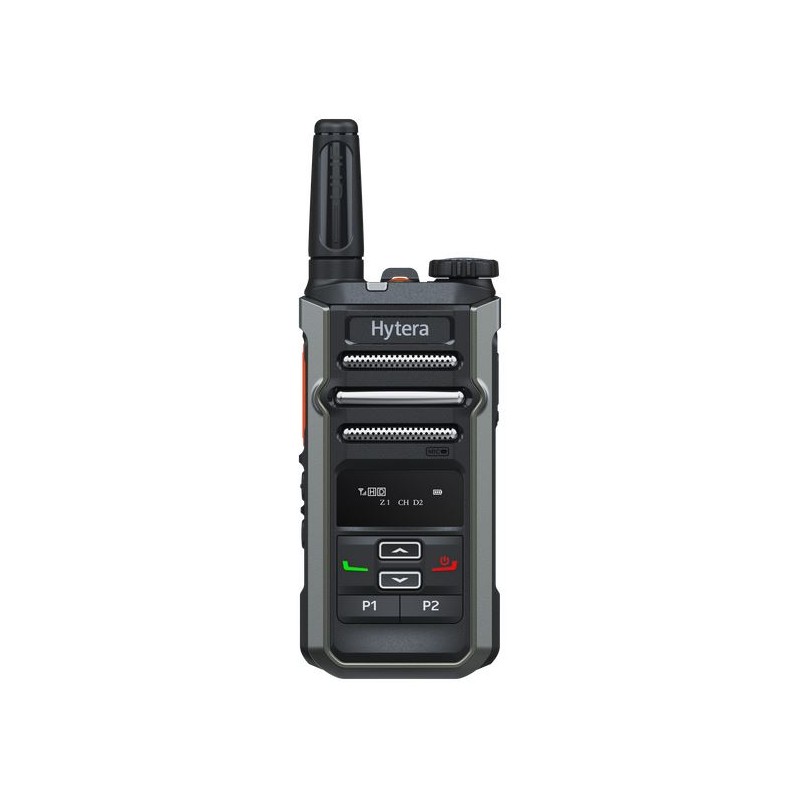

Hytera BP365 BT Handheld DMR and Analogue Radio UHF Ua 430-470 MHz

The Hytera BP365 BT is a versatile handheld radio that seamlessly supports both digital and analogue modes, ensuring compatibility with your existing systems and terminals. Designed for professional use, it offers a perfect blend of advanced features and ease of use.

Key Features

• Noise Cancellation: Professional noise cancellation algorithm for clear communication.
• Outstanding Sound: Designed with a large acoustic cavity for superior audio quality.
• DMO Two-slot Communication: Utilizes the Hytera Pseudo Trunk for efficient communication.
• Compact Design: Lightweight and portable with an ultra-compact antenna.
• Extended Range: Enhanced communication distance with a new RF solution.
• Convenient Charging: Charge, program, and update via a single Type-C USB port.

Extended Communication

Stay connected with an impressive RF solution, 3W TX power, and RX sensitivity up to 0.18 μV, ensuring you're always in touch.

Clear and Loud Audio

Experience up to 20 dB noise reduction with a professional noise reduction algorithm. The powerful 3W speaker outputs audio up to 90dB, ensuring clear communication even in noisy environments.

Improved User Experience

• Durable, long-life keys.
• 3.5 mm jack audio connector.
• USB Type-C port for easy programming and upgrading.

Fast Charging

Fully charges in just 2.5 hours. The USB Type-C connectivity allows for versatile charging options, including standard USB cables, power supplies, and USB power banks.

Easy to Carry

With a very low weight and a 4.5 cm ultra-stubby antenna, this radio is easy to carry anywhere.

Simple and Stylish Design

• Metal channel selector knob.
• Metal mesh speaker.
• Dual-shot injection molding & plating case.

Technical Specifications

General

• Frequency Range: Ua: 430-470 MHz
• Channel Capacity: 256 channels with 8 zones, 16 channels per zone
• Channel Spacing: Analogue: 12.5kHz/20kHz/25kHz, Digital: 12.5kHz
• Operating Voltage: 3.8 V
• Battery: 2200 mAh Li-Polymer (built-in)
• Battery Life: Analogue: 10 hours, Digital: 14 hours (5/5/90 duty cycle, high TX power)
• Frequency Stability: ±0.5 ppm
• Antenna Impedance: 50 Ω
• Dimensions: 118 x 55 x 25 mm
• Weight: 135 g (with antenna & battery)
• Display: 0.9 inch OLED
• Bluetooth: BT 5.0 with BLE+EDR

Receiver

• Sensitivity: Analogue: 0.18 μV (12dB SINAD), Digital: 0.18 μV / BER5%
• Adjacent Channel Selectivity: TIA-603: 60 dB @12.5 kHz / 70 dB @20/25 kHz, ETSI: 60 dB @12.5 kHz / 70 dB @20/25 kHz
• Intermodulation: TIA-603: 70 dB @12.5/20/25 kHz, ETSI: 65 dB @12.5/20/25 kHz
• Spurious Response Rejection: TIA-603: 70 dB @12.5/20/25 kHz, ETSI: 70 dB @12.5/20/25 kHz
• Blocking: TIA-603: 80 dB, ETSI: 84 dB
• Hum and Noise: 40 dB @12.5 kHz, 43 dB @20 kHz, 45 dB @25 kHz
• Rated Audio Power Output: 0.5W
• Rated Audio Distortion: <3%
• Audio Response: +1 to -3dB
• Conducted Spurious Emission: <-57 dBm

Transmitter

• RF Power Output: 3W / 1W
• FM Modulation: 11 K0F3E @12.5kHz, 14K0F3E @20kHz, 16K0F3E @25kHz
• 4FSK Digital Modulation: 12.5 kHz data only: 7K60FXD, 12.5 kHz data and voice: 7K60FXW
• Conducted/Radiated Emission: -36dBm @<1GHz, -30dBm @>1GHz
• Modulation Limiting: ±2.5kHz @12.5kHz, ±4.0kHz @20kHz, ±5.0kHz @25kHz
• FM Hum & Noise: 40dB @12.5kHz, 43dB @20kHz, 45dB @25kHz
• Adjacent Channel Power: 60dB @12.5kHz, 70dB @20/25kHz
• Audio Distortion: ≤3%
• Digital Vocoder Type: AMBE+2™
• Digital Protocol: ETSI-TS102 361-1,-2,-3

Environmental

• Operating Temperature: -20°C to +50°C
• Storage Temperature: -40°C to +85°C
• ESD: IEC 61000-4-2 (level 3), ±4 kV (contact), ±8 kV (air)
• Ingress Protection: None
