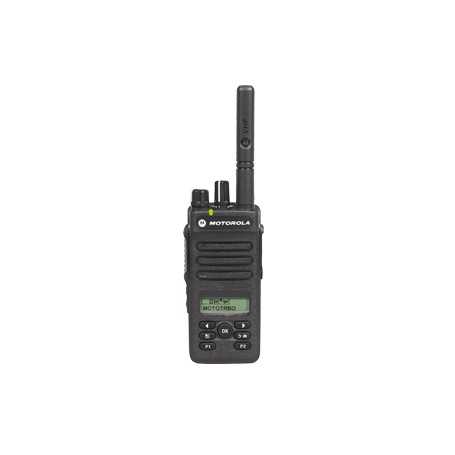

Motorola DP2600e MOTOTRBO Digital Two-Way Radio UHF

The DP2000e Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organisation.

Here's what's new in these next-generation radios:

• Over-the-air programming
• Enhanced audio quality
• Improved expandability
• Better battery life (up to 28 hours)
• Better range (up to 8%)
• Better waterproofing (IP67)
• TIA4950 certified HazLoc models available

DP2000e Series includes:

DP2400e

DP2600e

Features

Connected

The DP2000e Series is a family of ETSI DMR Standards compliant digital radios that delivers operation-critical voice communications. With a single button push, workers can communicate for greater efficiency and enhanced safety. With support for trunking, as well as legacy analogue technology, you can keep your organisation connected as it grows.

Efficient

With new noise cancellation technology and improved clarity, the DP2000e Series delivers excellent audio quality to make your workplace communications clearly intelligible. The latest energy technology delivers up to 28 hours of battery life for 3-shift working, and the optional IMPRES Over-the-Air Battery Management tool helps you maximize battery lifetime. An improved receiver boosts range by up to 8%, allowing you to reach further than ever.

Safe

The DP2000e Series is designed to enhance safety in your organisation, with the rapid response capability of instantaneous push-to-talk comunications. Even if a worker is unresponsive, you can remotely activate the radio to check status, ensuring your worker is safe. Privacy options are available to prevent others listening in on your communications, and radios can be remotely disabled if they are misplaced or stolen. New TIA4950 certified models are available for use in hazardous locations where flammable or explosive materials are present.

Performance Characteristics

Frequency band

UHF (403-527 MHz)

Power output

UHF: 1W/4W

Battery life (based on a 05 05 90 duty cycle)

Up to 28.5 hrs (digital) / 21 hrs (analogue)

Repeater capable

Yes

Physical Characteristics

Dimensions H x W x D (with standard battery)

122 x 56 x 36 mm (4.8 x 2.2 x 1.4 in)

Weight (With 1400mAh LiIon battery)

DP2600e: 281 g (10 oz)

DP2400e: 264 g (9.3 oz)

Radio Features

Number of channels

DP2600e: 128 channels

DP2400e: 16 channels

Channel spacing

12.5, 20, 25

Technology

Digital technology

Yes

System type

Conventional, IP Site Connect, Capacity Plus

User Environment

Mil spec

810 D, 810 E, 810 F, 810 G

IP Standards

IP67
