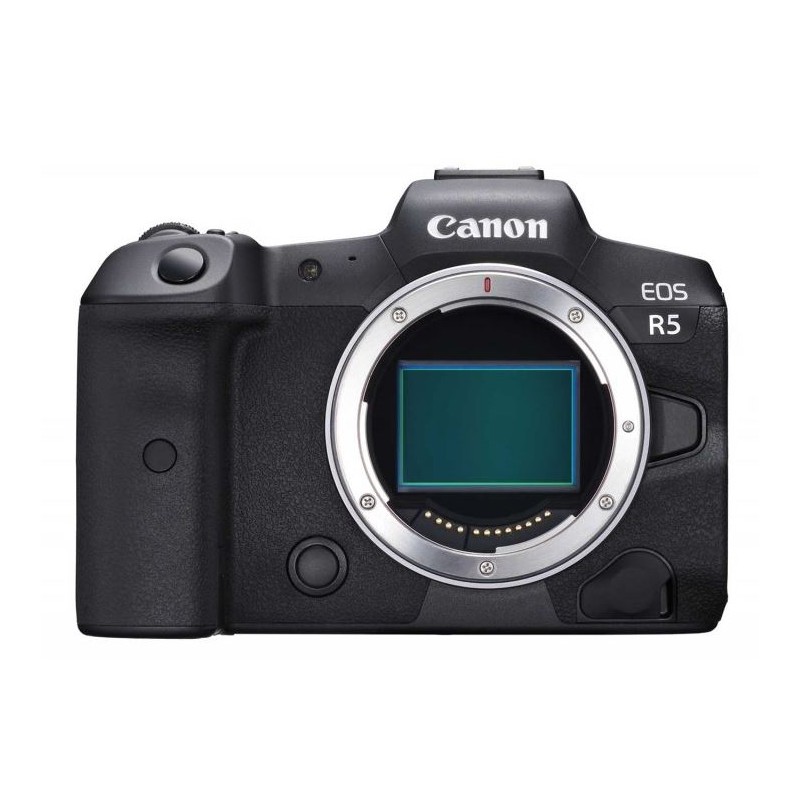

Canon EOS R5 Mirrorless Digital Camera (Body Only)

Mirrorless Digital Camera (Body Only)

• Newly Developed Full-Frame CMOS Sensor
• 8K30 Raw and 4K120 10-Bit Internal Video
• In-Body 5-Axis Image Stabilization
• 12 fps Mech. Shutter, 20 fps E. Shutter

Canon is currently developing the EOS R5 full-frame mirrorless camera containing CMOS sensor, image processing, optical, and other state-of-the-art technologies the company has cultivated through its long history of camera development. The EOS R System enables greater freedom in lens design thanks to a wider lens mount diameter, short back focus, and high-speed system for transmitting data between the camera and lens, resulting in an imaging system that delivers higher image quality and greater ease-of-use.

The new full-frame mirrorless camera, currently under development, will fully leverage the advantages of the EOS R System, helping to produce a camera that features high-speed continuous shooting and 8K video recording. Furthermore, the camera will provide photographers with more efficient workflows thanks to improved transmission functionality, operability and reliability. These enhancements, along with many others, will help to further elevate and solidify the EOS Series concept of "Speed, Comfort and High-Image-Quality."

Canon's EOS R5, the first of the next generation of full-frame mirrorless cameras planned for EOS R System, will include a newly developed CMOS sensor. The new sensor will enable enhanced features such as high-speed continuous shooting up to approximately 20 fps when using the silent shutter and up to approximately 12 fps when using the mechanical shutter; a feature professional sports and wildlife photographers will find to be extremely impactful on their ability to capture fast-moving subjects. From a video perspective, the camera's 8K video capture capability will prepare videographers for the future of movie-making: capturing 8K footage today allows for even higher-quality 4K productions in addition to the ability to extract high-resolution still images from the video footage. The EOS R5 will be the first Canon camera equipped with IBIS (In Body Image Stabilization) and when used in conjunction with the extremely effective in-lens stabilization (IS), will allow photographers to handhold the camera in light levels not previously imagined. Additionally, the camera will also feature dual-card slots and will support the automatic transfer of image files from the device to the new image.canon cloud platform.

Technical Detail

Imaging

Lens Mount Canon RF

Camera Format Full-Frame (1x Crop Factor)

Pixels Actual: 47.1 Megapixel

Effective: 45.0 Megapixel

Maximum Resolution 8192 x 5464

Aspect Ratio 1:1, 3:2, 4:3, 16:9

Sensor Type CMOS

Sensor Size 36 x 24 mm

Image File Format JPEG, Raw

Bit Depth 14-Bit

Image Stabilization Sensor-Shift, 5-Axis

Exposure Control

ISO Sensitivity Auto, 100 to 51200 (Extended: 100 to 102400)

Shutter Speed Mechanical Shutter

1/8000 to 30 Seconds

Electronic Front Curtain Shutter

1/8000 to 30 Seconds

Electronic Shutter

1/8000 to 0.5 Seconds

Metering Method Center-Weighted Average, Evaluative, Partial, Spot

Exposure Modes Aperture Priority, Manual, Program, Shutter Priority

Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)

Metering Range -3 to 20 EV

White Balance Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten

Continuous Shooting Mechanical Shutter

Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)

Electronic Shutter

Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)

Interval Recording Yes

Self-Timer 2/10-Second Delay

Video

Recording Modes Raw 12-Bit

DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [2600 Mb/s]

H.265 4:2:2 10-Bit

DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [680 to 1300 Mb/s]

UHD 8K (7680 x 4320) at 23.976p/25p/29.97p [680 to 1300 Mb/s]

DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/59.94p/100p/119.88p [170 to 1880 Mb/s]

UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [170 to 1880 Mb/s]

Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [28 to 230 Mb/s]

H.264 4:2:0 8-Bit

DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [470 to 1300 Mb/s]

UHD 8K (7680 x 4320) at 23.976p/25p/29.97p [470 to 1300 Mb/s]

DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s]

UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s]

Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [12 to 180 Mb/s]

External Recording Modes 4:2:2 10-Bit

DCI 4K (4096 x 2160) up to 59.94p

UHD 4K (3840 x 2160) up to 59.94p

Recording Limit Up to 29 Minutes, 59 Seconds

Video Encoding NTSC/PAL

Audio Recording Built-In Microphone (Stereo)

External Microphone Input

Audio File Format AAC, Linear PCM

Focus

Focus Type Auto and Manual Focus

Focus Mode Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)

Autofocus Points Phase Detection: 1053

Autofocus Sensitivity -6 to +20 EV

Viewfinder and Monitor

Viewfinder Type Electronic (OLED)

Viewfinder Size 0.5"

Viewfinder Resolution 5,760,000 Dot

Viewfinder Eye Point 23 mm

Viewfinder Coverage 100%

Viewfinder Magnification Approx. 0.76x

Diopter Adjustment -4 to +2

Monitor Size 3.2"

Monitor Resolution 2,100,000 Dot

Monitor Type Free-Angle Tilting Touchscreen LCD

Flash

Built-In Flash No

Maximum Sync Speed 1/250 Second

Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)

Dedicated Flash System eTTL

External Flash Connection Hot Shoe

Interface

Memory Card Slot Slot 1: CFexpress Type B

Slot 2: SD/SDHC/SDXC (UHS-II)

Connectivity USB Type-C (USB 3.1), HDMI D (Micro), 3.5mm Headphone, 3.5mm Microphone

Wireless Wi-Fi

Bluetooth

GPS No

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

Operating Humidity 0 to 85%

Physical

Battery 1 x LP-E6NH Rechargeable Lithium-Ion

Dimensions (W x H x D) 5.43 x 3.84 x 3.46" / 138 x 97.5 x 88 mm

Weight 1.62 lb / 738 g (Body with Battery and Memory)
