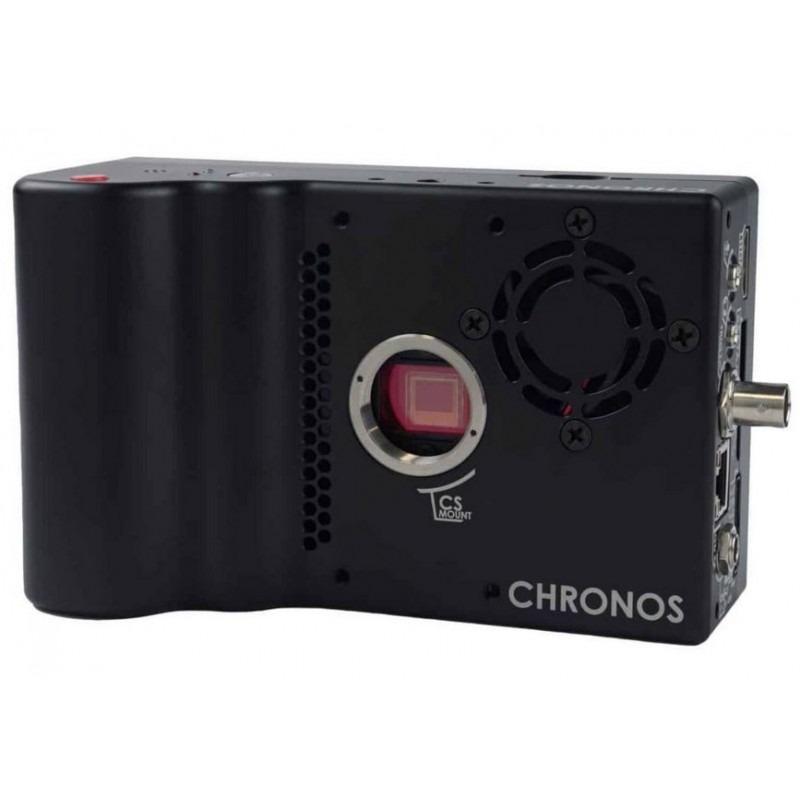

Kron Technologies Chronos 1.4 8GB

Introducing the Chronos 1.4, a handheld high-speed camera with a remarkable 1.4 gigapixel-per-second capability. Tailored for research, development, engineering, and manufacturing tasks requiring high frame rates without demanding the utmost resolution, our 1.4 model stands out. Compared to the Chronos 2.1-HD, it offers exceptional high frame rates at lower resolutions, making it an ideal choice for projects with tighter budgets.

Compact and self-contained, the Chronos 1.4 allows you to capture high-speed imagery anywhere. It effortlessly records 1280×1024 video at 1069fps, with the flexibility to achieve up to an impressive 40,413fps at reduced resolutions. Video footage can be stored in compressed h.264 or uncompressed RAW format on removable media, enabling hours of continuous shooting and the preservation of hundreds of shots on a single card.

Featuring a 1.3-megapixel image sensor delivering 1.4Gpx/s, the Chronos 1.4 captures stunning imagery at 1280×1024 @ 1069fps and up to 40,413fps at lower resolutions. Available in both color and monochrome variants, the monochrome option boasts higher effective resolution and twice the sensitivity compared to color.

Benefiting from a high sensitivity range of ISO 320-5120 (Color) and 740-11,840 (Monochrome), the Chronos 1.4 excels in capturing footage even in modest lighting conditions.

For detailed specifications, please refer to the Chronos 1.4 User Manual or Datasheet. Additional resources, including the 3D model and software information, can be found on the Resource Page and forum, respectively.

Package includes:

• Chronos 1.4 camera (8GB)
• Battery
• Power supply (19V 40W, universal input)
• Power cord (with location-appropriate plug)
• CS to C mount lens adapter
• Quick start guide
• 32GB SD Card for saving video

Specification

Weight: 2.5 kg

RAM: 8GB

Image Sensor: Color, Monochrome

Lens: No lens

1280x1024 1057fps CMOS image sensor with 1.4Gpx/s throughput

Higher frame rates at lower resolution (refer to the table below)

Sensor dimensions: 8.45 x 6.76mm, 6.6um pixel pitch

Global shutter eliminates the "jello" effect during high-motion scenes

Electronic shutter range from 1/fps down to 2us (1/500,000 s)

Support for CS and C mount lenses

Features focus peaking (focus assist) and zebra exposure indicator

Sensitivity: ISO 320-5120 (Color), 740-11840 (Monochrome)

5" 800x480 touchscreen with multitouch, capacitive technology

Enclosed in a machined aluminum case for durability

Record time: 4s (8GB) or 8s (16GB)

Continuous operation on AC adapter (17-22V 40W)

75h runtime with user-replaceable EN-EL4a battery

Supports Gigabit ethernet remote control and video download*

Audio IO and internal microphone for sound recording*

HDMI video output for display*

Two-channel 1Msa/s waveform capture*

Storage options include SD card, two USB host ports (for flash drives/hard drives), and eSATA 3G

Trigger options: TTL, switch closure, image change*, sound*, accelerometer*

Equipped with a low-noise variable-speed fan for indefinite operation without overheating
