Baudouin 6M11G150 Power Generator - 154 kVA/123 kW in Canopy (2021)

Baudouin 6M11G150 Power Generator with Canopy - 154 kVA / 123 kW (2021 Model)

Delivery Time: 2-3 weeks (FCA Sulejówek)

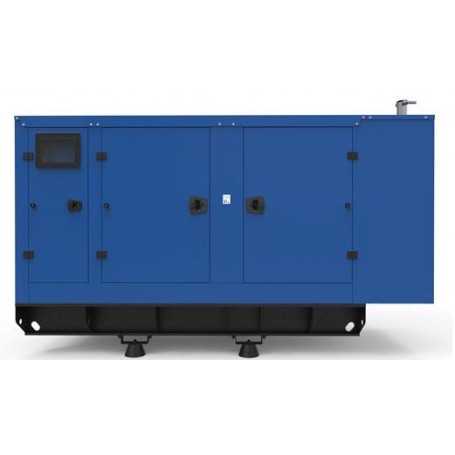

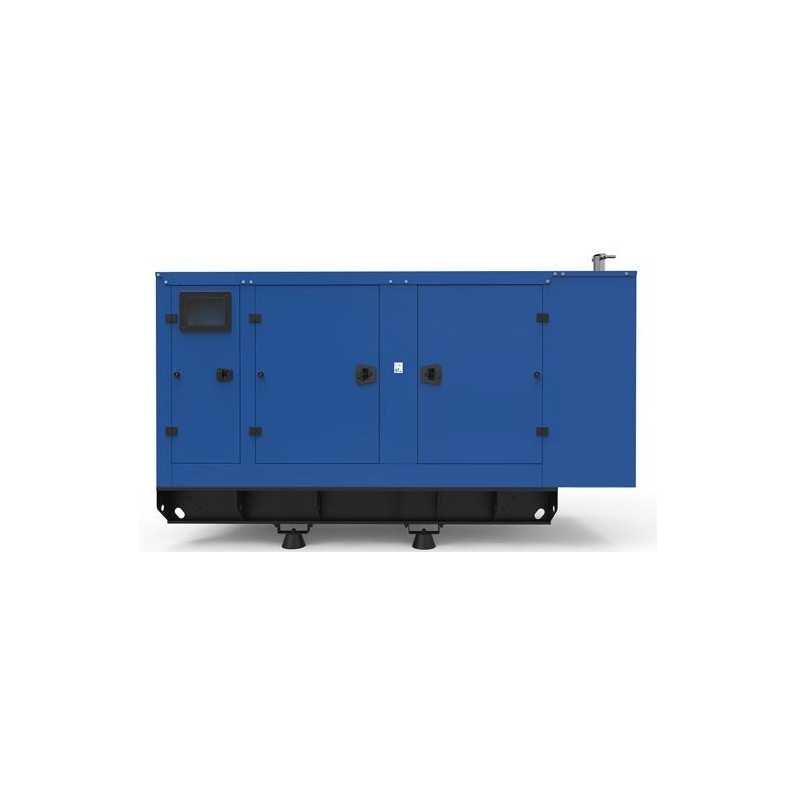

The Baudouin 6M11G150 power generator is a robust and reliable solution for your energy needs. Designed to deliver 154 kVA / 123 kW, this generator is housed in a protective canopy, making it suitable for a variety of applications. Below are key technical specifications and features:

Specifications:

• Bore & Stroke: 105 x 130 mm
• Displacement: 6.75 liters
• Number of Cylinders: 6
• Cylinder Arrangement: In-line
• Fuel System: Mechanical
• Governor Type: Electronic
• Aspiration: Turbocharged & air-to-air cooled

Standard Equipment:

Engine and Block:

• Cast iron gantry type structure block
• One-piece forged crankshaft
• Separate cast iron cylinder heads and wet liners
• Aluminum alloy pistons with oil cooling gallery

Cooling System:

• Radiator and hoses supplied directly mounted on the engine
• Thermostatically-controlled system with belt-driven coolant pump and pusher fan

Lubrication System:

• Flat bottom large capacity oil pan
• Spin-on full-flow lube oil filter

Fuel System:

• P type fuel injection pump and injector for higher injection pressure
• Duplex fine filter for better efficiency

Air Intake and Exhaust System:

• Mid-position and below inlet turbocharger optimized for genset application
• Special rear mounted air filter with restriction indicator
• Exhaust manifold shield for heat isolation

Electrical System:

• 12 Vdc electric starter motor and battery charging alternator for 1500 Rpm engines
• 24 Vdc electric starter motor and battery charging alternator for 1800 Rpm engines
• LOP + HWT sensors

Flywheel and Housing:

• SAE 3 flywheel housing and 11.5” flywheel for 1500 Rpm
• SAE 1 flywheel housing and 14” flywheel for 1800 Rpm

Ratings Definitions:

Emergency Standby Power (ESP):

Provides maximum power for varying loads during main power network failure. Average load factor over 24 hours should not exceed 70% of the engine’s ESP power rating, with a typical operational limit of 200 hours per year and a maximum of 500 hours annually. No overload capability is allowed.

Continuous Power (COP):

The generator delivers maximum power for unlimited periods at a constant load factor, with no overload capability.

Prime Rated Power (PRP):

The generator provides maximum power for unlimited hours in variable load applications, with an average load factor not exceeding 70% during any 24-hour period. An overload capability of 10% is available, limited to 1 hour every 12-hour period.
