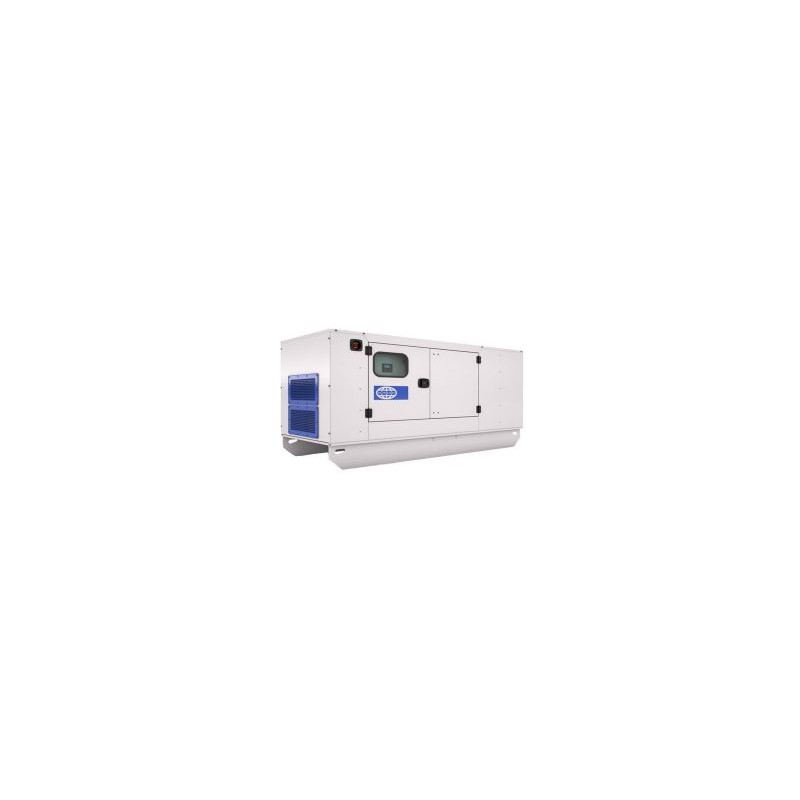

FG Wilson Diesel Power Generator P135, 108 kW - 120 kW with Housing

Output Ratings

Generating Set Model P135

380-415V, 50 Hz - 135.0 kVA, 108.0 kW

Technical Data

Engine Make & Model: Perkins 1006TAG

Alternator Model: LL3014F

No. of Cylinders/Alignment: 6 / In Line

Displacement: litres (cu.in) 6.0 (365.5)

Bore/Stroke: mm (in) 100.0 (3.9)/127.0 (5.0)

Compression Ratio: 17.0:1

Induction: Turbocharged Air To Air Charge Cooled

Frequency 50 Hz

Engine Speed: 1500 RPM

Gross Engine Power: kW (hp) 145.8 (196.0)

BMEP: kPa (psi) 1949.0 (282.7)

Piston Speed: m/sec (ft/sec) 6.4 (20.8)

Fuel Tank Capacity: litres (US gal) 290 (76.6)

Fuel Consump, 31.2 (8.2)

Heat Rejected to Exhaust System: kW (Btu/min) 131.3 (7467)

Heat Rejected to Water & Lube Oil: kW (Btu/min) 72.9 (4146)

Heat Radiation to Room: kW (Btu/min) 39.1 (2224)

Exhaust Gas Temperature: °C (°F) 570 (1059)

Radiator Cooling Air Flow: m³/min (cfm) Cooling system designed to operate in ambient conditions up to 50°C (122°F)* - 192.0 (6780)

Combustion Air Flow: m³/min (cfm) 9.8 (346)

Exhaust Gas Flow: m³/min (cfm) 28.2 (996)

Dimensions and Weights

Length: mm (in) 2675 (105.3)

Width: mm (in) 900 (35.4)

Height: mm (in) 1460 (57.5)

Dry: kg (lb) 1460 (3219)

Wet: kg (lb) 1480 (3263)
