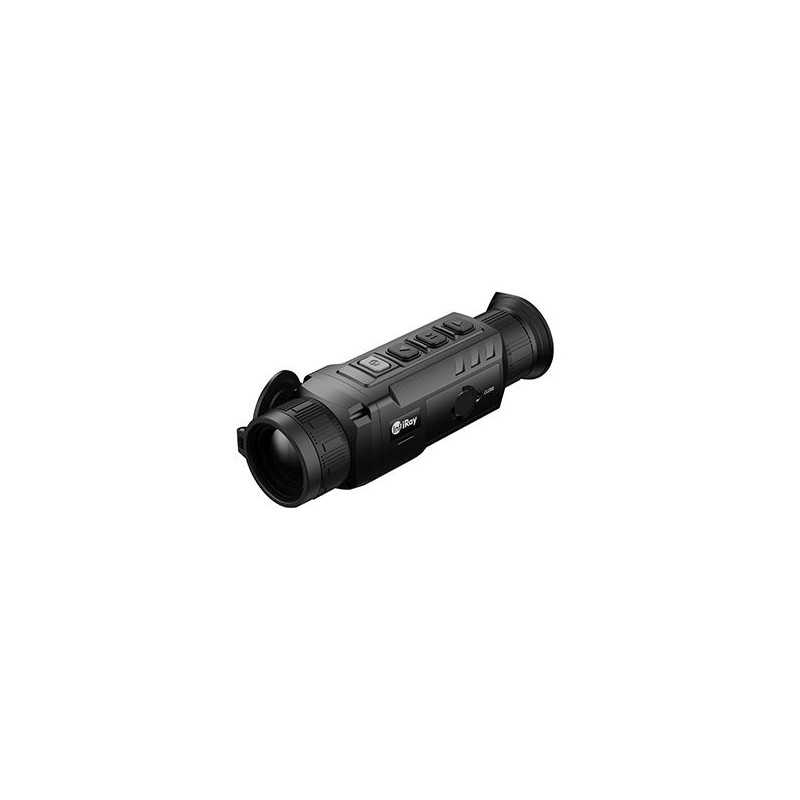

Infiray Zoom ZH38 Thermal Imaging Monocular

World first: Dual-Field-System with 1.6x - 3.2x optical zoom

The ZH38 is a high-end thermal imaging monocular for outdoor. It has three “FIRSTS” in the industry, those are dual field of view (FOV), 1440×1080 high display resolution and shutterless technology. While maintaining the advantages of clear images, the ZH38 also has a variety of diversified color options, PIP, digital zoom, hot spot tracking, probability rangefinding and other functions. It could be extensively used for night hunting, observation and terrain positioning, search and rescue, etc.

The First Dual Field of View Design

The first breakthrough innovation is our “zoom as you wish” function. Using the unique dual FOV and 2× optical zoom, the user can quickly switch the dual FOV manually, a larger FOV with a focal length of 19mm is used for target search while a smaller FOV with a focal length of 38mm for target identification. Meet the need to see far, accurately and clearly.

1440×1080 High Display Resolution

The ZH38 has a built-in full-color high-definition display with a resolution of up to 1440×1080, coupled with the 20 times magnification eyepiece, and supports ×1/×2/×3/×4 electronic zoom for clearer and more comfortable observation, which greatly improves the human eye observation experience.

Shutterless Function

The Shutterless core module is adopted to nullify the shutter calibration, simplify the operation, and lower the energy consumption, making the imaging quieter and linear.

High Image Quality with NETD ≤25mK

The imaging effect of ZOOM series can withstand the test as always, ZH38 is equipped with uncooled Vox 12μm 640×512 high resolution sensor featuring NETD ≤25mk (25 °C, F#=1.0). And with ultra clear function, your adventures will never again be stopped by even the worst weather conditions. Better image quality is provided with the powerful sensor and image algorithms, which will bring you a different clear outdoor experience.

10 Hours × 2 Batteries

The ZOOM series uses low-power components, lower power consumption, with a replaceable 4400mAh large-capacity lithium battery pack, battery life up to 10 hours, additional battery pack as standard, battery life up to 20 hours, to achieve long-term outdoor operation worry-free

Model ZH38

Detector Resolution 640×512

Pixel Pitch, μm 12

NETD, mK ≤ 25

Frame Rate, Hz 50

Objective Lens, mm 19/38

Magnification, × 1.6 ~   12.8

Digital Zoom 1×/2×/3×/4×

Eye Relief, mm 20

Distance 987/1974

Exit Pupil Diameter, mm 5.5

Display Resolution 1440×1080   FHD OLED

Display Size, inch 0.4

Battery Lithium-ion battery pack IBP-1/4400mAh/DC3.7V

Max. Battery Life, h 10   hours × 2 batteries

Amount of built-in memory, GB 32

Operating temperature, ℃ -20 ~   +50

Weight, g 580

Dimension, mm 190×65×60
