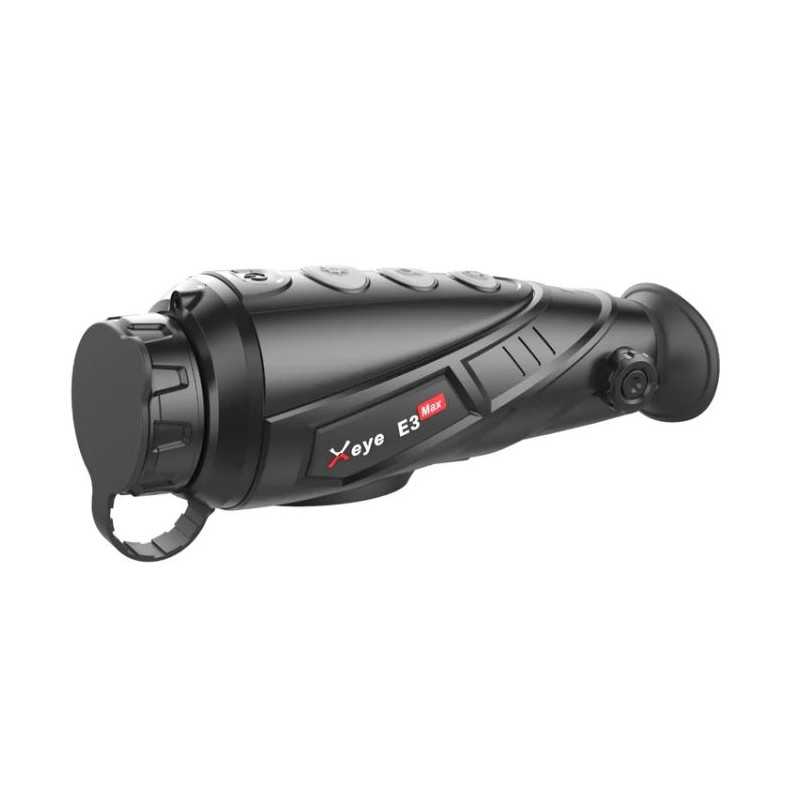

Infiray E3 Max V2 Thermal Imaging Monocular

Meet Eye Ⅱ Series V2.0

With 12μm detector, lower power consumption and multifunctional operations enhance and record the excellent moment of your outdoor activities. Lighter and longer.

Pocket-Sized Thermal Vision Monocular

The InfiRay EYE Ⅱ series is a pocket-sized thermal vision monocular for exploring the outdoors—at night and in lowlight conditions. EYE Ⅱ reveals your surroundings and helps you see people, objects and animals over one thousand meters away. Simple to use, with still image and video recording, EYE Ⅱ is the perfect companion, whether in the back country or your own backyard.

High Image Quality

The EyeⅡ series are embedded with IRay independently developed high performance Vox detector which allows you to get high detailed thermal images, it will be much simpler to search targets in darkness.  There are two kinds of detector resolutions for options: 384*288 & 640*512. The EyeⅡ series has excellent performance in critical temperature range.

12μm Ceramic Detector

The V2.0 series is equiped with new ceramic encapsulated detector, which are lighter, lower power consumption and last longer.

HD Micro Display

1280×960 high resolution display that offers crisp image and vivid colors.

Long Detection Range

Depending on model, the V2.0 series is capable of detecting an average human-size target, dressed in outerwear, at a range up to 2600m in complete darkness.

Standby Function

When it is necessary to temporarily stop observation the user can apply standby function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).

High Image Frequency

And the 50Hz refresh rate guarantees you to capture every moment that you are interested.

PIP Functions

Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to zoom in on a target while retaining the rest of the field of view visible.

5 Color Palettes

The Eye II series provides more than 5 color palettes for true colorized temperature mapping, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.

Stadiametric Rangefinder

Based on estimated heights of targets user can get the rough distance from the target with the build-in stadiametric rangefinder fast and easy.

Hot Target Tracking

Track the hottest spot in the scene automatically and discover the target quickly.

Built-in Video Recorder and WiFi Connection

The monocular has 16 GB build-in memory to store the captured still images and video recording and WiFi module which allows 4 connections simultaneously.

Model E3 Max V2.0

Resolution, pixels 384x288 384x288

Pixel Size, μm 12

NETD, mk ≤40

Frame Rate, Hz 50

Objective Lens, mm 35

Field of View 7.5°×5.7°

Display 1280x960 LCOS

Optical Magnification, x 3.5-14.0

Digital Zoom, x 2x - 4x 2x - 4x

Max. Battery Life, h 7

Built in Memory (gb) 16

Dimension, mm 185x65x64

Weight, g <420

Detection Range, m 1818

(Target size:1.7m×0.5m,P(n)=99%)
