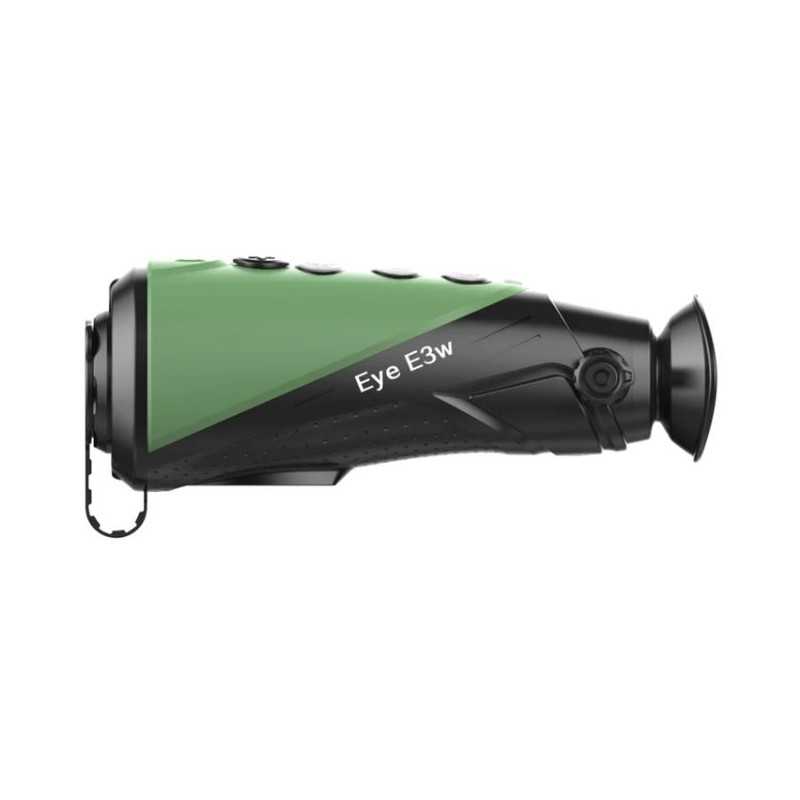

Infiray Eye Series V2.0 E3W - Thermal Imaging Monocular

Discover the Infiray Eye Series V2.0 E3W Thermal Imaging Monocular, crafted for superior night vision. This compact and lightweight device combines elegant design with user-friendly features, ensuring comfort and ease of use. Perfect for those who need reliable, clear imaging in low-light conditions, the Eye Series stands out with its exceptional thermal imaging capabilities. Elevate your nighttime adventures with the Infiray E3W and never miss a moment in the dark.
5294.17 AED
Tax included

4304.21 AED net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

InfiRay Eye Series V2.0 E3W - High-Performance Thermal Imaging Monocular

High Image Quality

The InfiRay Eye Series V2.0 E3W is equipped with a high-performance VOx detector developed by IRay, delivering detailed thermal images. Its advanced software algorithms enhance imaging clarity, providing a sharper, more detailed field of view and improved object identification capabilities, making target searching in darkness simpler.

Sufficient Operation Time

Designed with low power consumption in mind, the Eye Series ensures up to 20 hours of operational battery life, so you can focus on your activities without worrying about power supply.

Pocket-Sized Thermal Vision Monocular

Lightweight and portable, the InfiRay Eye Series is perfect for outdoor exploration in low-light and nighttime conditions. Easily detect people, objects, and animals from hundreds of meters away. Weighing less than 320g, it offers both still image and video recording capabilities, making it ideal for various outdoor adventures.

High Frame Rate

With a 50Hz frame rate, capture every moment with smooth and crystal-clear views, ensuring excellent observation for all your outdoor experiences.

12μm Thermal Imaging Sensor

The Eye V2 series offers diverse models with various pixel sizes (12μm/17μm), detector resolutions, and lens focal lengths, catering to a wide range of user needs.

Standby Function

Use the standby function for temporary observation pauses. It maintains camouflage by eliminating display light while allowing for a quick restart of the device.

5 Color Palettes

  • White Hot
  • Black Hot
  • Red Hot
  • Pseudo
  • Hot Target Highlight

Switch between palettes easily to achieve true color temperature mapping and highlight high-temperature targets.

Picture-in-Picture Function

Enhance accuracy with the Picture-in-Picture feature, providing a 2x magnified image of the reticle area while keeping the field of view visible.

Built-in Video Recorder and WiFi Connection

The E3W model offers 16GB of memory, supporting over 40,000 photos or 24 hours of continuous video recording. The built-in WiFi module allows up to 4 simultaneous connections, ensuring you never miss a moment.

Specifications

  • Model: E3W
  • Detector Resolution: 384x288
  • Pixel Size: 17μm
  • NETD: ≤40mk
  • Frame Rate: 50Hz
  • Objective Lens: 19mm
  • Field of View: 19.5°x14.7°
  • Display Resolution: 720*540
  • E-zoom: x2, x4
  • Max. Battery Life: 7 hours
  • Dimensions (mm): 160×62×62
  • Weight: <320g
  • Detection Range: 696m (Target size: 1.7m×0.5m, P(n)=99%)
  • WIFI: Supported
  • Storage: 16GB

Data sheet

42RTDVDQJE
