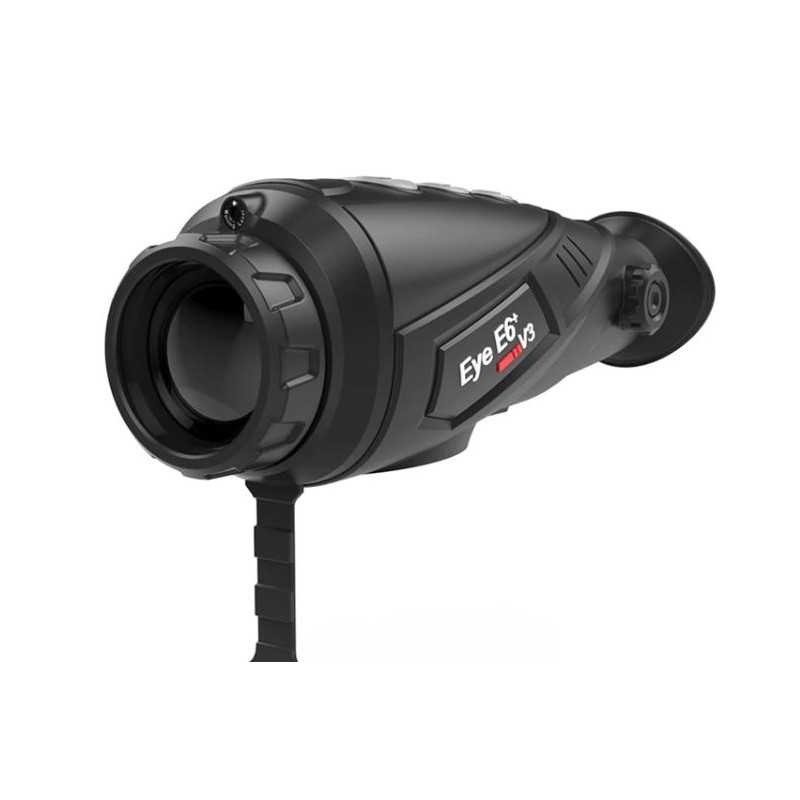

Infiray E6+ V3 - Thermal Imaging Monocular

Eye Ⅱ Series V3 is a powerful, compact and cost-effective thermal imaging monocular which adopts a 12μm 640*512 resolution thermal sensor with sensorNETD≤25mK ( @25°C,F#=1.0)and a high contrast HD OLED display, within innovative improvement in thermal imaging quality and multifunctional features, brings you great technical superiority and experience in thermal imaging.

BETTER SENSOR, CLEARER IMAGING

Pocket-Sized Thermal Vision Monocular

The InfiRay EYEⅡV3 series is a pocket-sized thermal vision monocular with≤500g for exploring the outdoors. It helps to reveals your surroundings and see targets over 2000 meters away with ease. Simple to use, low learning cost. EYEⅡV3 is the perfect companion for thermal imaging hunting or outdoor journey, whether in the darkness or your own backyard.

12um Thermal Sensor with NETD≤25mK ( @25°C,F#=1.0)

The V3 series is equipped with InfiRay high-performance ceramic encapsulated 12um 640*512 high resolution sensor featuringNETD ≤25mk (25°C,F#=1.0),which is lighter, lower power consumption, ensures perfect detailed recognition even in the hardest weather conditions when thermal contrast is low.

High Image Quality

The EyeⅡ V3 series allows you to receive technical superiority onthermal imaging with rich details, it will be much simpler to search targets in darkness.  The EyeⅡ series has excellent performance in temperature range.

Built-in Ultra clear Mode

The built-in Ultra-clear mode thermal technology of InfiRay is comprised of software algorithms designed for inclement weathers such as rainy, snowy, foggy days, etc., increase thermal imaging clarity and overall details. Ultra-clear mode can result in a more detailed field of view and enhanced object identification capabilities.

High Contrast HD OLED Micro Display

Embedded with a 1024*768 display resolution high contrast OLED display, Eye II V3 series offers more color rendering and higher response rate, can output crisper images and more vivid colors on the imaging.

Hue Selections

To better meet the users’ different demands of visual experience, the products supply two hue selections for users: C(cool) hue and W(warm) hue.

Under cool hue, users can experience visually clearer imaging quality with rich details, highlight targets.

Under warm hue, the users can get softer imaging avoiding visual fatigue brought by long time viewing.

Long Detection Range up to 2597 meters

Combined the powerful objective lens (E6+V3: 35mm/F1.0 VS E6Pro V3: 50mm/F1.2) with a 640x480@12µm highly-sensitive thermal imaging sensor, Eye II V3 series provides exceptional detecting capabilities. Depending on model, the V3.0 series is capable of detecting an average human-size target, dressed in outerwear, at the maximized range up to 2597m in complete darkness.

PIP Functions

Built-in Picture-in-Picture function of EYEII V3 improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps users to zoom in on the targets while retaining the rest of the field of view visible.

5 Practical Color Palettes

5 color palettes are provided, besides normal “white hot”, “black hot”, “red hot” and “color”, we have developed “hot target highlight” palette. Under this palette users can find the target easily through the high contrast between the background and target. Track the hottest spot in the scene automatically and discover the target quickly.

Built-in Video Recorder and WiFi Connection

The monocular has 32 GB build-in memory to store the captured still images and video recording and Wi-Fi module which allows 4 connecting devices simultaneously.

Model E6 PLUS V3.0

Resolution, pixels 640x512

Pixel Size, μm 12

NETD, mk ≤25

Frame Rate, Hz 50

Objective Lens, mm 35

Field of View 12.5°×10.0°

Display 1280x768 OLED

Optical Magnificatio , x 2.0

Digital Zoom x 1x / 2x / 4x

Max. Battery Life h 6

Built in Memory (gb) 32

Dimension, mm 188x65x64

Weight, g <420

Detection Range, m 1818

(Target size:1.7m×0.5m,P(n)=99%)
