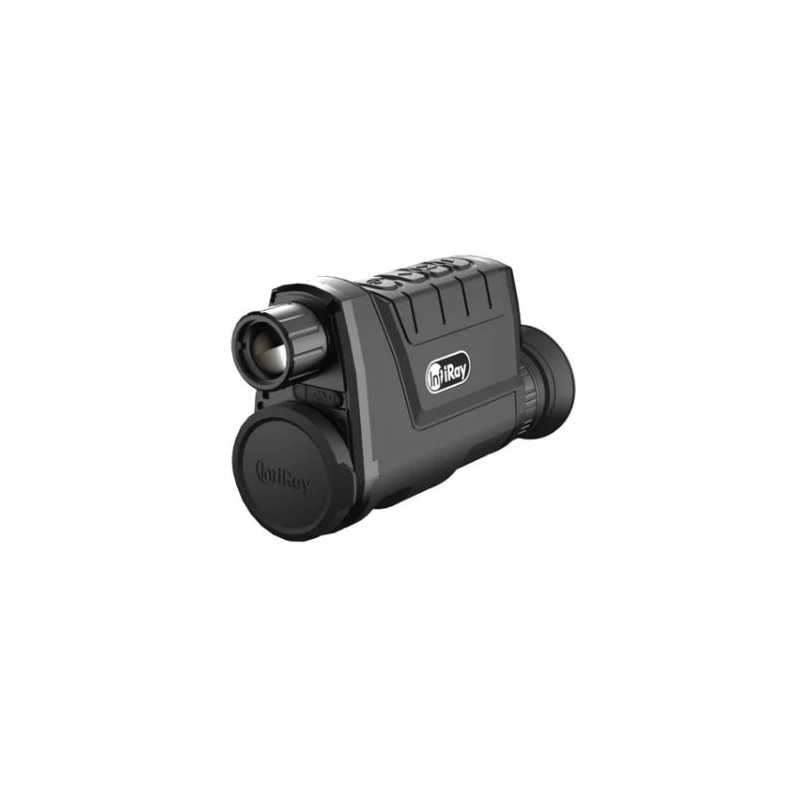

Infiray Cabin Series CBL19 Thermal Imaging Monocular
1608.36 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
Powerful Core, HD Images
High Image Quality
Cabin has built-in self-developed high-performance VOx (Vanadium Oxide) detectors. Equipped with high-performance electronic equipment and superior infrared optics, it can provide ultra-clear thermal images, making detection and identification easy and efficient during the day or night.
High Frame Rate‒ 50 Hz
50Hz frame rate capture every detail you are interested in.
12μm Thermal Imaging Detector
Adopt high-performance 12μm detector
HD Display1280×960
High resolution provides clear and colorful images.
Smart Functions, Easy To Use
Ultra-clear Mode
Built-in ultra-clear mode is suitable for bad weather conditions, such as fog and rain. This mode is more sensitive to show more details.
Stadiametric Rangefinder
Based on estimated heights of targets user can get the rough distance from the target with the build-in stadiametric rangefinder fast and easy.
50 Hz frame rate captures every detail you are interested in.
Picture-In-Picture Function
Provide a 2×magnified area on the top to help to magnify the target while keeping the rest of the field of view visible.
Built-in Motion Sensor and Electronic Compass
Built-in motion sensor and electronic compass accurately identify the angle and inclination.
Superior Tools, Born For Outdoor
Strong light variable-focus light
Cabin is equipped with imported 3w LED lamp beads, and has the function of two-gear switching and zooming. The irradiation distance can reach 50 m, providing you with necessary lighting for search and rescue.
Replaceable battery pack
3100mAh
Cabin is equipped with a 3.6V, 3100 mAh large-capacity battery pack, which can work continuously for 7.5 hours.The battery can be quickly removed and inserted in a few seconds, providing an ideal battery solution.
Quick focusing knob
Cabin uses the focusing knob to adjust the focus within a range of 100°, allowing you to see the target more quickly.
Sensor: iRay VOx 384x288 pixels 12 μm
Lens: 19mm Germanium
Frame rate: 50 Hz
Display, resolution: LCOS 1280 x 960 pixels
Range, detection: Up to 1350m
Field of view of 100m: 24.2mx 18.2m
Digital zoom: 2-8X
Built-in memory: 16GB
Interface: USB-C (video out, external power supply)
Weather protection: IP66
Operating temperature: -20 to + 50 ° C
Power supply: Li-ion battery pack IBP-2, 3.1Ah / 3.6V
Size: 165 x 50 x 85 mm
Weight: 380g without battery
Data sheet
