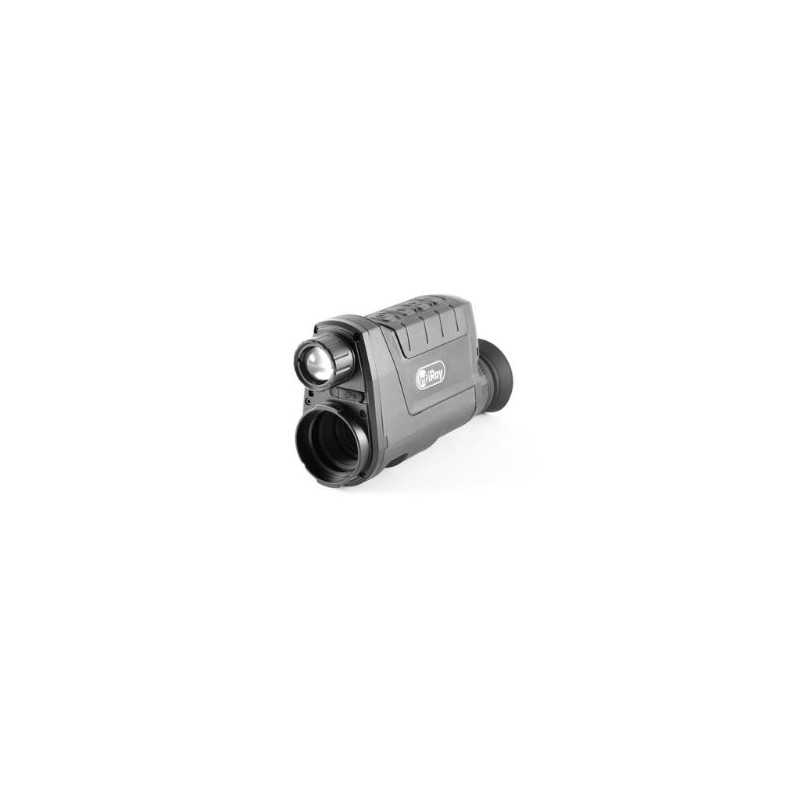

Infiray Cabin Series CBL25 Thermal Imaging Monocular

The CABIN is available with multiple lens options and its 50Hz 12 μm Micro II sensor featuring InfiRay’s next generation MATRIX III processing ensures an unmatched viewing experience on it’s HD display. Standard features of the Cabin Series include a quick focus F/1.0 lens, stadiametric rangefinder, image and video capture, wireless connectivity, picture in-picture and an LED flashlight to guarantee you have everything you’ll need in the palm of your hand.

Environmental Specifications

Ingress Protection IP67

Operating Temperature Range -4°F-122°F

Features & Performance

Color Palettes White Hot, Black Hot, Red Hot, Color, Highlight

Onboard Recording Video and Image

Wifi Yes

Power Source Li-Ion Battery Pack (IBP-2), External USB-C

Startup Tim 10 Seconds, Instant from Standby

Warranty 5 Years

Run Time 6 hours on Li-Ion Battery Pack

Image Capture Yes

Connector Type USB-C

Optics

Objective Focal Length 25mm f/1.0

Optical Magnification 2.5X

Digital Magnification 4X, stepped

Detection Range 1375 Yards

Display Type LCOS

Display Resolution 1280×960

Eye Relief 20mm

Diopter Range -5 - +5

Objective F# 1.0

Horizontal Angular Field of View 10.5°

Vertical Angular Field of View 7.9°

Objective Lens Material Germanium

Focusing Mechanism Manual Focus

Physical

Housing Material ABS

Weight 14.22 Oz

Sensor Specifications

Sensor Resolution 384×288

Sensor Pixel Size 12μm

Sensor Frame Rate 50hz

Sensor Type InfiRay MICRO II

Thermal Sensitivity <50mk

Non-Uniformity Correction (NUC) Manual, Automatic, Semi-Automatic

Spectral Response 8-12 Microns

Device Technology Thermal Imaging
