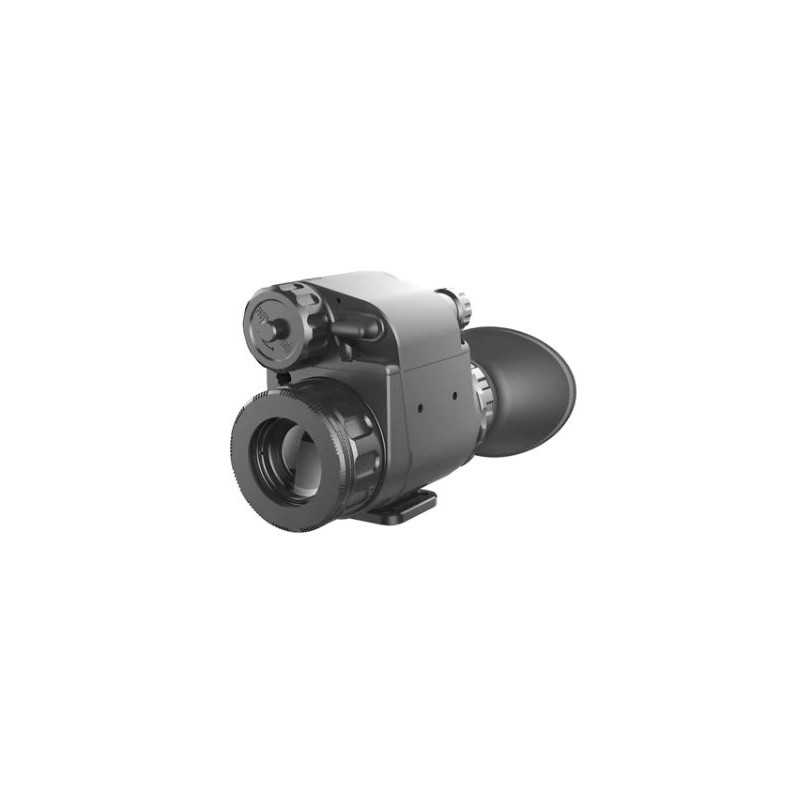

Infiray Mini ML19 - Thermal Imaging Monocular

Thermal Imaging Scope Mini Series

The InfiRay Mini Series is the smallest fully multi-functional 12 micron thermal imaging monocular on the market. It can be used as a handheld monocular or helmet mounted monocular. The Mini Series features Bluetooth, picture-in-picture, and compatibility with rechargeable 16650 batteries as well as external power supply.

Meet the Mini Series

The Mini Series Thermal Helmet Mountable Monocular is one of the smallest, fully multi-functional thermal imaging monocular currently on the market. Its remarkably compact size ensures that it can be concealed in a shirt pocket or mounted to a helmet with its mini rail feature.

High Image Quality

The advanced image processing of the IRay detector, high performance electronics and optimized infrared optics create excellent image clarity and provide better detection and classification, day or night.

12um Thermal Imaging Sensor

High performance 12μm & 17μm pixel Pitch detectors are embedded in the compact body.

HD Micro Display

1280×960 high resolution internal display offers crisp image and vivid colors.

High Image Frequency

The 50Hz refresh rate guarantee you to capture every moment that you are interested.

Friendly Operation

All functions of mini series can be controlled by one key, which makes the operations easily and quickly.

Flexible Mounting Options

For hands-free operation, Mini has multiple mounting points designed to allow for a wide variety of dovetail helmet mounts, and to install additional equipment. What is more, the image flipped automatically ensures the right image by different mounts.

The MH25 is operated by an intuitive clearly labeled menu and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.

Power Supply Options

Using the included battery extender the Mini is compatible with CR123A, CR123, 16340, and 16650 batteries. Using 1 16650 the Mini will run for 3 hours, and using the included power cable with a 10,000 mah USB battery the Mini will run for 18 hours.

Stadiametric Rangefinder

Based on estimated heights of targets user can get the rough distance from the target with the build-in stadiametric rangefinder fast and easy.

PIP Function

Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to zoom in on a target while retaining the rest of the field of view visible.

Inclinometer and Digital Compass

Mini series has Great situational awareness with integrated object orientation.

Wireless Remote Control

Wireless remote controller makes the Mini be more convenient when being helmet mounted.

Model MH25

Resolution 640x512

Pixel Sze 12um

NETD ≤40mk

Frame Rate 50Hz

Objective Lens 25mm

Field of View 17.5°×14.0°

Eye relief 15mm

Eye Pupil Diameter 5mm

Diopter adjustment -4D～+5D

Magnification 1.0-8.0x

Display 1280×960

Battery 16340/16650

Max. Battery Life 16340-up to 1.5hr 16650-up to 3hr

Weight <245g

Dimension 128x70x45mm

Detection Range 1298m

(Target size:1.7m×0.5m,P(n)=99%)
