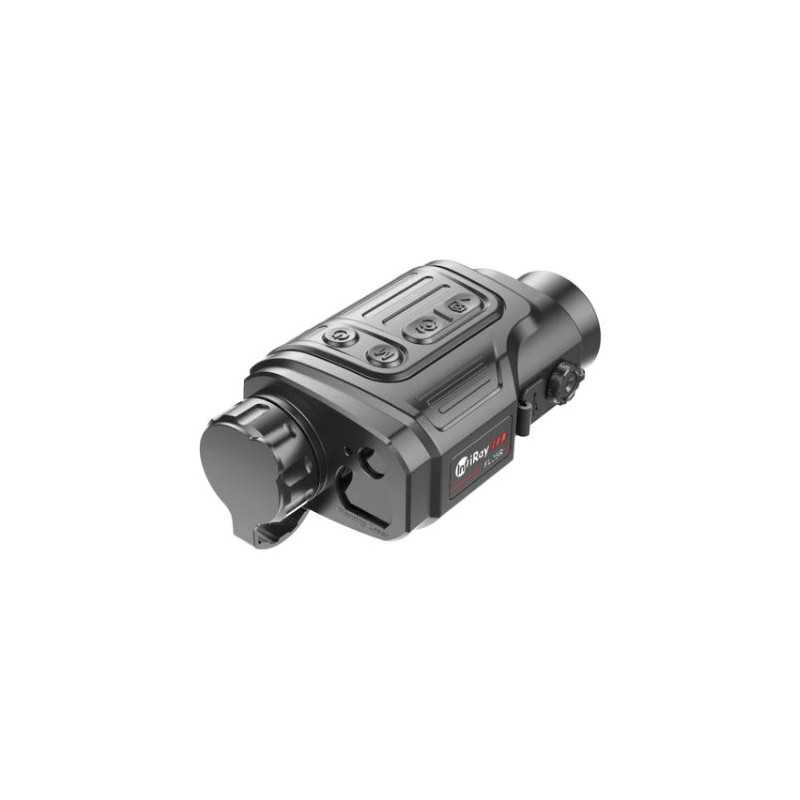

Infiray Finder FL25R Thermal Imaging Monocular

Introducing the InfiRay Finder FL25R Thermal Imaging Monocular - a high-performance device designed for ultimate nighttime adventures. Boasting a crisp 384x288 resolution on its 12µm Ceramic VOx sensor, this monocular delivers stunningly clear images at a rapid 50Hz frame rate. Equipped with a 25mm manual lens and an impressive 1280x960 display, the FL25R ensures optimal viewing in low-light conditions. Conveniently connect and share your experiences with built-in Wi-Fi capabilities, while easily storing captured images and videos on the 16GB internal storage. The integrated laser rangefinder offers precise distance measurements, making this monocular the perfect companion for wildlife enthusiasts, security personnel, and outdoor explorers.

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Thermal Imaging Scope Finder Series

The Finder series products are light and easy to carry, especially suitable for one-handed operation that can be put in a pocket anytime and anywhere. The compact design and built-in laser rangerfinder makes the Finder the best choice for outdoor investigation.

Meet Finder Series

The Finder series products are light and easy to carry, especially suitable for one-handed operation  that can be put in a pocket anytime and anywhere. The compact design makes the Finder the best  choice for outdoor investigation.

High Image Quality

The advanced image processing ability of the InfiRay detector,  which has high performance electronics and optimized  infrared optics, creates excellent image clarity and provides  better detection and classification, both in day and night.

12 µm Thermal Imaging Sensor

High performance 12 μm pixel pitch  detectors are embedded. Powerful objective lens in combination with a 12 µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,7 m (5.58 ft) tall object can be detected at a 1300 m (1420 yds) distance in complete darkness.

Long Detection Range 1298 m

The powerful objective lens combined with a 12 μm  professional grade thermal imaging sensor provides  exceptional detection capabilities.

High Image Frequency 50 Hz

The 50 Hz refresh rate guarantees that you will  capture every moment that you are interested in.

HD Micro Display

1280×960 high-resolution  internal display offers sharp image  and vivid colors.

Integrated Laser Rangefinder (LRF) 600m

The Finder series has a built-in laser ranging module, which helps to  quickly and accurately capture and display the target distance. The  ranging accuracy is ± 1 m and the maximum ranging distance is 600 m. Accurate distance readings help to quickly assess the size of territory, distance and relief. Integrated, precision laser rangefinder provides accurate rangefinding, it provides both single ranging and continuous ranging modes. Continuous  ranging can be quickly activated to adapt to the constantly changing  distance of the observed object.

Pocket Machine

The compact size and light weight makes it easy to  carry and operate with one hand. It can be put into  the pocket anytime and anywhere. The Finder weighs  only 320 g,which is lighter than conventional  rangefinders, but much more powerful.  Compact size of thermal imager makes it an optimal portable unit for scouting and spotting.

Infrared Sensor Switch

By sensing the reflection, the infrared sensor switch control  the display on and off automatically which saves power and extends the device's operation time. It also has the  advantage of high sensitivity, strong anti-interference ability  and stable working performance.

Built-in Video Recorder and  WiFi Connection

With built-in storage space , Finder series support to save the interesting moments in the form of photos or video for sharing with colleagues, friends and family. It can store many hours of recorded video and tens of photos.

App Supported

Built in Wi-Fi module provides connectivity of Finder with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware.

Built-in Accelerometer and  Digital Compass

Built-in accelerometer and digital compass improves  accuracy by precisely identifying cant and angles.



Model FL25R

Pixel Size, μm 12

NETD, mk ≤40

Objective Lens, mm 25

Field of View 10.5°×7.9°

Optical Magnification, x 2.5-10.0

Digital Zoom x1/x1.5/x2/x2.5/x3/x3.5/x4

Exit Pupil 20

Focusinmg range of eyepiece -4D~+5D

Display 1280x960 LCOS

Battery Type Li-ion

Replaceable Battery Type N/A

Max. Battery Life,(t=25℃),h 6*

Laser Range Finder Range m 600 +/- 1

Amount of Built in Memory gb 16

App Compatibility Support

Dimension, mm 70x52x130

Weight, (without battery) g 320

Detection Range, m 1298

(Target size:1.7m×0.5m,P(n)=99%)

* Actual operation time depends on the intensity of Wi-Fi use and the built-in video recorder.
