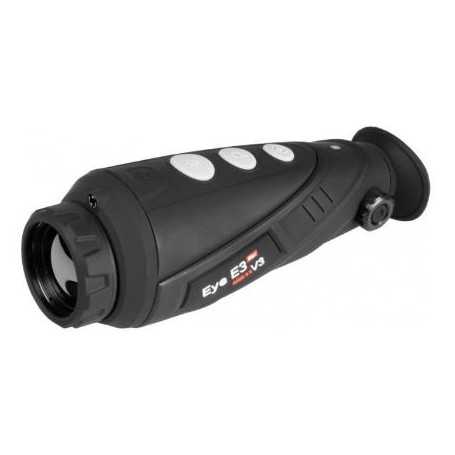

Infiray E3 Max V3 - Thermal Imaging Monocular

The thermal imaging monocular E3 Max is one of the most popular models of the iRay Eye series, so it is not surprising that the 3rd edition is now available. The main innovation is the upgrade of the display panel, it now has the latest OLED technology.

The extreme compact and ergonomic hand-held thermal device is the ideal solution for nocturnal observations in the near and far range. With a detection range of approx 1800 meters the use in the hunting area, the observation and nature observation is equally possible.

The thermal imaging sensor also solves 384 x 288 pixels on. The representation of the thermal image source can be done in detail. The display is not only very fine, it is easy to distinguish between the heat source and the environment. The sensitivity of unter also contributes to this 50 microkelvins at.

The integrated screen even solves it 1280 960 x pixels in high HD quality. The playback is razor-sharp and high-contrast. The menu navigation also benefits from the high resolution, because the letters and numbers are displayed clearly and legibly at all times.

By the 35 millimeters strong lens is a field of view of over 13 meters possible on a 100 meter long field, so the observer always has the environment in view.

The WiFi function the image of the thermal imaging camera can also be made available for up to 4 other people. Using their smartphones, the current view can be streamed live to the cell phones. The app required for this is linked below.

The internal Accumulator has an operating time of up to 7 hours. Recharging is done with the USB cable, it can also be used for a longer runtime USB power bank .

The built-in VCR With 16 gigabytes, it offers enough storage space for photo and video clips. These can then be transferred using a USB cable or Wi-Fi.

Technical data:

warranty

Connection: USB-C (data / video)

Resolution detector: 384 x 288 pixels (VOx)

Resolution monitor: 1280 x 960 pixels (OLED)

Frame Rate: 50Hz

Weight: 450 g

Dimensions: 65 x 64 x 186 mm

Objective Lens: 35mm

Pixel size: 12 µm (pitch)

Range: 1800 m (human)

Protection class: IP66

Field of view: 7,5 x 5,7 °

Field of view at 100 m: 13,10 x 9,95 m

Power supply: internal battery (7 h)

Temperature sensitivity: 50 mk (NETD)

Magnification: 3,5 x (optical)

Magnification: 1 – 4 x (digital)

VCR: Yes (16GB)

WiFi: Yes

Delivery:

InfiRay Xeye Eye E3 Max V3

lens cap

Carrying case

USB cable
