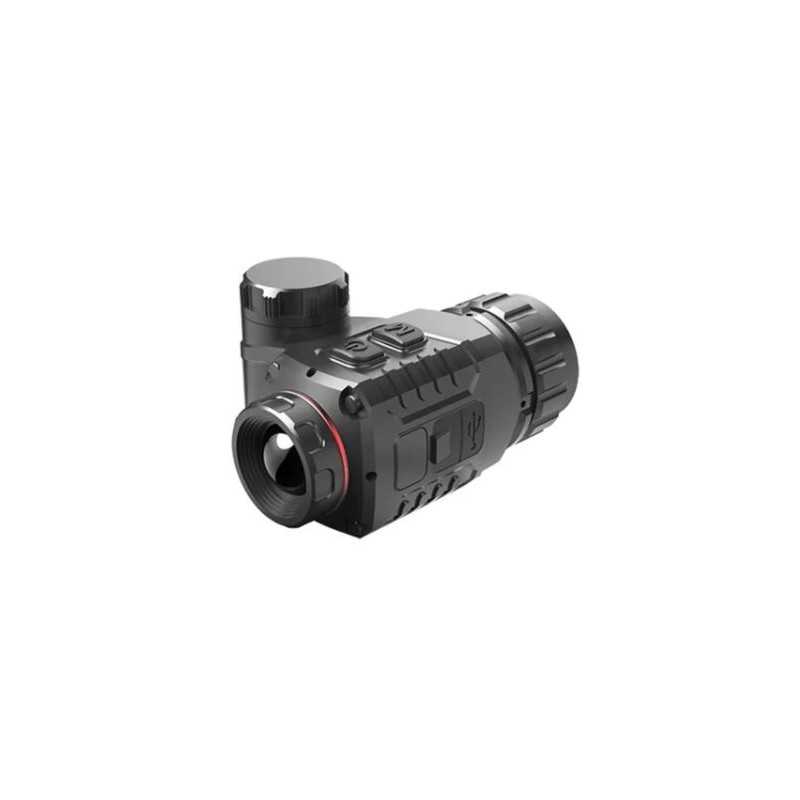

Infiray T Series CTP13 - Thermal Imaging Clip-On

Thermal Imaging Attachment Clip T Series

Clip T Series is one of the most compact and cheapest thermal imager attachment for sights on the market, which is mainly used with day riflescope and low cost, low power consumption and miniaturization.

Meet the Clip T Series

Clip T Series is one of the most compact and cheapest thermal imager attachment for sights on the market, which is mainly used with day riflescope and low cost, low power consumption  and miniaturization.

Clip on thermal scopes are truly versatile thermal imaging scopes that give you increased options and functionality. Whether you are looking to use it as a dedicated thermal scope or clipped on in front of your day optics for increased thermal imaging zoom capability, these scopes can easily accommodate your needs. Our clip on’s fit any Picatinny rail mount in seconds, and there’s no need to re-zero. So if you’re in the hunting realm, you can switch to your favorite aiming method with ease. These scopes need absolutely no light to function, so you can literally turn any day scope into a night vision scope with a simple throw lever mount. Now you can see your targets any time of day or night making it a truly robust aiming system.

Product characteristics

The most compact size  Ultra light weight

Low power consumption

IP67 waterproof

High resolution OLED display

12 μm thermal imaging sensor

Model CTP13

Detector Resolution 256x192

Pixel Size, μm 12

NETD, mk ≤40

Frame Rate, Hz 25

Objective Lens,  mm 13

Filed of View 13.5°*10.1°

Magnification × 1

Display 1024*768 OLED

Battery CR123(3.7V)×1 CR123(3.7V)×1

Power Consumption, mW 700

Max. Battery Life(t=24℃), h 3.5

Degree of protection, IP code IP67

Weight (without battery), g ≤130g

Dimension, mm 77*52*46

Interface Type-C

Adapter Ring Mount M30*1.0

Detection Range,  675

(Target size:1.7m×0.5m,P(n)=99%)
