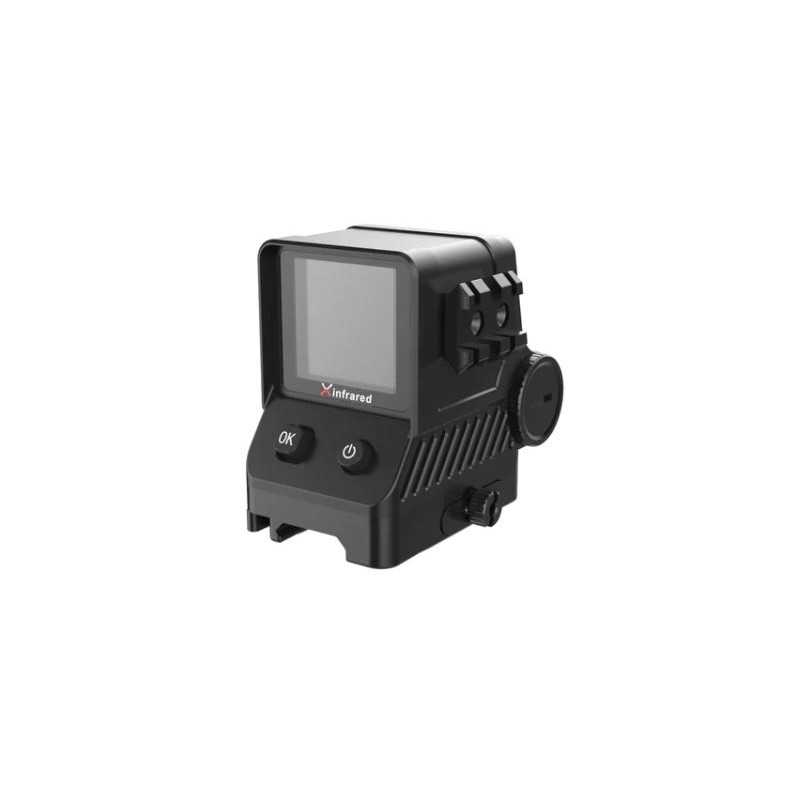

Infiray Holo Series HL13 Thermal Rifle Scope

Thermal Imaging Riflescope Holo Series

Holo is a direct view multifunctional thermal reflex sight embedded with the IRay’s latest  generation thermal imaging detector . The 1.63” OLED display brings excellent visual  experience of quick target acquisition without visual difference. It is an ideal thermal aiming camera with compact size, easy operation and  multiple installation interfaces (side picatinny available).

Meet the Holo Series

Holo is a direct view multifunctional thermal reflex sight embedded with the InfiRay's latest generation thermal imaging detector . The 1.63”OLED display brings excellent visual experience of quick target acquisition without visual difference. It can be the ideal option for those users who want thermal aiming camera with compact size, easy operation and multiple installation interfaces (side picatinny available).

High Image Quality With 1.63” AMOLED Display

The high performance IRay VOx detector and the advanced image processing create brilliant and sharp images.And Holo series is designed for directly aiming with a 1.63” AMOLED display, that user can observe and aim fast and accurately using both eyes, more comfortable and clearer without visual difference.

Short Start-Up Time, Low Power Consumption

3 seconds start-up time helps to save energy and can be rapidly activated when the right time comes. Low power consumption guarantees you don’t have to worry about the power supply. Dual-Purpose Holo Thermal Scope is a sharp and distinct thermal monocular which looks pretty much similar to an ordinary handheld video camera.

Short Start-Up Time, Low Power Consumption

3 seconds start-up time helps to save energy and can be rapidly activated when the right time comes. Low power consumption guarantees you don’t have to worry about the power supply. Dual-Purpose Holo Thermal Scope is a sharp and distinct thermal monocular which looks pretty much similar to an ordinary handheld video camera.

Moreover, when fitted on the custom handle, the Holo handle can be powered by a single 18650 battery. For example, the 20000mAh battery capacity can be used to supply a minimum of 8h to the Holo.

Compact Size and Lightweight, IP67 Fully Waterproof

With reasonable layout, compact structure, user-friendly controls, ergonomic design and light weight ensure the Holo Series more comfortable and convenient for outdoor usage.

IP67 waterproof-rated protection ensures the Holo Series performs perfectly in humid environment, heavy rain, snowfall and submersion in 1 meter of water for up to 30 minutes.

Multiple Mounts, Sight or Monocular, whichever you choose

For convenient operation, Holo series provides a quick-disassembled rail clamp for installation on hunting weapons that equipped with Picatinny rails. So in addition to be used as a thermal imaging sight on firearms, the Holo series can also be matched with other devices such as custom Holo handle for searching.

Beyond that, there is a short Picatinny rail on the side for variety widely usage, so as to install additional equipment.

Resolution, pixels: 320x280

Pixel Size, um: 17

NETD, mk: ≤50

Frame Rate, Hz: 25

Objective Lens, mm: 13

Field of View: 23.6°×20.7°

Display: 1.63” AMOLED

E-zoom: ×1\×2\×3\×4

Laser, nm: 650

Reticle: Multiple Patterns and Color Options

Battery: CR123A

Max. Battery Life, h: 3.5

Handle battery: 18650

Max. Battery Life, h: 8

IP Rating: IP67

Weight(without battery), g: <250

Dimension, mm: 58.5×80.5×74.5

Mount: Picatinny

Detection Range, m: 476

(Target size:1.7m×0.5m,P(n)=99%)
