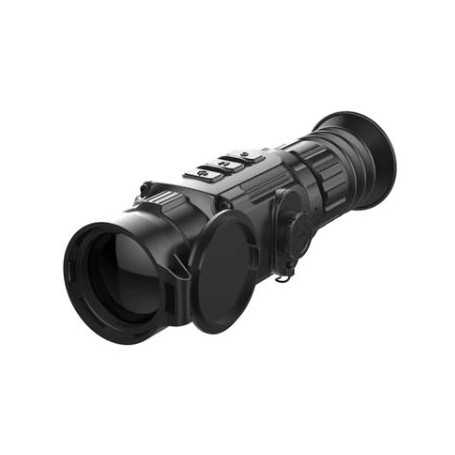

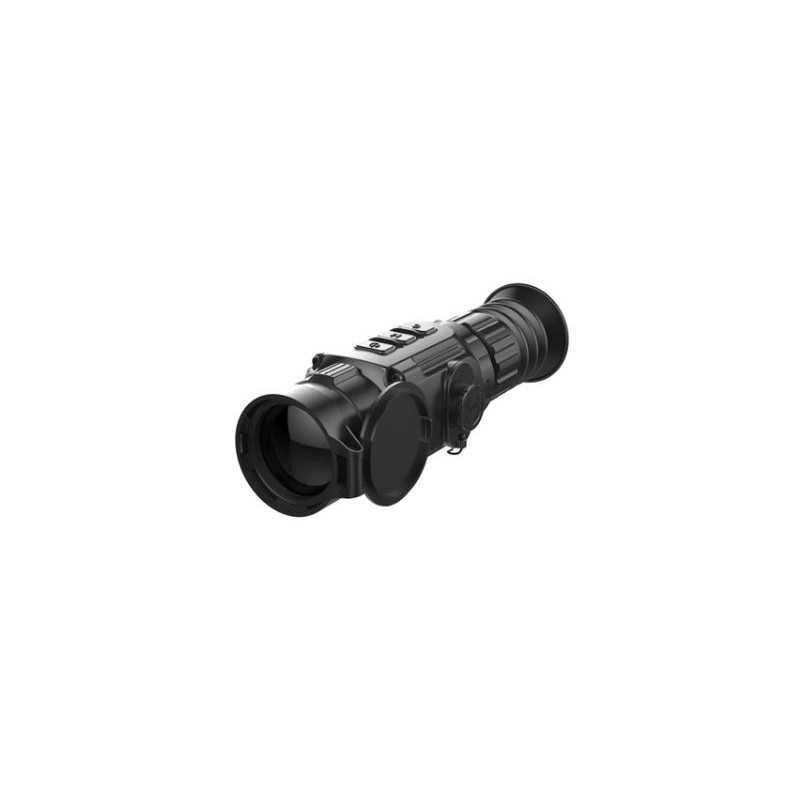

Infiray Saim SCL35 Thermal Rifle Scope

Introducing the InfiRay SAIM SCL35 – a high-performance thermal rifle scope designed for exceptional accuracy and ease of use. This advanced optic features a 384x288 resolution with a 17μm VOx thermal detector, ensuring outstanding image clarity and precision targeting. The SCL35 boasts a responsive 50Hz refresh rate and a versatile 35mm manual lens, allowing for adjustable 2.0x to 8.0x magnification. View crisp visuals on the 1280x960 high-resolution display, and enjoy comfortable shooting with a 40mm eye relief. Built to withstand tough conditions, the SAIM SCL35 is IP67 rated for water and dust resistance. Enhance your shooting experience with this reliable and feature-packed thermal rifle scope.

2706.00 $
Tax included

2200 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Thermal Imaging Riflescope Saim Series

The Saim series thermal imaging scope is designed with portability and easy for operation. Ergonomic design and excellent imaging quality make the Saim series an excellent companion for night observation, even in condition of rainy or foggy.

Meet the Saim Series

The Saim series thermal imaging scope is designed with portability and easy of operation in mind. Ergonomic design and excellent imaging quality make the Saim series an excellent companion for night observation, even in rainy or foggy weather.

High Image Quality

Built-in InfiRay detector and matched with Matrix ⅢTM powerful algorithm designed to increase imaging clarity and overall image detail. Matrix ⅢTM results in a sharper, more detailed field of view and enhanced object identification capabilities.the Saim series provides high image quality, improving the image contrast automatically, strengthening the image hierarchy, so to find target faster.

User-Friendly Interface

Simple and easy to operate is the initial design intention of the Saim series. Full icon design, easy to understand, and translucent background design of menu can effectively avoid occlusion vision. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.

Image Sharpness Adjustment

Image sharpness can be adjusted manually to fit individual preferences for high quality image, and there are four levels for option by short pressing menu key.

Ultraclear Mode

Ultraclear mode is specially for bad weather such as heavy fog and raining, that make Saim be more sensitive and get more details.

Compact Size and Lightweight

With reasonable layout, compact structure and light weight, the Saim series is more comfortable and convenient for outdoor use.

High Shock Resistance

The Saim series features exceptionally high shock resistance up to 1000G.

Built-in Video recorder and  WIFI connection

The SCT is equipped with a 16GB recorder which enables video shooting and image capturing at the time of observation 16GB which can  support to store about 20,000 pictures. Video and photo files saved in the internal memory can be transferred to a computer via wired connection or to a phone via WiFi. The wifi hotspot of the product supports  simultaneous connection of four devices.

External Power Supply

The working time can be significantly prolonged by  connecting with high capacity external power supply  units, i.e. portable power source via Type-C cable  presented in the package.

Picture-in-Picture Function

Picture-in-Picture improves accuracy by providing a 2x magnified image  of the reticle area at the top of the display. It helps to magnify the target  while retaining the rest of the field of view visible.

Long detection range 1800 meters

Actual range of detection of a human figure (1.8x0.5 m) in the field (human has outerwear, in the field against the background of the forest for the Saim thermal scopes up to 1818 meters, depending on the model.





Model SCL35

Resolution 384x288

Pixel Size, μm 17

NETD, mk ≤40

Frame Refresh Rate, Hz 50

Objective Lens, mm 35

Field of View 10.7°×8.0°

Magnification, x 2.0-8.0

Diopter Adjustment -5D~+5D

Display Resolution 1280x960 LCOS

WiFi & Recorder x

Compass & Msensor x

Amount of Built in Memory gb x

Battery Type CR123x2

Max. Battery Life,(t=25℃),h 4

Weight, (without battery) g <410

Dimension, mm 195x61x61

Detection Range, m 1283

(Target size:1.7m×0.5m,P(n)=99%)
