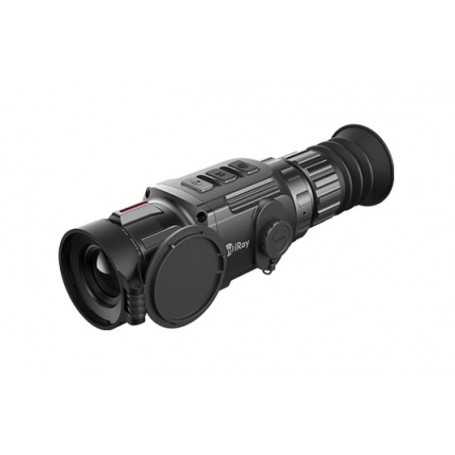

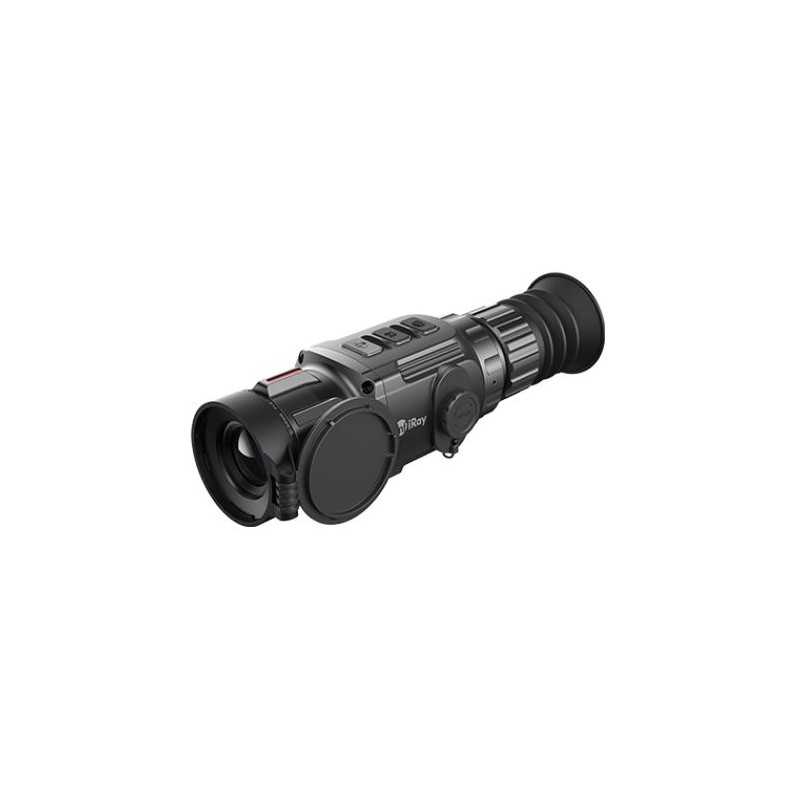

Infiray Saim NV SCD35 940 nm Thermal Rifle Scope

Clear Nighttime Imaging

The secret of improved full 1080P sensor with excellent ultra-low light performance is a sensor pixel size of 4×4 μm and a full use of its resolution. It brings an enhanced sensitivity to the nighttime environments and preys regarding the comparison with other normal CMOS sensors on the market, much dimmer lights could be sensed and captures. Combined with high-workmanship NV lens it offers professional and expertise nighttime outdoor experience.

Twilight Mode-Twilight Color

There are three image modes developed by SCD35-Day/Twilight/Night for demands in certain time of a day, benefiting from sensor performance and the exquisite combination of hardware and software, the users you can see color of the surrounding in twilight time.

Support PIP Function

Picture-in-Picture improves shooting accuracy by providing a 2x magnified image of the reticle area at the top of the display screen. It helps to magnify the target while retaining the rest of the field of view visible, with assistance of this functionthe user can closely focus on the image in the aiming area and have visual control of the entire field of view at the same time.

Support 940nm and 850nm IR

The SCD35 offers optional 850nm or 940nm IR illuminator to allow for increased illumination while staying undetected to the target. With 850nm IR it is obviously that you can reach longer recognition range in nighttime; with 940nm there is no infrared exposure that can disturb the animals. Three features will be attached with the IR illuminators:

Adjustable direction：Lead the lights in the screen center

High power- 3-level adjustment：Max. Power of 1.5w, suitable for compensating illumination

Adjustable concentration ratio: Satisfies requirements for illumination at different distances

Sufficient Operating Time

A basic run life of 3.5h brings integrated CR123 batteries can met with the needs of hunters who usually choose the short distance journey, additionally, SCD35 is equipped with external battery cover, so the running time can increase to 7h with 2 replaceable 16650 batteries. It can satisfy most of demands those who need and enjoy hunt for long trip if they can loads enough replaceable batteries in their bags.

Compact Size and Lightweight

SCD35 is designed to lighten the load of hunters and allows hunters to explore with longer distances. Lightweight less than 430g（without IR illuminator）and the small as well as compact size makes SCD35 the perfect portable hunting partner.

IP66 Waterproof Rating

Upgraded lens protection: Durable rigid plastic lens cap with higher hardness and impact resistance;

Upgraded waterproofing: External screen is used in rainy days for outdoor scenarios to prevent water flowing into the interface.

Support WIFI& InfiRay Outdoor APP

The internal WIFI module ensures the flawless connection of the SCD35 and the InfiRayOutdoor APP, a memory space of 16G and the supported video recording and photo taking function allow users to share their hunting and moments in time.

Variable magnification from 3X-12X

The base magnification of SCD35 increases by four times from 3X to 12X. The zoom changes gradually in 3X step from 3X-6X-9X-12X. The high resolution sensor guarantees the possibility of accurate aiming and long-range shots over the entire magnification range – the level of detail is sustained even at maximum magnification.

SCD35

Detector Specifications

Type HD CMOS

Resolution 1920 x 1080

Sensor Pixel 4μm

Optical Specifications

Focal Length of Objective Lens, mm 35mm

F-number 1.4

Optical Magnification, X 3X~12X

Field of View,° 8.4°×6.3°

Digital Zoom 1X/2X/3X/4X

Exit Pupil Distance, mm 35mm

Diopter, D -7 D~+3D

Display

Type FLCOS

Resolution 1280 x 960

Dimension 0.39"

Battery

Battery Type CR123（3.7V）* 2 / 16650 * 2

External Voltage, V 5V (Type C USB)

Battery Life, h 3.5h(CR123) / 7h (16650)

Physical Specifications

Detection range, m 200m

Degree of protection, IP code IP66

Memory Capacity, GB 16GB

Operating Temperature, ℃ -20℃~+50℃

Max. Recoil Power on Rifled Weapon 1000g/s²

Capture/Video resolution 1280 x 960

Weight, g 430g

Dimension, mm 195×61×61

IR illuminator

Wavelength, nm 940nm/850nm

Battery Type 18650

Max Power 1.5w
