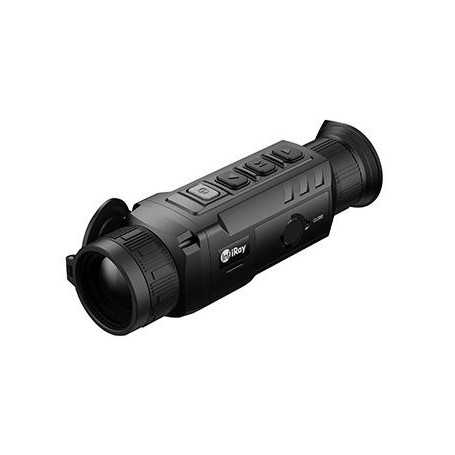

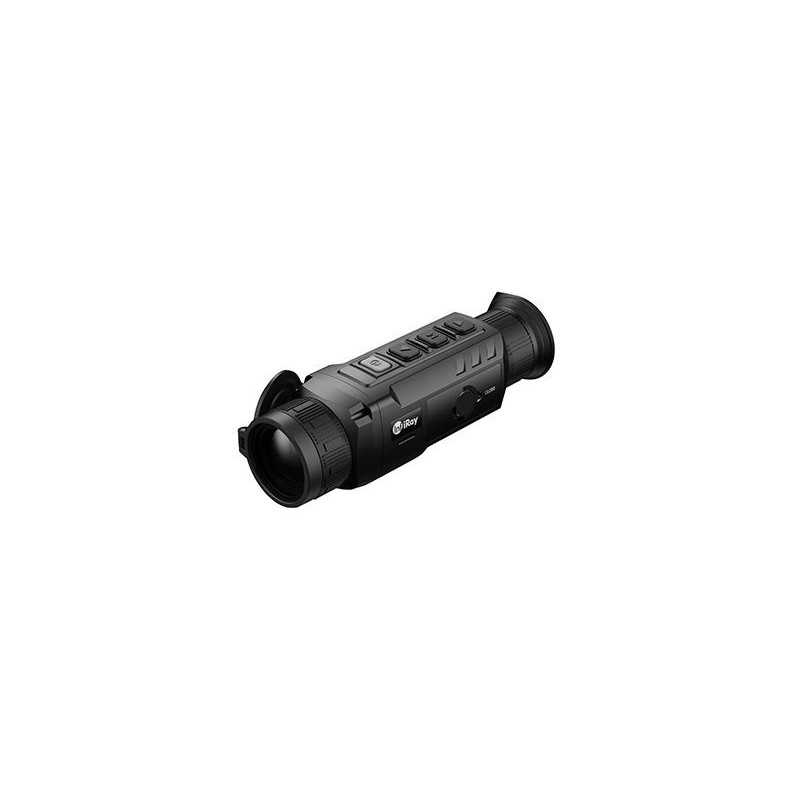

InfiRay Zoom ZL38 - Thermal Imaging Monocular

The InfiRay Zoom ZL38 is a state-of-the-art thermal imaging monocular known for its exceptional performance. Equipped with a 12 μm/384 x 288px sensor, it ensures superior image quality and detailed thermal mapping. It stands out due to its 19/38mm dual field view, which increases the accuracy of object identification and distance estimation. With a 2.7x optical magnification, it also promises unprecedented zooming capabilities. This advanced piece of optical technology is perfect for outdoor enthusiasts, hunters and professionals who require high-level thermal detection and imaging. In short, the InfiRay Zoom ZL38 is a bridge to the unseen, offering unparalleled detailed vision even in complete darkness.
2644.55 $
Tax included

2150.04 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The wider FOV of 25 mm can be used for target search, while the narrower FOV of 50 mm can be used for target identification.

Model ZL38

Detector Specifications

Type Uncooled Vox

Resolution 384x288

Pixel size 12μm

NETD ≤25mK

Frame rate 50Hz

Optical specifications

Focal length 19/38mm

Aperture 0.9/1.2

Optical magnification 2.7~21.3x

Field of view (FOV) 13.9°x10.4°/6.9°x5.2°

Detection range (Target size" 1.7mx0.5x, P(n)=99% 987/1974

Digital zoom 1x/2x/3x/4x

Distance 20mm

Pupil distance 5.5mm

Diopter -5~+5

Display

Type FHD OLED

Resolution 1440x1080

Dimension 0.4"

Battery

Battery Lithium-ion battery IBP-1/4400mAh/DC 3.7V

Service voltage 3V ~ 4.2V

External voltage 5V (USB type C)

Physical specifications

Battery life 12h

Memory capacity 32GB

Operating temperature -20℃ ~ + 50℃

Weight 540g

Dimension 190x65x60
