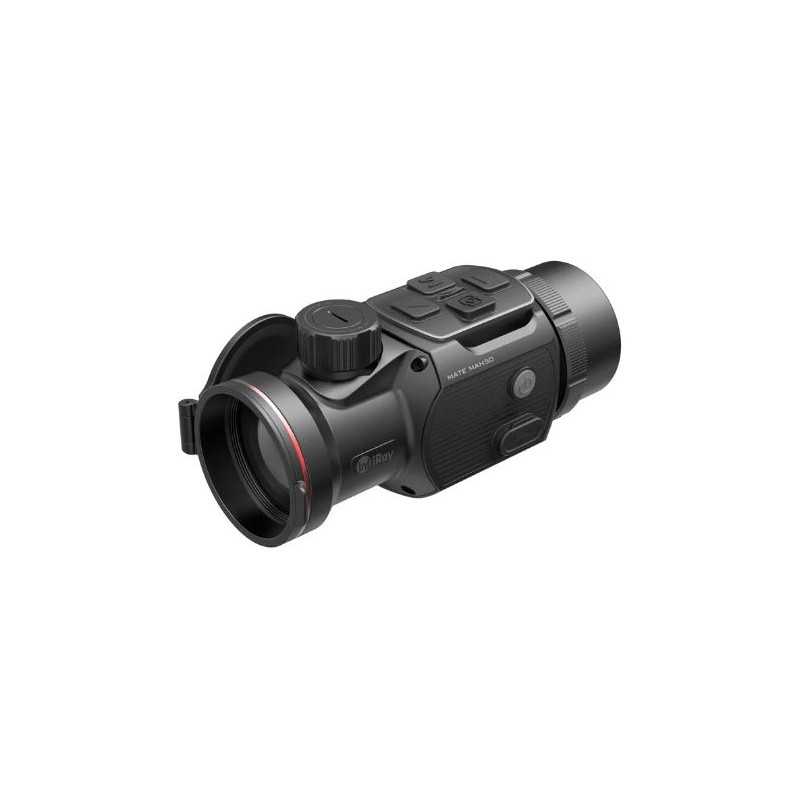

InfiRay MAH50 - Thermal Clip-On
The InfiRay MAH50 - Thermal Clip On, also known as MATE, is a seamless blend of precision and portability. Crafted from lightweight magnesium alloy, this device weighs 50% less, thus enhancing accuracy. MATE comes equipped with a host of practical features such as removable buttons, a Laser Range Finder (LRF) and a monocular extension, contributing to its exceptional performance and versatility. Due to its compact size and outstanding value, it stands as the preferred companion for users seeking practicality without compromising on quality. The InfiRay MAH50 is a testament to efficiency and design, promising excellent value for your investment.
3610 $ net price (non-EU countries)
100% secure payments
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Olesia Ushakova
Product Manager /
+48695005004 +48695005004 +48695005004
[email protected]
Description
Meet Mate Series
MATE creates a spot where precision meets portability. The magnesium alloy housing reduces the weight by 50% and improves the precision. MATE supports practical functions, including removable buttons, LRF, and monocular extension. It is the ideal mate for users who want a compact size and great value.
Ultra-precision
MAH50 can meet the high-precision requirement of "POI=1MOA" even by matching it with high-caliber rifles.
Lightweight & Compact Size
The weights are over 20% lighter than other similar products. It is also more compact in size than our previous clip-on.
Powerful Detector
MAH50 features a high-performance 640*512, 12μm detector with NETD less than 25mk.
Distortion-free
A high-quality optical imaging system offers a distortion-free image even when used with a 10 times daytime scope.
Sense-based Algorithms
The algorithms improve image quality by setting suitable preset parameters based on different environments, forest, plain, and city.
Removable Buttons
The buttons can be moved and installed to any position on your rifle. This allows hunters to control the device easily even when their focus is on the target. The remote control is supported by an ultra-low power consumption solution and can attach magnetically for automatic charging.
Power Bank in Box
Mate Series add a power bank as a complementary accessory. It can prolong the battery life for approximately another 7 hours.
LRF Extension
LRF can be equipped as an optional accessory. In addition to facilitating accuracy, the LRF extension can work as a power bank to prolong the 4-hour battery life for MATE.
Monocular Extension
MAH50 will function as a thermal imaging monocular when used with the IOM accessory. The IOM can also be used as an optic scope independently.
Model MAH50
Detector Parameters
Resolution, pixels 640 × 512
Pixel size, um 12
NETD, mk ≤ 25
Frame rate, Hz 50
Optics Parameters
Objective lens, mm 50
Field of view (H x V), degrees / m @ 100 m 8.8 × 7.0 / 15.4 × 12.3
Recommended magnification of the day scope, x G1/G2: 1 - 5 , G3/G4: 6 - 10
E-zoom Attachment mode: ×1, Monocular mode: ×1/×2/×4
Detection range, m (Target size: 1.7m×0.5m, P(n)=99%) 2597
Display Parameters
Type OLED
Resolution, pixels 1024 × 768
Electrical Parameters
Battery Built-in battery + Infiray battery Pack
Max. battery life, h 4 + 7
USB Interface Type-C
Physic Parameters
Body Material Magnesium Alloy
IP Rating IP67
Remote control Support
Built-in memory, GB 32
Aim point, MOA 1
Weight, g 530
Dimension, mm 146 × 62 × 73
Adapter Ring M52×0.75
Data sheet
