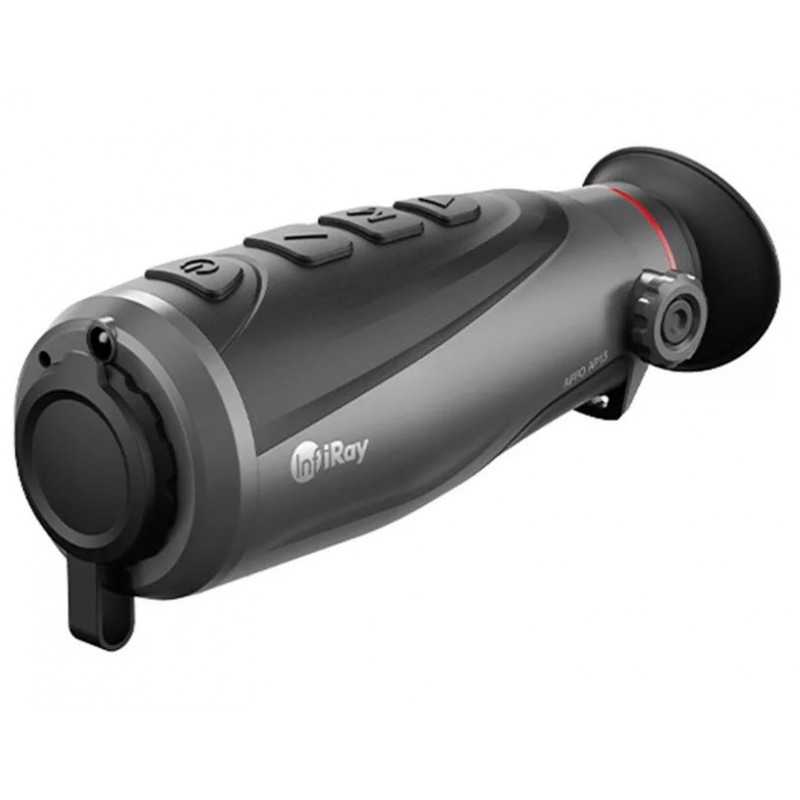

InfiRay Affo AP09 thermal monocular
Experience enhanced clarity and detail with the InfiRay Affo AP09 thermal monocular, the latest model in the successor Affo series to the X-Eye series. This state-of-the-art thermal camera delivers an upgraded image quality and an enhanced field of view over its predecessors. The AP09 is designed for unmatched hot spot tracking, making it a top-notch choice for sprinkler systems. A key feature includes a low initial magnification that offers an exceptional field of view due to the device's short focal length. This is further driven by its impressive 256x192 pixel sensor, providing superior resolution for better viewing. Take your viewing experience to the next level with the AP09 thermal monocular.
585 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The AFFO series offers practical features including a stadiometric rangefinder and picture-in-picture function.
The Affo series was released as the successor to the X-Eye series. With the Infiray Affo AP09 thermal camera, we get an even clearer and more detailed image, a clearer and more detailed field of view and improved hot spot tracking. AP09 will be the king of sprinklers. It provides an excellent field of view with low basic magnification thanks to the short focal length and the 256x192 pixel sensor. An excellent entry-level camera for big game. It has a maximum of 2x digital zoom. (approx. 2.6x) The built-in 32 GB internal memory allows you to record the moments you want, while the Wifi module allows you to connect to a smartphone or tablet, stream video or transfer files directly from the device, as well as update the operating system of the thermal camera. The downloadable app is called InfiRay Outdoor.
Furthermore, the device has an HDMI interface, so it can be directly connected to an HD screen, notebook, etc. for high quality display.
The thermal camera is equipped with 5 color palettes, in addition to the normal "white", "black", "red" and "color", we developed the "warm body highlighting" palette. By selecting this, users can easily find the target due to the high contrast between the background and the target. It can automatically track the hottest point in the field of view, making target detection even faster.
The durable, rigid plastic lens cap has greater hardness and impact resistance, and is limited waterproof thanks to the insulation.
The AP09 has a 25 Hz image refresh rate, thanks to which its energy consumption is minimal, which helps it to operate for up to 9.5 hours.
However, the strength of the camera is really the convincing force with which we almost immediately feel at home in all circumstances.
Thermal sensor: 256x192 12μm
Screen: 640 x 400
Lens: 9 mm, fix focus
Horizontal field of view (°) : 19.4
Data storage: 32 GB built-in memory
Base magnification (x): 1,3
Plugs: USB-C, HDMI
Diopter compensation: -3 - +1
Other properties: WI-FI, photo recording
Detection distance : Detection (m) human body: 460
Manufacturer: InfiRay
Warranty: 3 years manufacturer's warranty
Type: Monocular
Image repetition frequency: 25Hz
Field of view: 19.4×12.2°
Dimensions: 161×6×57 mm
Working / storage temperature: -10-+50℃ / -
Sensor: 256x192 pixel, 12 μm pixel size, NETD <= 40 mK
Color: grey
Weight (g): 340
Operating time: up to 9.5 hours
Data sheet
