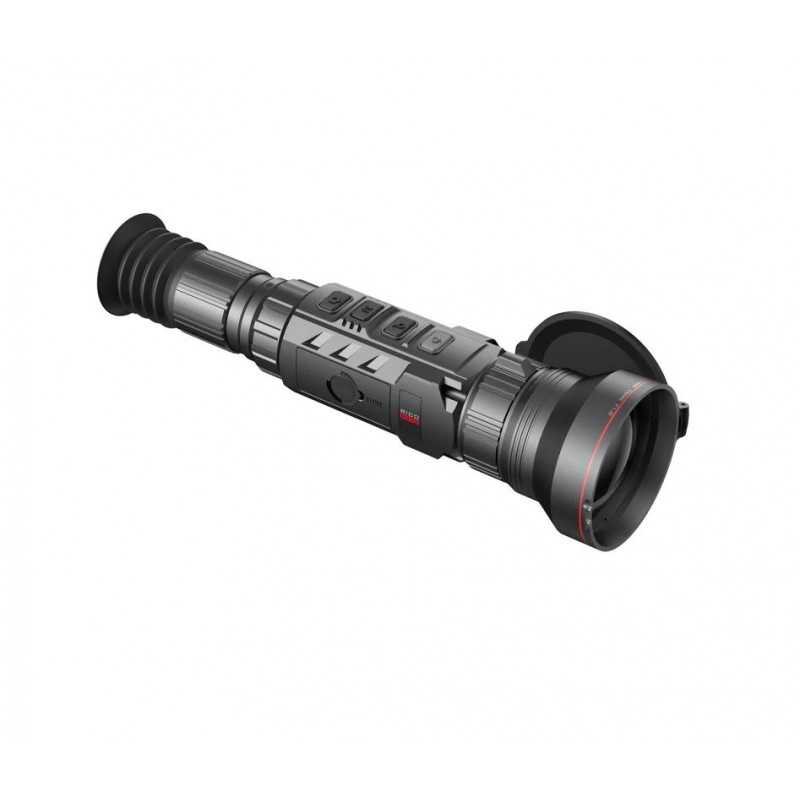

Infiray Rico Series RS75 - Thermal Rifle Scope

Rico-RS75 ushers in a whole new era of high-definition thermal with its most powerful thermal imaging detector. RS75 is the first to adopt a thermal imaging detector with a resolution up to 1280*1024. Every RICO with the 1280 detector will be transformed into a completely different class of product. Altogether with its 2560*2560, 1.03-inch AMOLED display, and optimised optical opponent, RS75 is designed to be the dream scope for night hunters.

First 1280 Resolution Sensor Product

The clarity is redefined with the 1280 detector. The image keeps incredible detail even at full 12x zoom, which 640 detectors cannot provide.

Detection Range Up to 3896m/4260yd

RS75 features a 75mm objective lens. The combination of insane focal length and the powerful detector expand the detection range to over 3800 meters.

Ultra-Clear Mode

Like the sport mode of the vehicle, RS75’s ultra-clear mode pushes the performance to the limit by temporally increasing consumption. Users can still see detailed images on rainy and foggy days with the facilitation of the ultra-precise mode.

Large HD Screen

RS75’s 2560*2560 1.03-inch AMOLED display can take the best advantage of the powerful detector and provide exquisite images as well as a comfortable visual experience.

Picture-in-Picture

The Picture-in-Picture function improves accuracy by providing a 2 x-magnified image of the reticle area, at the top of the display. It helps to magnify the target while maintaining visibility of the entire field of view.

Optimised Eyepiece

The optical design makes the image to be distortion-free at any angle. Altogether with the 60cm eye relief, the eyepiece can provide a better visual experience and effectively alleviate the dizziness arising from long-time observation.

LRF in Box

The standard configuration includes RICO LRF, which can accurately capture and display the target distance with an accuracy of ± 1 m and a maximum distance of 1000 m.

Worry-free Recording

The improved microphone makes the audio to be crystal clear. 128G internal memory enables users to store countless hours of footage.

MODEL RS75

Type Uncooled

Resolution, pixels 1280×1024

Pixel Size, um 12

NETD, mk ≤25

Frame Rate, Hz 30

Optical Characteristics

Objective Lens, mm 75

Field of View, º 11.7×9.4

Magnification, x 2×

E-zoom, x 2,4,8,12

Eye Relief, mm 60

Diopter Adjustment, D -3 ～ +3

Display

Type OLED

Resolution, pixels 2560×2560

Operational Characteristics

Battery 4400mAh

Max. Operating Time (at temp.=22 ºC), h* 6h

External power supply 5V (Type C USB)

Max. Recoil Power on Rifled Weapon, g/s² 1000

Degree of protection, IP code IP67

Amount of built-in memory, GB 128

Operating Temperature Range, ℃ -20~+50

Weight, g ≤1200g

Dimension, mm 319×100×85

USB Interface Type-C

Detection Range, m  (Target size:1.7m×0.5m, P(n)=99%) 3896
