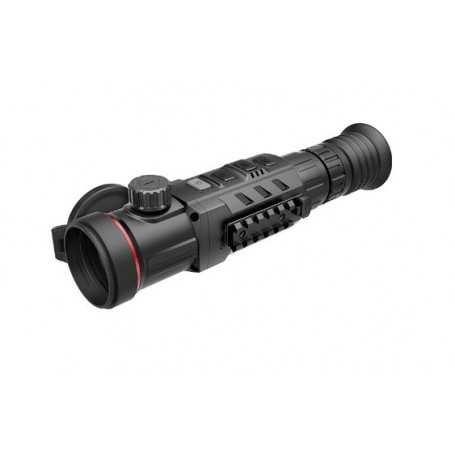

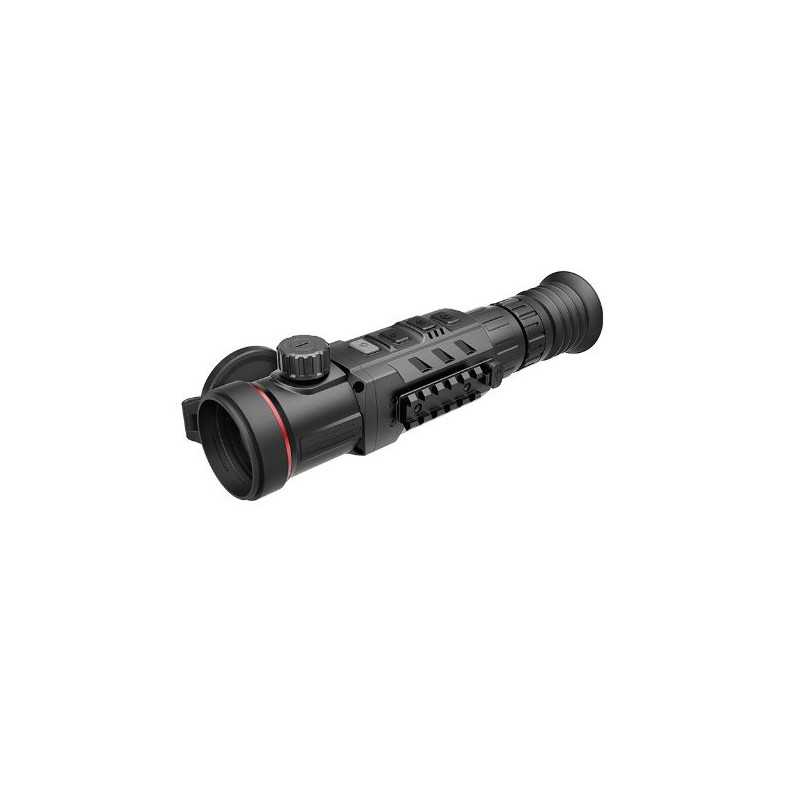

Infiray Rico Series RH50 Pro - Thermal Imaging Riflescope

The InfiRay Outdoor RICO PRO was built to be the most advanced dual field-of-view (FOV) thermal rifle scope available to the commercial market. InfiRay Outdoor’s patented dual FOV objective lens allows users to seamlessly switch between a wide FOV for detection and a narrow FOV for target identification. Unmatched image quality, paired with an intuitive and easy-to-use interface, HD display, 6-hour run-time, aluminum alloy housing, and 32GB of internal memory, gives you all the tools you need to take your hunt to the next level.

Dual FOV Objective Lens

The RICO PRO and its industry-first dual FOV 25mm/50mm objective lens gives you the power to switch between a wide FOV for detection and a narrow FOV for target identification. This 2× increase in optical magnification occurs with an intuitive twist of the zoom ring and maintains 100 percent of the sensor’s native resolution. Closing the distance with a thermal scope has never been this fast.

Seamless Switch

The separation of the lens focus knob and zoom ring realize the seamless switch of FOV. The image can maintain sharp after the switch of FOV, no need for repeated focusing. Opportunity only knocks once for a nice shot and this special design leaves you more time for target identification.

Zeroing One Time for Two FOVs

Once you completed the zeroing on one FOV, the reticle will be calibrated automatically into the zero position on the other FOV. Worry-free for precision shooting under two FOVs and saving you time & bullets.

Unmatched Image Quality

The combination of 640×512 12 μm thermal detector and the  MATRIX III image algorithm ensures RH50 PRO can generate crisp image under harsh conditions.

Intuitive And Easy-to-use Interface

Simple and easy to operate is the initial design intention of the RH50 PRO. The vivid icons offer a visualized guide. The translucent background of the menu display ensures the user observes the target unobstructed.

IBP-1 Battery Pack

One field-swappable lithium battery offers 6+ hours of run-time.

Model RH50Pro

Detector   Specifications

Type Vox

Resolution，pixels 640×512

Pixel size，μm 12

NETD，mk ≤ 40

Frame rate，Hz 50

Optical   Specifications

Objective Lens，mm 25/50

Field of View（H×V），° 17.6*13.2/8.8*6.6

Linear Field of View（H×V），m at 100m 30*24/15*12

Optical Magnification, × 1.5x/3x

Digital Zoom，× 1~4

Eye Relief，mm 55

Exit pupil Diameter，mm 6

Diopter,D -4   ~ +4

Detection Range，m（Target size：1.7m×0.5m，P(n)=99%） 2600

Display   Specifications

Type OLED

Resolution,pixels 1024*768

Battery   Power Supply

Battery 2   Replaceable Li-Ion Battery IBP-1/ 4400mAh

Max. operating Time(22℃)*，h 6

External Power Supply 5V   (Type C)

Physical   Specifications

Wi-Fi/APP Support   (InfiRay outdoor)

Photo/Video Recorder Support

MIC Support

Memory Capacity 32GB

IP rating IP67

Operating Tempeture，℃ -20   ~ +50

Weight，g 830

Dimension，mm 250×65×58

Body Material Magnesium   Alloy

Max. recoil power on rifled weapon (Eo), Joules 6000

Functions

Laser rangefinder Optional

Measuring Range，m 1000

Measurement Accuracy, m ±1

Wavelength, nm 905
