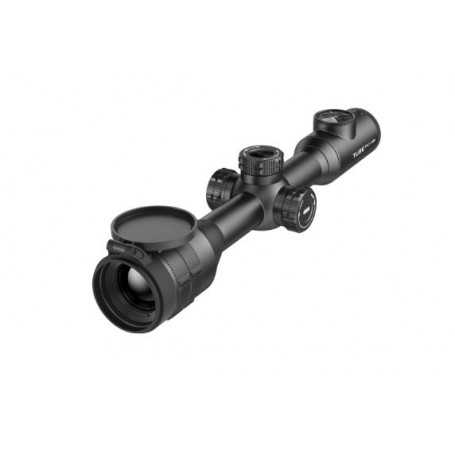

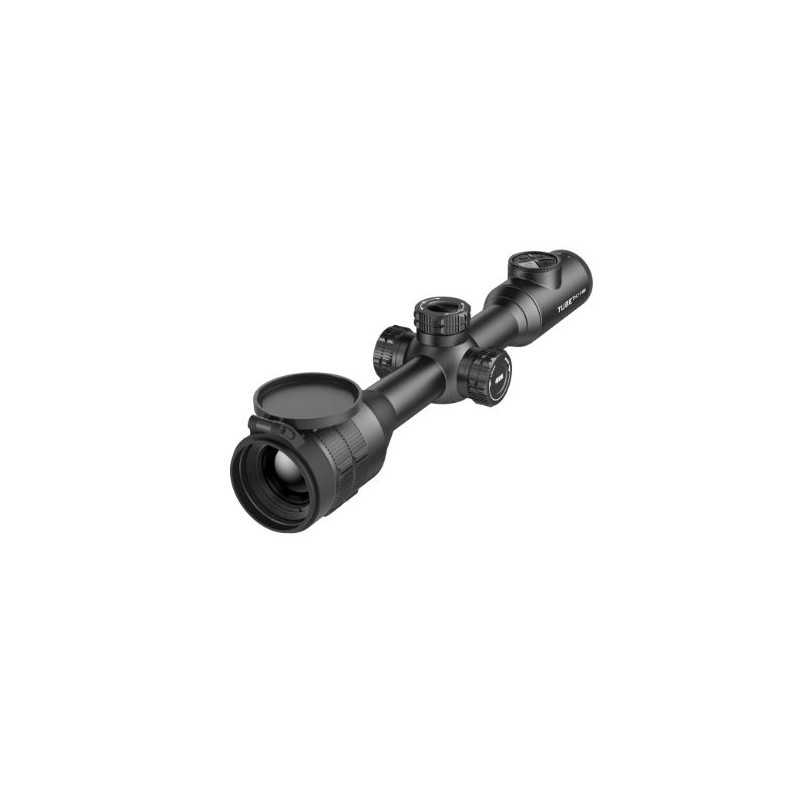

InfiRay Tube TH50 V2 - Thermal Imaging Riflescope

The TH50V2 expands on the success of the TH50 with the addition of the optional LRF and built-in mic function, maintaining the excellent features such as 12um 640x512 sensor, 50mm optics and 2560x2560 1.03” AMOLED display.

The new TH50V2 is designed to present unprecedented comfort, super clarity and absolute precision.

Ultra-Precise Boosted by Optional LRF(upgraded)

TH50V2 is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.

Built-in Microphone (Upgraded)

TH50V2 is equipped with a MIC function, therefore customers can record the voice when recording.

Traditional Day Scope Appearance

The traditional style housing allows for mounting with standard 30mm rings like a typical day scope.

12um 640*512 High Capacity Sensor

Being the top-end thermal scope of Tube Series, TH50V2 is equipped with the industry leading InfiRay 12 um 640x512 sensor with advanced image processing algorithm.

1.03” AMOLED Display with 2560x2560 Resolution

TH50V2 adopts particular 2560x2560 1.03” AMOLED display to provide finest observing experience with excellent optical parameter, no need to stare into the screen like you used to, therefore the visual fatigue caused by the long-time observing can be prevented.

Ultra-clear Mode

With Untra-clear mode, TH50V2 can still provide a clear and delicate imaging even in bad weather conditions such as heavy fog and rain.

More Accurate Zeroing

TH50V2 is able to reach 1.2cm（1.71cm） per unit at 100m when zeroing. Each scale unit is smaller. Therefore, the zeroing can be more accurate.

Smooth Magnification

TH50V2 is able to magnify the imaging smoothly without flicker and stutter bringing users comfort when observing.

2600m Detection Range

Combining the extraordinary sensor and the powerful 50mm optics, TH50V2 can achieve the detection range up to 2600m.

Model TH50 V2

Detector Specifications

Type Uncooled Vox

Resolution, pixels 640 × 512

Pixel Size, μm 12

NETD, mk ≤ 25

Frame Rate, Hz 50

Optical Specifications

Objective Lens, mm 50

Field of View (H×V), º 8.8 × 7.0

Linear Field of View (H×V), m at 100m 15.4×12.3

Optical Magnification, × 3.5 ~ 14.0

Digital Zoom, × 1 ~ 4

Eye Relief, mm 50

Exit pupil Diameter, mm 6

Diopter, D -5 ~ +3.5

Detection Range, m (Target Size: 1.7m×0.5m, P(n)=99%) 2600

Display Specifications

Type AMOLED

Resolution 2560 × 2560 (1.03”)

Battery Power Supply

Battery Built-in battery / 6600mAh + replaceable 18500 battery / 3.7V

Max. Operating Time (22ºC), h* 8.5

External Power Supply 5V (Type C)

Functions

Wi-Fi / APP Support (InfiRay outdoor)

Photo / Video Recorder Support

MIC Support

Bluetooth Support

Operational Characteristics

Memory Capacity，GB 32

IP rating IP67

Operating Temperature, °C -20 ~ +50

Max. recoil power on rifled weapon (Eo), Joules 6000

Compatible mounts Standard 30 mm rings

Weight (without the 18500 battery), g < 950

Dimension, mm 365 × 85 × 75
