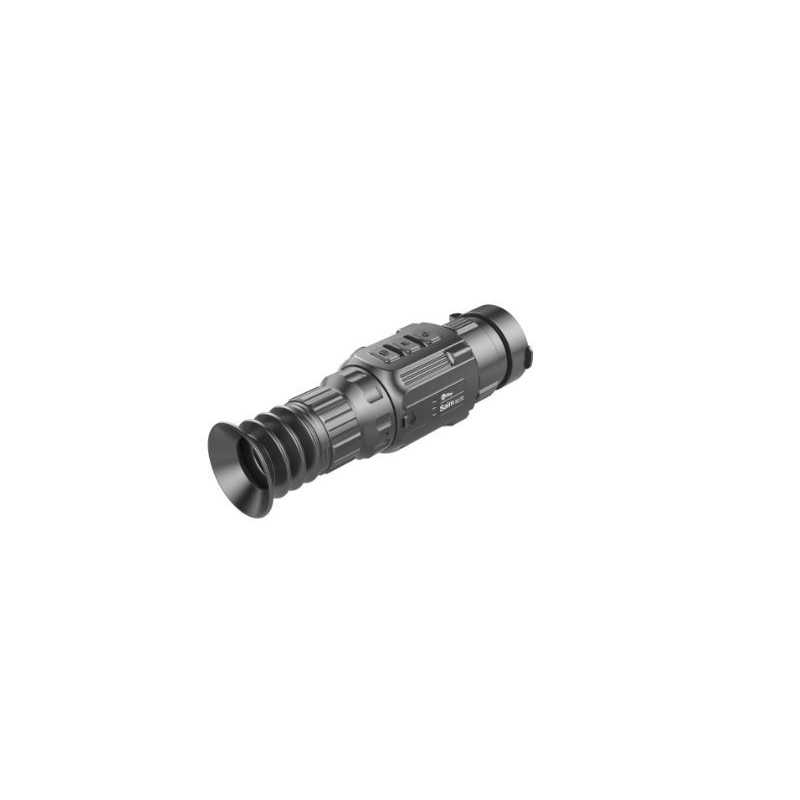

InfiRay SCL35W - Thermal Imaging Sight

The InfiRay Saim SCL35W thermal scope is an improved version of the SCL35. Compared to the previous version, the SCL35W has new features, such as: Wi-Fi, photo and video recording functions, 8 aiming reticles. Thanks to the 17 micron sensor, with a 35 mm lens and a 40 mK thermal sensor, objects can be detected up to 1283 m. High resolution 1280×960 LCOS display ensures high image quality.

High image quality

The InfiRay sensor is matched with the Matrix Ⅲ TM image processing algorithm designed to increase image clarity and overall image detail. Matrix Ⅲ TM expands the field of vision and improves the possibilities of object identification. Provides high image quality by automatically enhancing image contrast for faster target acquisition.

Ultra-clear function

The mode is designed to improve the image in bad weather such as heavy fog or rain. The mode increases the detail of the device, highlights the contours of the heat-emitting object

7 hours operation

The InfiRay Saim SCL35W has an extended battery compartment that allows the use of two 16650 batteries. The maximum battery life is up to 7 hours.

Impact protection

Saim series devices are characterized by exceptionally high impact resistance up to 1000G. Rebound up to 6000 joules.

16 GB capacity for video material

The InfiRay Saim SCL35W scope has 16 GB of internal memory, supports Wi-Fi function.

Adjusting the brightness of the image

The brightness of the image can be adjusted manually - a short press of the menu button opens four selection levels.

PIP Function

Picture-in-Picture improves image clarity by displaying a 2x enlarged image at the top of the screen. This helps to zoom in on the target while keeping the field of view on the overall screen.

Targeting reticles

The InfiRay Saim SCL35W scope offers a choice of 8 different reticles to suit different needs and applications

Technical data

Model SCL35W

Sensor resolution 384×288

Pixel size, μm 17

Thermal sensitivity NETD, mk ≤40

Frame rate, Hz 50

Objective lens, mm 35

Field of view FOV, º 10.7×8

Zoom, x 2.02×

Digital zoom 1×/2×/4×

Wi-Fi, photo and video recording Yes

Internal memory, GB 16

Screen resolution 1280×960 LCOS

Battery 2x CR123

Max. battery life, h 3.5

Weight, g 420

Detection distance, m 1283
