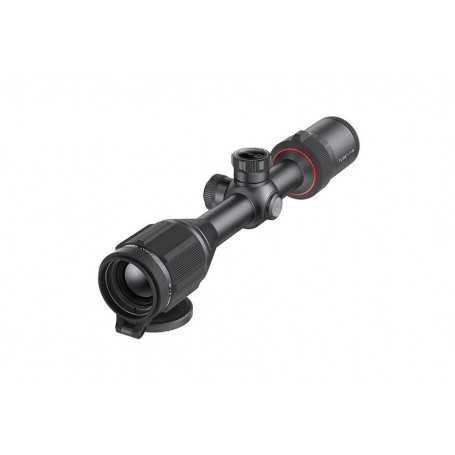

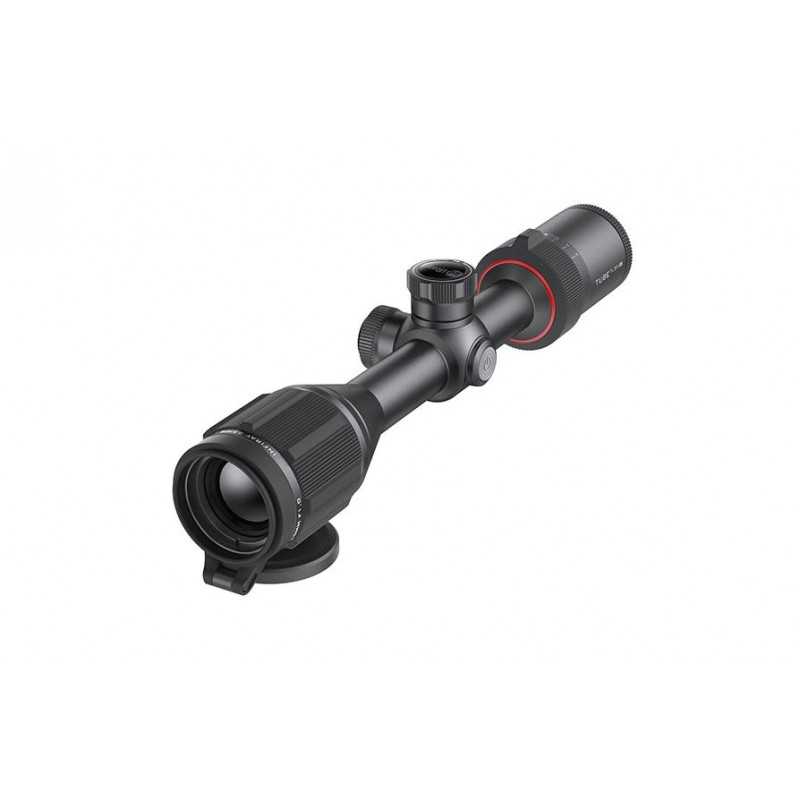

InfiRay Tube TL25 SE - Thermal Imaging Riflescope

TUBE SE retains most of the highly recognized features of TUBE series in a surprisingly compact body with a lighter weight of only 720g. It also adopts a zoom ring to adjust magnification, a Bluetooth LRF to provide precise distance measurement and a controller instead of buttons. TUBE SE is sure to bring you an all-round easier experience.

12um Sensor with NETD ＜25mK

TUBE SE is equipped with the 12um sensor with NETD ＜ 25mK,which is lighter, lower power consumption, ensures perfect detailed recognition even in the hardest weather conditions when thermal contrast is low.

Easier to Carry

TUBE SE has a body that only weighs 720g which is 28% less compared to the normal 1kg thermal riflescope.

Easier to Use

Zoom Ring

TUBE SE adopts a zoom ring to adjusting magnification which is consistent with the using habit of the day scope. The zoom ring is made of silicone material, which is soft and comfortable, easy to twist and anti-slip.

Controller Controls Over 90% Functions

Over 90% functions can be completed by the controller of TUBE SE, the operation is simplified and to bring your more convenience during the night.

Easier to Shoot

Bluetooth LRF

TUBE SE is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.

11h+ Working time

The working time of TUBE SE is up to 11 hours to keep your hunting going all night, so you don't need to take the power pack and extra charging accessories.

Built-in Mic

TUBE SE is equipped with a MIC function, therefore customers can record the voice when recording.

Model TL25 SE

Detector   Specifications

Type Vox

Resolution，pixels 384*288

Pixel Size，μm 12

NETD，mK ≤ 25

Frame Rate，Hz 50

Optical   Specifications

Objective Lens，mm 25

Field of View（H×V），° 10.5x7.4

Linear Field of View（H×V），m@100m 18.4x13.0

Optical Magnification, × 2.0

Digital Zoom，× 1.0~4.0x

Eye Relief，mm 50

Exit Pupil Diameter，mm 6

Diopter Adjustment -5~+4

Detection Range，m（Target size：1.7m×0.5m，P(n)=99%） 1300

Display Specifications

Type AMOLED

Resolution,Pixels 1536*1080

Battery Power Supply

Battery Built-in   18650 battery-3350mAh

Max. Operating Time(22℃)*，h 11

External Power Supply 5V   (Type C)

Physical   Specifications

Wi-Fi/APP Support   (InfiRay outdoor)

Photo/Video Recorder Support

Recoil Activated Video Support

MIC Support

Bluetooth Support

Memory Capacity 32GB

IP Rating IP67

Operating Tempeture，℃ -20   ~ +50

Weight，g 720

Dimension，mm 310x70x70

Connections   and Compatibilities

Max. Recoil Power on Rifled Weapon (Eo), Joules 6000

Compatible Mounts 25.4mm ring
