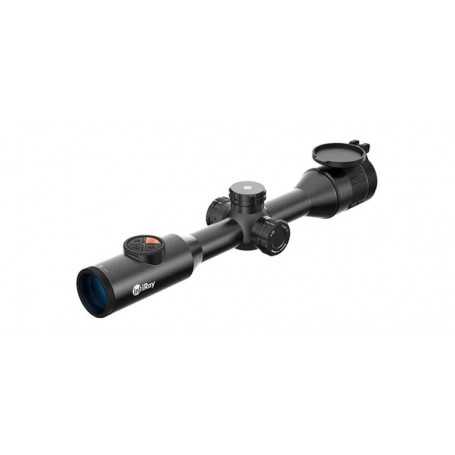

InfiRay Tube TL35 V2 - Thermal Imaging Riflescope

The TL35V2 adds new functions to the former TL35 such as an expandable Laser Ranging Function to provide distance measurement, the upgraded OLED display and the built-in Mic to record sound.

Bluetooth LRF Optional

TL35V2 comes with an option of an expandable Laser Ranging Finder Function. TL35V2 is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting

Stadiametric Rangefinding

TL35V2 is equipped with the practical stadiametric rangefinding function to provide position reference for hunting. It will be automatically turned off once the bluetooth LRF is connected.

1024X768 AMOLED Display

TL35V2 adopts a 1024X768 AMOLED display instead of a 1280x960 LCOS display of TL35. The imaging quality will be improved a lot for an AMOLED display will offer better layers and contrast.

Built-in microphone

TL35V2 is equipped with a MIC function, therefore customers can record the voice too when recording.

12 µm Pixel Pitch

Featuring the self-researched, high-performance 12um detector, TL35V2 is able to provides high quality and detailed images.

Ultra-clear Mode

Built-in ultra-clear mode is designed for bad weather conditions, such as heavy fog and rain. It will make the Tube series more sensitive and capable of providing more details.

Extreme Detection Range(Target size: 1.7m×0.5m, P(n)=99%)

Combining the extraordinary sensor and the powerful optics, TL35V2 can achieve the detection range up to 2600m（1800m).

Sufficient Operation Time and Flexible Battery Choice

The working time of built-in battery is up to 12 hours, and the replaceable 18500 battery will provide an additional 3 hours of operation.

32GB

TL35V2 comes with 32GB of memory for storing 57,000 images or 48 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app.

Model TL 35 V2

Detector Specifications

Type Uncooled Vox

Resolution，pixels 384X288

Pixel size, μm 12

NETD, mK ≤40

Frame Rate, Hz 50

Optical Specifications

Objective Lens, mm 35

Field of View（H×V），° 7.5x5.6

Linear Field of View（H×V），m at 100m 13.1x9.9

Optical Magnification, × 3.0

Digital Zoom, × 1~4

Eye Relief, mm 70

Exit pupil Diameter，mm 6

Diopter，D -4~+4

Detection Range, m (Target size: 1.7m×0.5m, P(n)=99%) 1800

Display Specifications

Type AMOLED

Resolution,pixels 1024*768

Battery Power Supply

Battery Built-in  battery/6600mAh +  replaceable 18500 battery/3.7V

Max. Operating Time (t=22ºC), h* 15

External Power Supply 5V (Type C)

Functions

Wi-Fi/APP Support (InfiRay outdoor)

Photo/Video Recorder Support

MIC Support

Bluetooth Support

Operational Characteristics

Memory Capacity，GB 32GB

IP rating IP67

Operating Temperature, °C -20 ~ +50

Max. recoil power on rifled weapon (Eo),   Joules 6000

Compatible mounts Standard 30 mm rings

Weight (without the 18500 battery), g <950

Dimension，mm 385× 85 × 75
