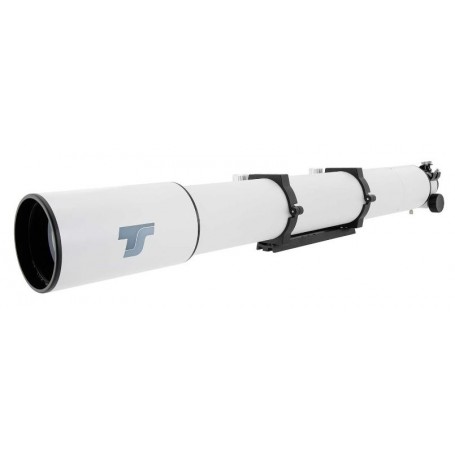

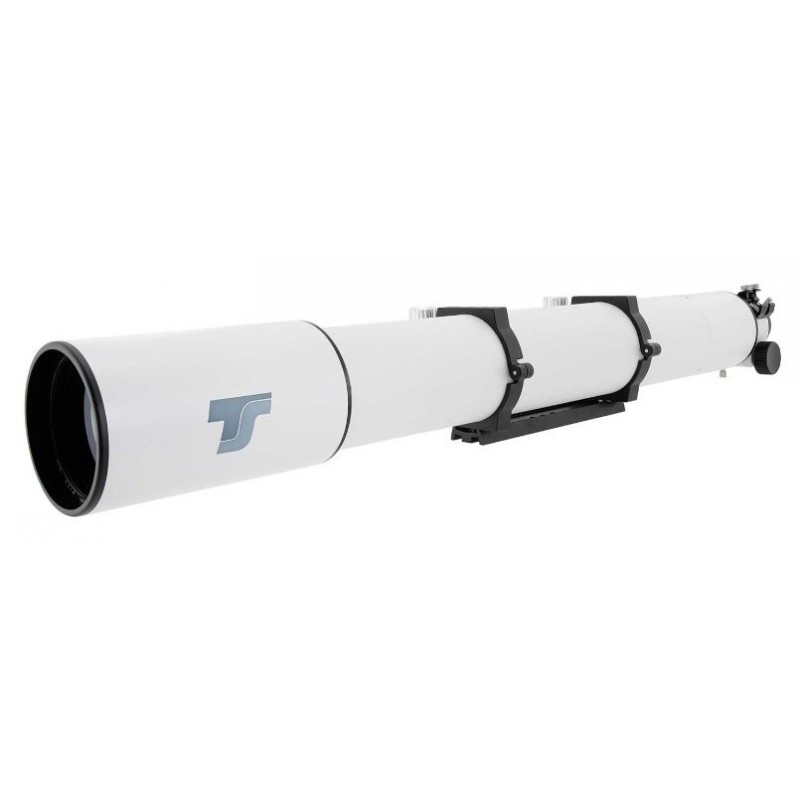

TS Telescope Service 102/1122 f/11 ED 2,5" RAP (SKU: TSR1021OTA)
679.14 $ net price (non-EU countries)
100% secure payments
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Olesia Ushakova
Product Manager /
+48695005004 +48695005004 +48695005004
[email protected]
Description
The TS-Optics 102/1122 F/11 ED 2.5" RAP is an exceptional optical tube that offers a perfect blend of features for both observation and astrophotography enthusiasts.
At the heart of this telescope is a two-element optical system that ensures unparalleled image quality with precise correction of chromatic aberration. The low-dispersion lens, crafted from FPL-51 glass, represents one of the finest optical materials available today. Not only does it possess a high Abbe number (81.54), indicating superior optical performance, but it also boasts excellent chemical stability, ensuring durability against external elements.
Equipped with a sturdy 2.5-inch diameter rack & pinion focuser, this telescope guarantees linear operation, even when accommodating large SLR cameras. The focuser also features dual-speed knobs, enabling effortless and precise focusing.
In addition to its remarkable optics, the TS-Optics 102/1122 F/11 ED 2.5" RAP stands out for its robust yet lightweight construction. With an optical tube weighing only 4.6 kg, this telescope can be easily mounted on an EQ5 class mount.
Key features of the TS-Optics 102/1122 F/11 ED 2.5" RAP refractor include:
- Low-dispersion doublet with an ED element made of FPL-51 glass, ensuring excellent chromatic aberration correction.
- Versatile design suitable for both astrophotography and visual observations.
- Solid rack & pinion focuser with coarse and fine adjustment knobs, as well as a photo thread for camera attachment.
- Lightweight construction allowing for installation on an EQ5 class mount.
- The tube can be shortened by 12 cm (from the focuser side), extending the working distance from 150 mm to 270 mm. This feature is ideal for observing with a binocular attachment, eliminating the need for focus correctors and Barlow lenses.
Technical specifications of the TS-Optics 102/1122 F/11 ED 2.5" RAP:
- Optical system: ED doublet
- Objective diameter: 102 mm
- Focal length: 1122 mm
- Aperture ratio: f/11
- Resolving power: 1.15"
- Star range: 11.8 mag
- Maximum usable magnification: 250x
- ED lens material: FPL-51 glass
- Focuser diameter: 2.5"
- Focuser type: Rack & pinion, dual speed, with photo thread
- Mounting for assembly: Vixen foot
- Recommended mount type: EQ5 or higher
- Outer diameter of the tube: 123 mm
- Inner diameter of the tube: 110 mm
- Tube length (with dew shield retracted): 980 mm
- Weight: 4.6 kg
Included accessories in the set:
- TS-Optics 102/1122 F/11 ED 2.5" RAP optical tube
- 2" adapter for the focuser
- 1.25" adapter for the focuser
- Eyepiece and focuser covers
- Finder scope bracket
- Mounting clamps
- Vixen foot
The TS-Optics 102/1122 F/11 ED 2.5" RAP refractor comes with a 24-month guarantee, ensuring peace of mind for your astronomical adventures.
