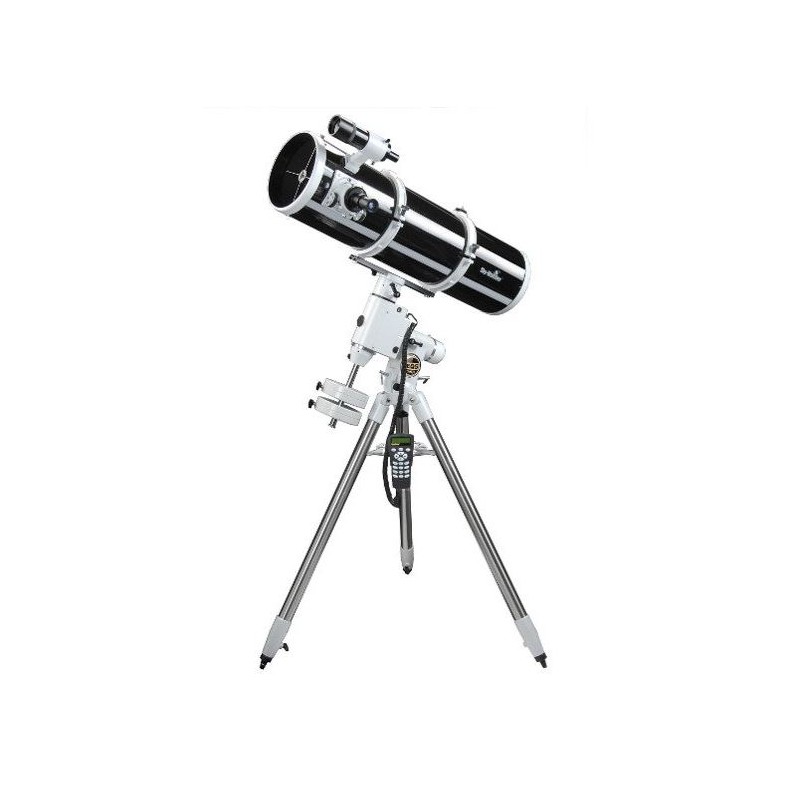

Sky-Watcher Synta N-203 203/1000 HEQ-5 (BKP2001HEQ5 SynScan) Telescope

The Synta SkyWatcher N-200/1000 HEQ-5 SynScan GOTO Telescope is a renowned telescope with a classic mirror tube design. It boasts a 200mm main mirror diameter and a 1000mm focal length, offering exceptional observation capabilities. Mounted on a sturdy and reliable parallactic assembly with a search system, this telescope caters to both demanding beginners and advanced astronomy enthusiasts. It is a high-quality instrument that enables advanced visual observations and produces excellent sky photography results in short, medium, and long exposures. With its 2-inch eyepiece extractor, which can be reduced to 1.25 inches, the telescope accommodates both standard and larger eyepieces.

This telescope provides a wide range of observation possibilities. It is well-suited for observing objects within the Solar System such as the Moon, planets, asteroids, and comets. Additionally, it offers access to several thousand nebulae objects from the Messier and NGC catalogs.

The optical tube is securely mounted on a robust steel parallactic HEQ-5 mount, known for its high rigidity and precision. It features the advanced GOTO SynScan tracking and locating system, which includes a comprehensive database of nearly 14,000 objects and ephemerides of the Moon and planets within the Solar System.

The Sky-Watcher HEQ-5 Pro SynScan parallactic assembly is specifically designed to meet the needs of amateur astrophotography and advanced visual observations. Despite its impressive stability, it maintains a relatively lightweight and compact design. Equipped with two-axis drives, the GOTO SynScan computer system, a polar field scope, and solid locking clamps in the right ascension and declination axes, this assembly offers exceptional functionality. The counterbalance rod is conveniently built into the head and can be pulled out as needed. The tripod features 1.75-inch legs, providing maximum stability for the entire setup. The mount can support a maximum weight of approximately 16 kg while weighing 19 kg itself. Mounting the optical tube is made easy with the included standard dovetail mounting rail.

The GoTo SynScan remote control offers comprehensive tracking and object-finding capabilities. It provides three tracking speeds for stellar, lunar, and solar objects in Dual Axis (RA) modes. The remote control offers various alignment procedures, including One-star Alignment, Two-star Alignment, and Three-star Alignment.

The database of the SynScan remote control includes 25 user-definable objects, as well as a full database of Messier, NGC, and IC objects, totaling 13,436 objects. It also includes features to easily locate planets and the Moon. Notable advanced features include vibration reduction during long-exposure photography and software error correction periodic (PEC). The telescope can be controlled using a computer through the PC ports (RS-232 port), and it also supports Auto-Guide for precise alignment during astrophotography using a tracking camera.

The offered telescope package is ready for immediate use and includes all necessary accessories, such as the optical tube, suitable optics, a set of eyepieces, and the stable assembly.

Technical Specifications of the Telescope:

• Optical System: Newtonian Reflector
• Mirror Diameter: 200mm
• Focal Length: 1000mm
• Focal Ratio: f/5
• Mirror Performance Accuracy: 1/8 wavelength
• Resolving Power: 0.69 arc seconds
• Theoretical Limiting Magnitude: 14mag
• Maximum Useful Magnification: 400x
• Weight of the Entire Setup with Mount: 29kg

Technical Specifications of the Mount:

• Power Supply: 12 VDC 2Amp
• Drive Type: 1.8° Stepper Motor
• Resolution: 0.144 arc seconds
• Slewing Speeds: 2X, 8X, 16X, 32X, 64X, 400X, 500X, 600X, 800X
• Gear Ratio: 705
• Tracking Speeds: Stellar, Lunar, Solar
• Tracking Modes: Dual Axis (RA) tracking mode
• Alignment Procedures: One-star Alignment, Two-star Alignment, Three-star Alignment
• Database: 25 user-definable objects, full database of Messier, NGC, and IC objects (total of 13,436 objects)
• Vibration Minimization for Long-Exposure Photography
• Programmable Periodic Error Correction (PEC)
• PC Port (RS-232) for Computer Control
• Auto-Guide Port for Precise Alignment during Astrophotography
• Mount Type: German Equatorial (parallactic)
• Optical Tube Mounting: Clamps (rings)
• Microcontrollers: RA & Dec (controlled by the drive)
• Tripod: 1.75-inch steel legs
• Tripod Height: 85-147 cm
• Tripod Weight: 7.5 kg
• Counterbalance Rod Diameter: 1.8 cm
• Counterbalance Rod Material: Stainless Steel
• Mount Weight without Counterweights: 9 kg
• Mount Weight with Counterweights: 19 kg
• Mounting Height: 41 cm
• Counterweights: 2 x 5.1 kg
• Maximum Load Capacity: Approximately 16 kg

Included Accessories:

• 2-inch Focuser with 1.25-inch reduction
• Super Ploessl (SPL) Eyepieces: 25mm and 10mm (1.25-inch)
• 2x Barlow Lens (1.25-inch)
• 9x50 Finderscope with Crosshair
• HEQ-5 Parallactic Mount with GOTO SynScan system (database includes all Messier, NGC, and IC objects)
• Sturdy 1.75-inch Metal Tripod
• Accessory Tray

Warranty:

The telescope comes with a 2-year warranty, ensuring customer satisfaction and peace of mind.
