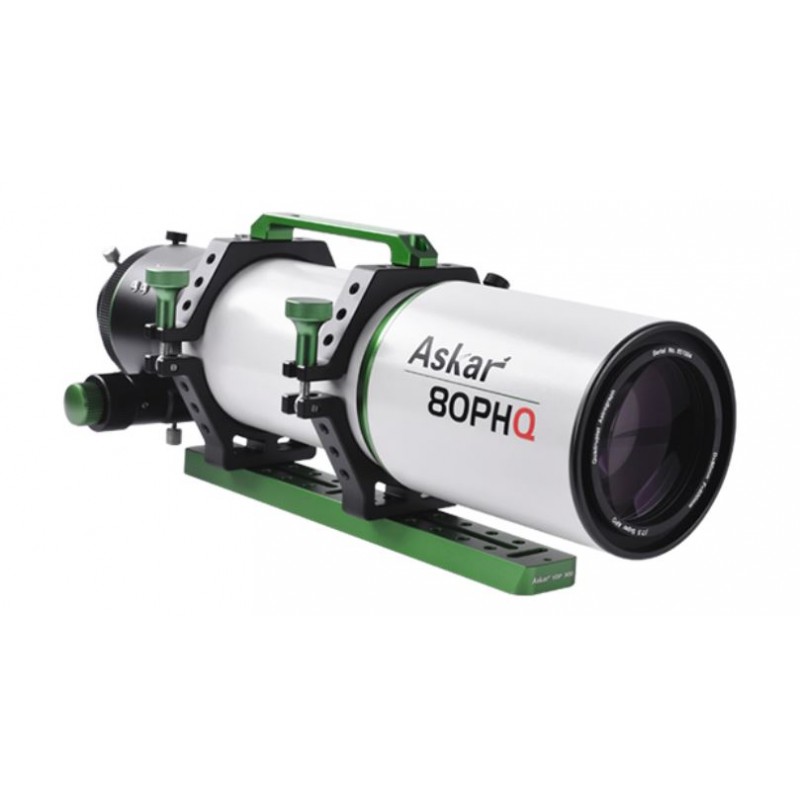

Askar 80PHQ 80/600 f/7,5 APO quadruplet

The Askar 80PHQ is an exceptional astrograph designed to cater to both amateur astrophotographers taking their first steps into the field and seasoned professionals seeking a reliable optical tube. Serving as an alternative to the 107PHQ telescope, this model offers a convenient solution for mobile observation and photography setups, requiring minimal assembly.

At the core of this telescope lies a four-element apochromatic optics system with an air gap. To ensure optimal correction of chromatic aberrations, Askar's designers incorporated a technique employed in high-end apochromats, utilizing two lenses made of low-dispersion (ED) glass. Not only does this deliver excellent color reproduction, but it also results in negligible field curvature. As a result, even without the use of an additional flattener, images at the edges of the frame remain distortion-free.

The Askar 80PHQ is not limited to astrophotography alone. With the inclusion of an angular adapter or 1.25" eyepieces, this instrument enables engaging visual observations as well.

In addition to its impeccable optical performance, the Askar 80PHQ boasts top-notch mechanical components characterized by quality and precision. The sturdy focuser allows for the installation of even the heaviest astronomical cameras, while the CNC-machined mounting rings and Vixen foot guarantee utmost stability for the tube.

Key Features of the Askar 80PHQ Telescope:

• Premium astrograph featuring two low-dispersion lenses to eliminate chromatic aberrations.
• Advanced optical design ensures excellent field curvature correction without requiring an additional flattener.
• Four-element adapter facilitates the connection of various cameras or photographic equipment.
• Full frame compatibility with a diameter of the illuminated disc covering the entire frame.
• Suitable for visual observations with the use of compatible eyepieces.

Technical Specifications:

• Optical design: Apochromatic refractor.
• Lens configuration: ED quadruplet with air gap.
• Number of low-dispersion lenses: Two.
• Front lens diameter (aperture): 80 mm.
• Focal length: 600 mm.
• Focal ratio: f/7.5.
• Diameter of full illumination circle: 44 mm.
• Full frame matrix compatibility: Yes.
• Camera/camcorder adapter: Four elements.
• Back focus for M48x0.75 thread adapter (from thread base): 115 mm.
• Back focus for M54x0.75 thread adapter (from thread base): 135 mm.
• Back focus for M68x1 thread adapter (from thread base): 155 mm.
• Back focus for M76x1 thread adapter (from thread base): 168.5 mm.
• Compatible eyepieces/angle attachments: 1.25".
• Filter installation possibility: Yes, with an M48x0.75 thread in an M52x0.75 - M48x0.75 adapter.
• Focuser diameter: 3".
• Focuser type: Rack & pinion, dual speed.
• Mounting for assembly: Vixen foot.
• Tube length with extended dew shield and adapters: 570 mm.
• Tube length with retracted dew shield and adapters: 477 mm.
• Weight of tube without accessories: 3.9 kg.
• Weight of tube with accessories: 4.7 kg.

Included Components:

• Askar 80PHQ optical tube.
• Four-element photo adapter M76 - M48.
• Mounting clamps.
• Vixen 300 mm rail.

Guarantee:

The Askar 80PHQ telescope is backed by a 24-month warranty period, ensuring peace of mind for your astrophotography endeavors.
