Askar FRA600 600/5,6 APO fi108 mm quintuplet (AS108APO)

Askar FRA represents a series of telescopes specifically crafted for astrophotography enthusiasts, boasting superior optical and mechanical quality, along with the convenience of a built-in field corrector.

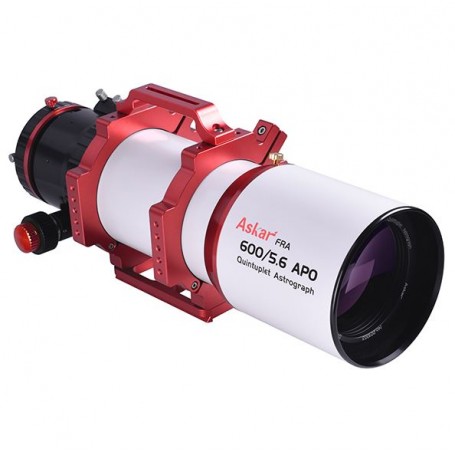

Among these remarkable telescopes is the Askar FRA600 600/5.6 APO, an exceptional astrograph that builds upon the success of its predecessor, the FRA400 model. The optical system of the Askar FRA600 consists of two lens groups comprising five lenses. To combat chromatic aberration, the manufacturer has incorporated two lenses made from low-dispersion glass. Additionally, the multilayer anti-reflective coatings applied to the glass surfaces enable the instrument to achieve excellent contrast.

This instrument offers an impressive focal ratio of f/5.6, which can be further enhanced with the use of an optional dedicated focal length reducer. The mechanical design features a robust 4.2" focuser equipped with a microfocuser, while the large diameter of the fully illuminated circle ensures compatibility with full-frame cameras and cameras equipped with a full-frame sensor.

Key Features of the Askar FRA600 600/5.6 APO Optical Tube:

• Apochromatic quintuplet with two elements made of low-dispersion (ED) glass and a built-in two-element corrector.
• 4.2" focuser diameter, allowing for precise alignment even with heavy payloads.
• Generous 66 mm diameter of the fully illuminated circle, providing coverage for full-frame sensors.

Technical Specifications:

• Optical system: ED-APO apochromatic quintuplet with an air gap.
• Number of ED glass elements: 2.
• Objective diameter: 108 mm.
• Focal length: 600 mm.
• Maximum useful magnification: 324x.
• Focal ratio: f/5.6.
• Anti-reflective coating: Full multi-layer coating (FMC).
• Diameter of the fully illuminated circle: 66 mm.
• Built-in field corrector: Yes, two-element.
• Back focus: 160 mm from the M91 thread.
• Focuser diameter: 4.2", compatible with 2" and 1.25" eyepieces.
• Eyepiece extractor type: Rack & pinion with 10:1 microfocuser and 360° rotation capability.
• Camera or camera adapter: M90x1 - M48x0.75 / M54x0.75 - M48x0.75.
• Mounting foot: Losmandy.
• Tube length: 493 mm.
• Tube diameter: 125 mm.
• Tube weight: 6.5 kg.

Included Components:

• Askar FRA600 600/5.6 APO optical tube.
• Mounting rings.
• Carrying handle.
• Losmandy standard dovetail foot.
• M90/2 eyepiece adapter.
• 2"/1.25" reducer.
• Two-section M90/M48 adapter.
• Documentation.

Warranty:

The Askar FRA600 600/5.6 APO optical tube comes with a 24-month warranty, ensuring peace of mind for your astrophotography endeavors.
