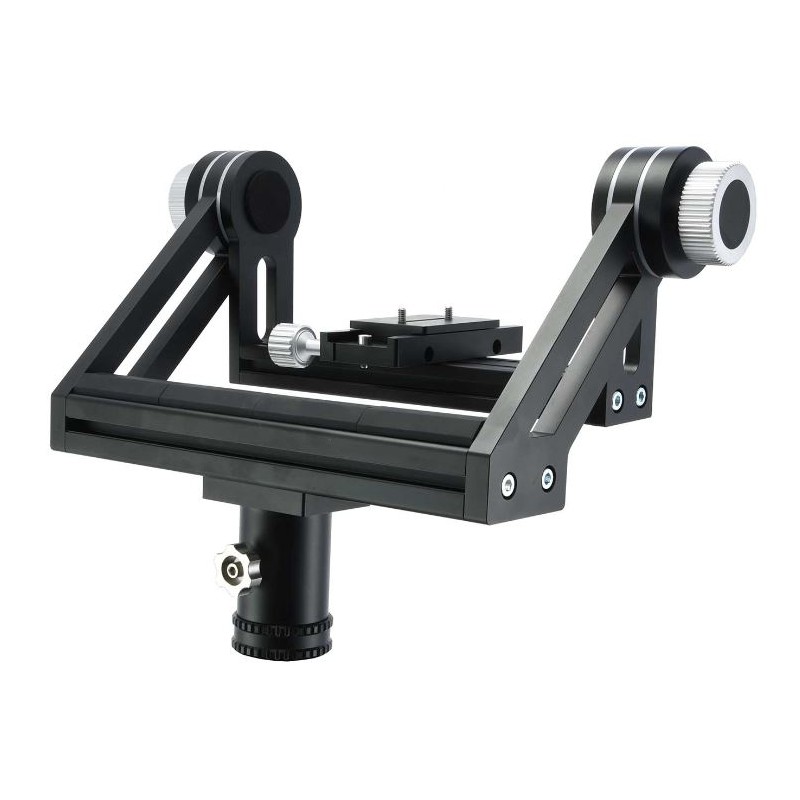

TS Optics Fork Mount Head (SKU: UFORKMOUNT)

Designed with the most discerning users in mind, the TS-Optics Fork Mount is a remarkable innovation that combines stability, ergonomic design, and unparalleled quality. With meticulous attention to detail, this fork mount weighs a mere 5 kilograms, making it an ideal choice for those seeking a portable observation setup.

Crafted from durable yet lightweight aluminum profiles, the head of the TS-Optics Fork Mount is engineered to accommodate optical instruments weighing up to an impressive 15 kilograms. This exceptional weight capacity means it can effortlessly support even the largest astronomical binoculars with apertures of up to 120 mm and medium-sized telescopes with a maximum diameter of 295 mm. Offering complete flexibility, the head can rotate a full 360 degrees and be adjusted to various heights, with a range of up to 90 degrees.

The TS-Optics Fork Mount seamlessly attaches to tripods using a 3/8" thread, ensuring compatibility with a wide range of astronomical and photographic tripods available in the market.

Key Features of the TS-Optics Fork Mount:

• Professional fork mount designed for mounting large binoculars, spotting scopes, and medium-sized optical tubes.
• Slide bearing mechanism ensures smooth and fluid rotation of the assembly.
• Sturdy construction made from black-finished aluminum, guaranteeing durability and longevity.
• Adjustable resistance in both the azimuth and altitude axes, allowing for precise adjustments.

Technical Specifications:

• Mount Type: Azimuth fork mount
• Maximum Load Capacity: 15 kg
• Maximum Optical Tube Diameter: 29.5 cm
• Azimuthal Rotation Range: 360 degrees
• Optical Tube Mount: Universal mounting plate with 1/4" photo thread/Dovetail (EQ5, Vixen GP)
• Bearings: Sliding bearings
• Mount Material: Aluminum
• Mount Finish: Black
• Tripod Mount: 60 mm diameter with 3/8" thread (alternatively: M10)
• Mount Weight: 4.6 kg
• Dimensions: 300 x 445 x 300 mm

Included Components:

• TS-Optics Fork Mount

Guarantee:

We provide a 24-month guarantee on the TS-Optics Fork Mount, ensuring your satisfaction and peace of mind.

Experience the difference with the TS-Optics Fork Mount, the epitome of stability, precision, and ergonomic design. Whether you're an avid astronomer or a passionate nature observer, this fork mount will elevate your observation experience to new heights. Invest in quality and embark on a journey of discovery today.
