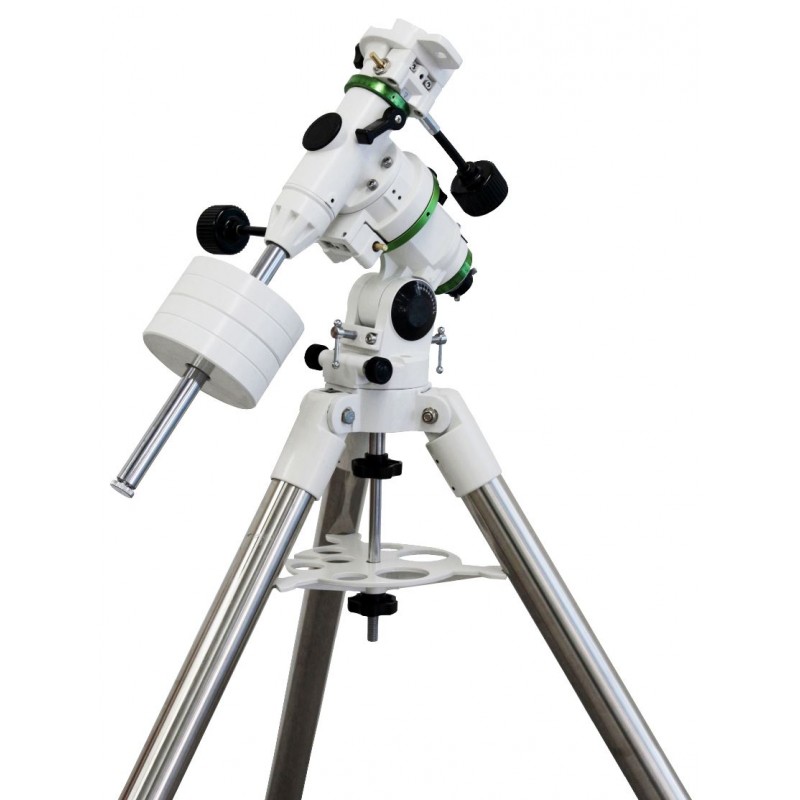

Sky-Watcher EQM-35 + NEQ-5 Mount

The SkyWatcher EQM-35 is a highly functional parallactic assembly designed for astrophotography. With the addition of a drive, this mount offers exceptional capabilities. While it shares a similar construction structure to the EQ3, the EQM-35 boasts several key differences that greatly enhance its performance.

The EQM-35 mount can be utilized in two configurations. The standard configuration allows it to function as a classic parallactic assembly with micromovements. In this setup, it can support an impressive payload of up to 10 kilograms. Moreover, the head can be easily retrofitted with GoTo and AutoGuider systems, offering enhanced tracking and guiding functionalities.

The second configuration is the travel configuration, which is achieved by dismantling the declination axis. The EQM-35 allows for simple separation of the declination block from the rest of the assembly, a process that takes just a few minutes. Once detached, the head weighs a mere 3.28 kilograms and can easily fit into hand luggage. The operation of the disassembled head is reminiscent of the StarAdventurer head, while offering even greater stability and load capacity. Furthermore, the head can be optionally equipped with an additional dovetail or ball head, enabling direct connection of a camera with a lens.

Key Features:

Two-in-One Assembly: The EQM-35 serves as both a fully functional parallactic assembly and a lightweight head suitable for easy transport over long distances.

Impressive Payload: In its parallactic configuration, the mount can support up to 10 kg of equipment, allowing for the attachment of various astrophotography gear.

Compatibility with GoTo Systems: The EQM-35 can be equipped with a GoTo system, providing automated pointing and tracking capabilities for convenient astrophotography sessions.

Lightweight Head Conversion: The mount can be quickly converted into a lightweight head configuration weighing just 3.3 kg, ideal for travel purposes. This setup is comparable to the StarAdventurer head in terms of operation, but offers even greater stability and load capacity.

High-Quality Construction: The EQM-35 features a robust steel tripod and counterweights, ensuring durability and stability during astrophotography sessions.

Technical Specifications:

• Parallactic assembly: EQ3-2 class
• Payload capacity: 10 kg
• Right Ascension (RA) gearbox: Diameter of 92.5 mm, 180 teeth, made of brass
• Declination (DEC) gearbox: Diameter of 34.3 mm
• Tripod height: Adjustable between 85 cm to 121 cm
• Counterweight rod: 20 mm diameter, made of stainless steel
• Tripod weight: 5.6 kg
• Head weight: 3.3 kg
• Counterweight weight: 3.2 kg
• Net/gross weight of the set: 20 kg/20 kg

Warranty Information:

The EQM-35 comes with an extensive warranty. The mechanics are covered for 60 months (5 years), while the electronics have a warranty period of 2 years, ensuring peace of mind and reliable performance (manufacturer's warranty).
