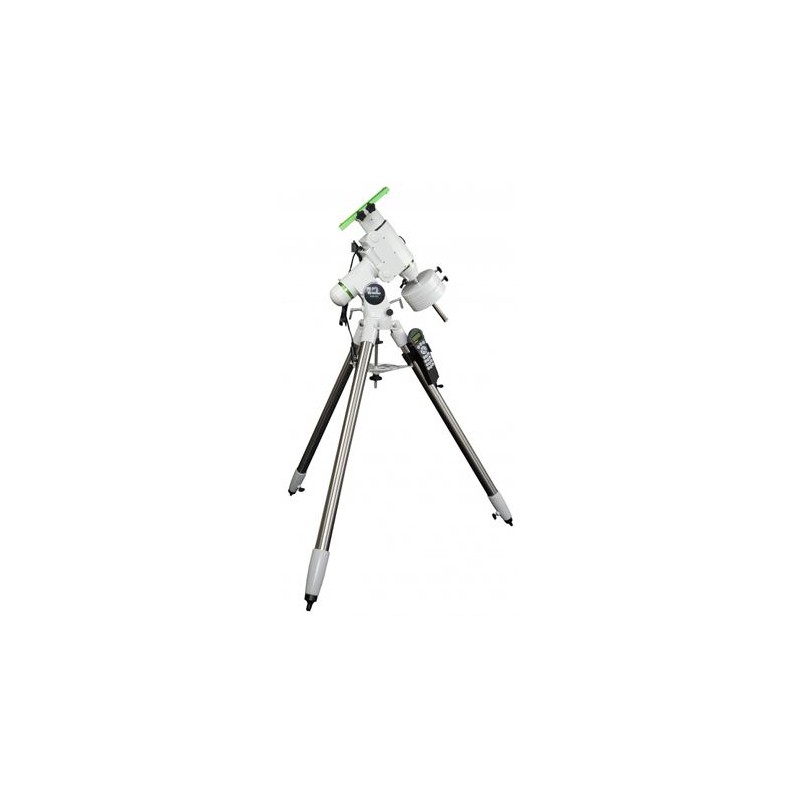

Sky-Watcher HEQ5 PRO SynScan Mount

The Sky-Watcher HEQ-5 Pro SynScan equatorial mount is specifically designed to cater to the needs of astrophotography enthusiasts and those seeking advanced visual observations. This mount offers exceptional stability while maintaining a compact and lightweight design. Equipped with two-axis drives, the GOTO SynScan computer system, a polar telescope, and secure locking clamps for both the right ascension and declination axes, this mount provides the necessary features for an enhanced stargazing experience. Additionally, it includes a built-in extendable counterweight rod and a tripod with 1.75" legs to ensure maximum stability for the entire setup.

One of the notable features of the Sky-Watcher HEQ-5 Pro SynScan is its impressive load capacity, supporting up to approximately 16 kg while weighing only 19 kg itself. The mounting of the optical tube is made easy with the standard mounting rail female "dovetail," although it's important to note that the dovetail rail is included with the optical tubes, not with the mount.

Let's take a closer look at the technical specifications:

• Maximum load capacity: Approximately 16 kg
• Mount type: German equatorial with GoTo system
• Power supply: 12VDC 2Amp
• Control interface: SynScan remote control
• Drive type: 1.8° stepper
• Resolution: 0.144 arc seconds
• Shift speeds: 2X, 8X, 16X, 32X, 64X, 400X, 500X, 600X, 800X
• Gear Ratio: 705
• Tracking speeds: Star, lunar, solar
• Dual Axis (two-axis) RA (Right Ascension) tracking mode
• Alignment procedures: One-star Alignment, Two-star Alignment, Three-star Alignment
• Vibration reduction for long-exposure photography
• Software periodic error correction (PE correction)
• Auto-Guide port for precise mount alignment with professional cameras
• Micro movements control for RA & Dec (drive controlled)
• Counterweights: 2 x 5.1 kg
• Tripod: 1.75" steel legs
• Tripod height: 85 - 147 cm
• Tripod weight: 7.5 kg
• Counterweight rod diameter: 1.8 cm
• Counterweight rod material: Stainless steel
• Mount weight without counterweights: 9 kg
• Mount weight with counterweights: 19 kg
• Mount height: 41 cm

The Sky-Watcher HEQ-5 Pro SynScan comes with a guarantee of 2 years for electronics and 5 years for mechanics, providing peace of mind for your investment.

In conclusion, the Sky-Watcher HEQ-5 Pro SynScan equatorial mount offers exceptional stability and advanced features for both amateur astrophotography and visual observations. With its impressive load capacity, compact design, and user-friendly interface, it is a reliable and versatile choice for astronomy enthusiasts. Whether you're capturing stunning images or exploring celestial wonders, this mount is a valuable tool for enhancing your astronomical pursuits.
