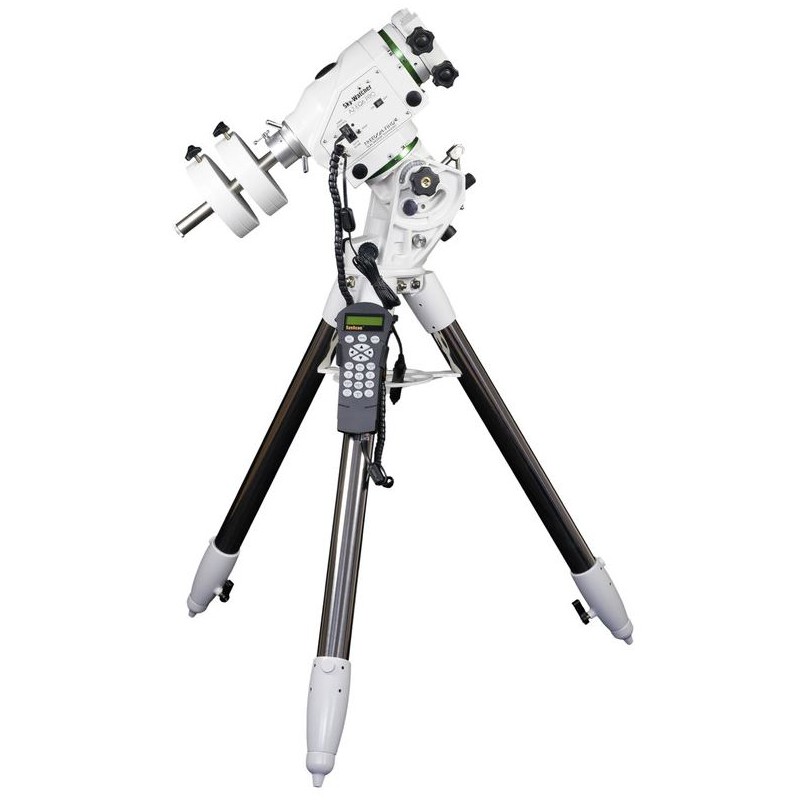

Sky-Watcher AZ-EQ6 GT / GoTo SynScan (aka AZ-EQ6 PRO) with Wi-Fi

The astronomical mount market welcomes an innovative addition with the introduction of the Sky-Watcher AZ-EQ6 GT mount. This remarkable structure is designed to function seamlessly in both the parallax and azimuthal systems, making it a versatile and dependable choice for astronomers. Built upon the renowned and proven EQ6 design, the AZ-EQ6 mount has been modified and modernized to provide an exceptional observing experience.

One of the standout features of the AZ-EQ6 assembly is its ability to deliver the same impressive load capacity and rigidity as the classic EQ6 SynScan version, while weighing 25% less. Historically, the weight of EQ6 mounts has been a limiting factor in terms of mobility, but this new design addresses that concern, significantly enhancing portability.

Weighing just 15 kg for the head and 7.5 kg for the tripod, the AZ-EQ6 mount boasts a substantial load capacity of 20 kg (excluding counterweights) in the parallactic position. To facilitate seamless operation, the mount is equipped with the GoTo SynScan system, featuring an extensive database of 42,900 celestial objects. Additionally, the AZ-EQ6 assembly offers a unique feature: the ability to connect two telescopes simultaneously in an arrangement resembling giro heads when in the azimuth position.

The mount incorporates a dual encoder system, enabling manual rotation of the head without requiring the GoTo system to be reset. Furthermore, the assembly is equipped with saddles that accommodate both Vixen standard and Losmandy type dovetail rails.

Key Features:

Equatorial and azimuthal system compatibility

PPEC (Permanent Periodic Error Correction)

Smooth belt transmission for improved operating characteristics and reduced play

SLR camera control via the cable release socket on the head

High precision motor controllers

Two saddles with double dovetail mounts included (Vixen and Losmandy)

Enhanced power socket

Polar axis alignment options: telescope-based or utilizing the GoTo system

Double encoder system

Technical Specifications:

• Mounting type: Azimuthal/Parallactic
• Micro-movements: Electronic, controlled by the GoTo remote control
• Counterweights: 2 x 5 kg
• Motors: Hybrid stepper motors, 1.8-degree step
• Guidance accuracy: 0.14 arcsec (angular second)
• RA gear: Diameter = 92.5 mm, 180 teeth, brass
• Dec gear: Diameter = 40 mm, steel
• Autoguider port: ST-4
• Alignment modes: 1, 2, or 3 stars (EQ), 2 stars (AZ)
• GoTo system: SynScan WiFi
• Control via SynScan smartphone application using a WiFi network
• USB port in the head: Yes (USB-B)
• Latitude range: 10 to 70° and 90°
• Azimuth adjustment range: +/- 9°
• Tripod height: 127 cm
• Tripod legs: Steel, 2"
• Tripod weight: 7.5 kg
• Packed assembly weight: 21 kg + 15 kg
• External packaging dimensions: 117x28x21 cm + 100x50x50 cm (two boxes)

Warranty:

Enjoy peace of mind with a 2-year guarantee for electronics and a 5-year guarantee for mechanics.

(Note: The 2022 version no longer includes a remote control but offers WiFi communication for added convenience.)
