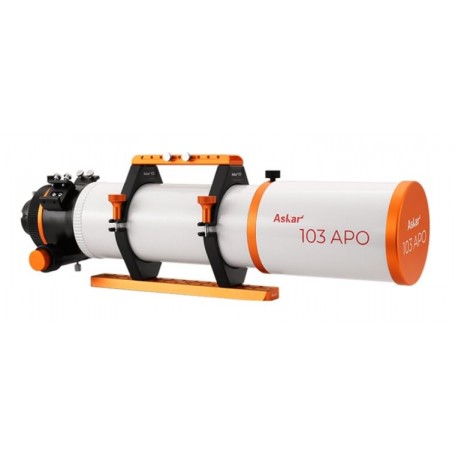

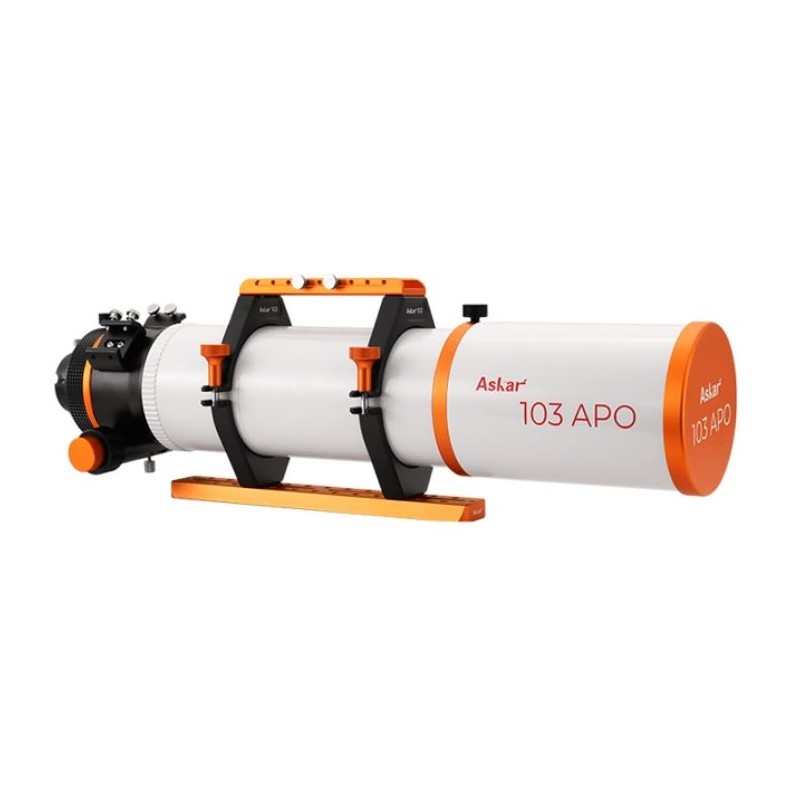

Askar 103 APO f/6.8 103/700 Modular Astrograph Telescope

The Askar 103 APO is a highly versatile modular astrograph, perfect for both experienced astrophotographers and enthusiastic visual observers. With its outstanding optical features, this telescope offers an unparalleled stargazing experience.

Exceptional Optical Quality

Designed as a classic apochromatic triplet with an air gap, the Askar 103 APO ensures impeccable chromatic aberration correction. Featuring a low-dispersion (ED) glass lens inspired by top-tier apochromats, it delivers optimal performance. The interior of the tube is equipped with a comprehensive bubble system and a matte finish to prevent unwanted reflections, ensuring pristine image quality.

Dual Purpose Functionality

While excelling in astrophotography, this telescope also supports visual observations. Easily attach a 1.25" or 2" angle attachment or glasses for a seamless transition between photography and observation.

Robust Mechanical Components

The Askar 103 APO not only boasts exceptional optics but also features precision-engineered mechanical components. A robust focuser supports even the heaviest astronomical cameras, and CNC-machined mounting rings paired with a Vixen foot ensure stable tube mounting.

Key Features:

• Top-Tier Optics: Low-dispersion APO optics for exceptional image quality.
• Modular Design: Achieve maximum light intensity at f/4.
• Double Accessory Foot: Provides enhanced stability and versatility.
• Ultra-Light Mounting Clamps: Ensure secure mounting with a Vixen foot.
• Visual Observations: Suitable for both astrophotography and visual use.

Technical Specifications:

• Optical Design: Apochromatic refractor.
• Lens System: ED triplet with air gap.
• Low-Dispersion Lenses: One.
• Front Lens Diameter (Aperture): 103 mm.
• Focal Length: 700.4 mm.
• Aperture: f/6.8.
• Compatible Accessories: 1.25" and 2" glasses/angle attachments.
• Extractor Diameter: 3.3".
• Focuser Type: Rack & pinion with a 10:1 gear ratio.
• Rotator: Offers 360° rotation.
• Mounting Bracket: Vixen foot.
• Tube Length (Extended/Folded): 600 mm / 71 mm.
• Tube Weight (Without Accessories/With Accessories): 4.75 kg / 5.5 kg.

Included in the Set:

• Askar 103 APO Optical Tube
• Mounting Clamps
• 290 mm Vixen Foot
• Transport Cover
• Documentation

Rest assured, your investment is protected by a 24-month guarantee. Explore the universe with confidence and precision using the Askar 103 APO telescope, your gateway to the wonders of the night sky.
