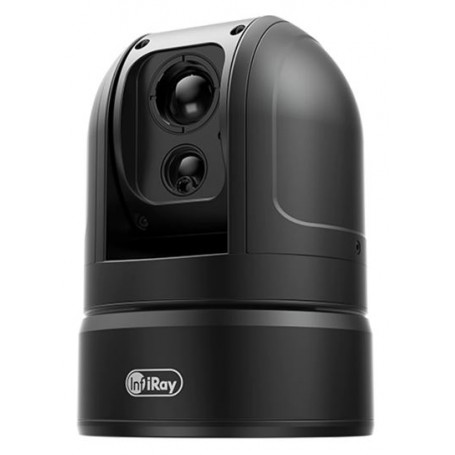

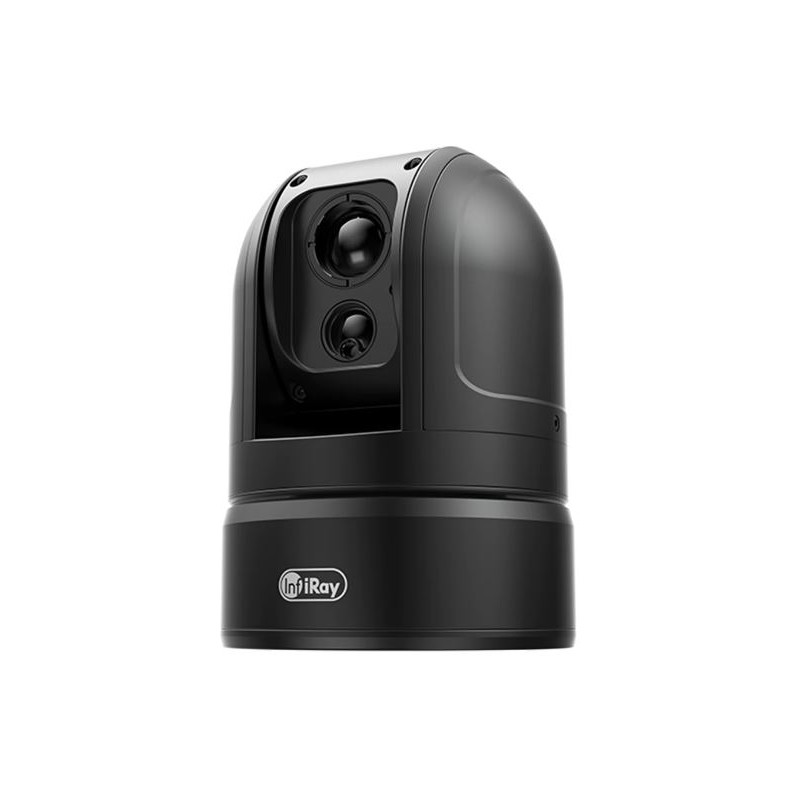

InfiRay Dome Thermal Camera Series M6 T25

M6 Series is a vehicle mounted PTZ thermal camera system developed for outdoor hunting, search, and rescue. It can rapidly be installed on the vehicle roof by a pressurized suction cup or securely mounted on a rack.

Higher Image Quality

640*512 high-resolution and 50Hz no-stuttering infrared sensor, the image is clear, smooth, and delicate.

360° Continues Rotation

360° continuous rotation in horizontal and 90°~-90° in pitch. Directly drive by brushless motor, with low noise and stable performance.

Multiple Output Interface

Adopt standard monitoring input and output interface, support analog video output, H.264 network output, PELCO-D control protocol. It can be easily connected to home or land monitoring system.

Extreme Temperature Resistance

IP56 Rating makes it suitable for extreme weather.  It has a wide operating temperature range (between -20~60℃) ，can suit any conditions. Equipped with a IP69K Rating Waterproof design to protect against dust and rain.

Modle M6T25

Detector   Specifications

Type Vox

Resolution,   pixels 640×512

Pixel size,μm 12

Spectrum   Range,μm 8~14

NETD，mk ≤50

Frame rate,   Hz 50

Optical   Specification

Objective   Lens，mm 25

Field of   View（H×V），° 17.5×14.0

Imaging Range ≥3

Digital   Zoom，x 1 / 2 / 4

Image   Processing Digital filter noise   reduction / digital detail enhancement

Camera

Azimuth Range 360° continuous   rotation

Pitch Range 90°～+90°

Physical   Specification

Wi-Fi/APP Support (InfiRay   outdoor)

IP Rating IP56

Operating   Tempeture，℃ -20～+60

Weight，g 2000

Dimension，mm φ133mm, 188mm high

Functions

Laser Pointer Yes

Laser   Rangefinder Yes
