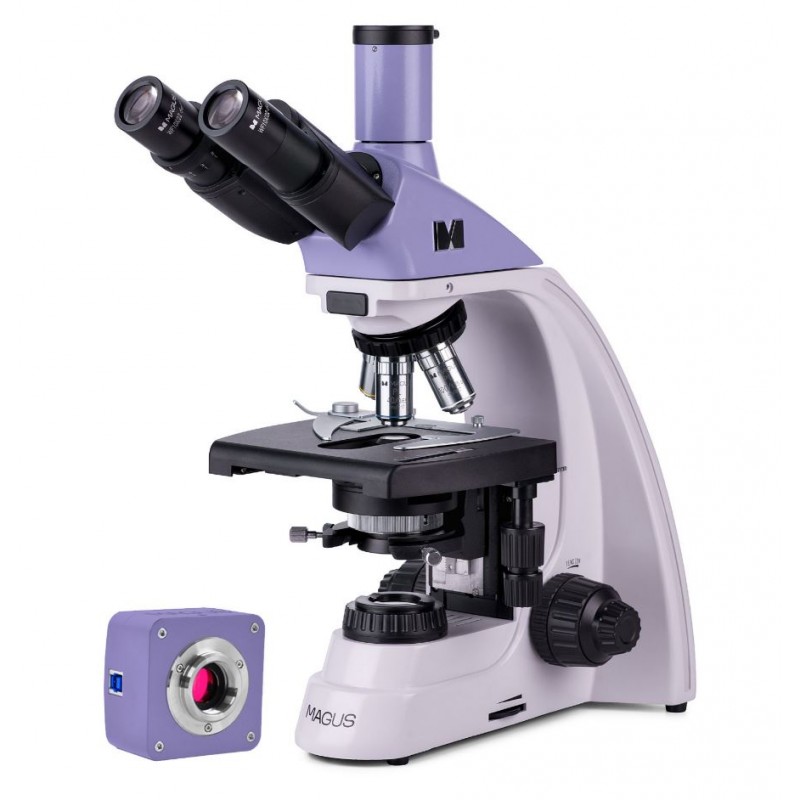

MAGUS Bio D250TL Biological Digital Microscope

The MAGUS Bio D230TL biological microscope is an essential tool in a sanitary control laboratory as well as a diagnostic or research center. The microscope has a trinocular head and a transmitted light source (LED), and it is suitable for observing translucent and transparent samples. In the basic configuration, the brightfield technique is used for observations. With additional accessories, microscopy techniques, such as darkfield, polarized light, and phase contrast, are available for further research.

Digital camera

The MAGUS CDF50 digital camera is designed for the brightfield microscopy technique. It offers a low noise level and high light sensitivity. The camera is equipped with a 2.1MP sensor and delivers realistic Full HD images (1920x1080px) when observing with 40x, 60x, and 100x objectives. Video is recorded at 96fps at maximum resolution: It is smooth, with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with moving objects and is suitable for classroom demonstrations. The camera is equipped with a USB3.0 interface. The data transfer speed is 10 times faster than USB2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.

Optics

The observation tubes can rotate 360°, which enables you to adjust the eyepieces to fit the height of the observer. It is possible to adjust the diopter settings for the left tube. There is a vertical tube for mounting a digital camera (not included).

The microscope uses infinity achromatic objectives, and 5 objectives can be mounted simultaneously into the nosepiece. One slot is left free for adding an additional objective. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objectives inserted into the optical path. The magnification range of the microscope is 40 to 1000x, the upper limit can be increased up to 1500, 1600, or 2000x with additional eyepieces.

Illumination

Thanks to the LED bulb, the color temperature does not change when adjusting the illumination. The LED bulb is 3W with a lifespan of 50,000 hours, and it is powered by the AC power supply.

The Abbe condenser has a slot for a darkfield or phase slider. With sliders, switching between microscopy techniques is much faster. The microscope is also equipped with a field diaphragm for setting up the Köhler illumination. The condenser is height-adjustable and can be centered.

Stage and focusing mechanism

The movement of the specimen is smooth and accurate. The mechanical attachment can be removed from the stage if needed (e.g., manual scanning). Moreover, a stage without a positioning rack is easier to work with.

The focusing knobs are coaxial and located on each side of the microscope so that the user can place their hands freely on the table. There are fine and coarse focusing knobs. The mechanisms move smoothly and, therefore, no further effort is required. There is a coarse focusing tension adjusting knob and a coarse focusing lock knob.

Accessories

Optional accessories expand the capabilities of the MAGUS Bio D230TL microscope depending on specific applications. These include eyepieces, objectives, dark field and phase contrast condensers, polarization devices, digital cameras, calibration slides, etc.

Key features of the microscope:

• Trinocular head with a vertical tube for camera, 360° rotation, diopter adjustment on the left tube
• Revolver for 5 objectives, infinity achromatic objectives
• Observations in transmitted light, light source – 3W LED lasts a long time
• Coaxial coarse and fine focusing knobs, coarse focusing tension adjusting knob, coarse focusing lock knob
• The condenser with a slot for a phase or darkfield slider
• Option to install additional accessories

Key features of the camera:

• For brightfield and darkfield microscopy with 40x, 60x, and 100x objectives; large pixel camera with 8935mV light sensitivity with 1/30s for darkfield microscopy observations at high magnification
• The camera resolution is 1920x1080px: an ideal choice for displaying images on a Full HD monitor
• 96fps for observing objects that are moving, recording video and moving the sample without jerkiness or delays
• SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
• USB3.0 interface for fast, smooth data transfer
• Software with photo, video recording, editing, external display functions, linear and angular measurements

The kit includes:

• MAGUS CDF50 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
• Base with a power input, transmitted light source, focusing mechanism, stage, condenser, and revolving nosepiece
• Trinocular head
• Infinity achromatic objective: 4x/0.1
• Infinity achromatic objective: 10x/0.25
• Infinity achromatic objective: 40x/0.65 (spring-loaded)
• Infinity achromatic objective: 100x/1.25 (spring-loaded)
• Eyepieces 10x/18mm with a long eye relief (2 pcs.)
• Eyecups (2 pcs.)
• Filters (4 pcs.)
• C-mount camera adapter
• Bottle of the immersion oil
• Hex key wrench
• AC power cord
• Dust cover
• User manual and warranty card

Specifications

Product ID 83010

Brand MAGUS

Warranty 5

EAN 5905555018065

Package size (LxWxH) 43.1x27.1x63

Shipping Weight 11.1

Microscope specifications

Type biological, light/optical, digital

Head trinocular

Nozzle Gemel head (Siedentopf, 360° rotation)

Head inclination angle 30 °

Magnification, x 40–1000 basic configuration (*optional: 40–1200/1250/1500/1600/2000/2500)

Eyepiece tube diameter, mm 30

Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)

Objectives infinity plan achromatic: 4x/0.1; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance: 45mm (*optional: 20x/0.4; 60хs/0.80)

Revolving nosepiece for 5 objectives

Working distance, mm 21 (4x); 5 (10x); 0.66 (40xs); 0.36 (100xs); 8.8 (20x); 0.465 (60xs)

Interpupillary distance, mm 48 — 75

Stage, mm 180x150

Stage moving range, mm 75/50

Stage features two-axis mechanical stage, without a positioning rack

Eyepiece diopter adjustment, diopters ±5 (on the left tube)

Condenser Abbe condenser, N.A. 1.25, center-adjustable, height-adjustable, adjustable aperture diaphragm, a slot for a darkfield slider and phase contrast slider, dovetail mount

Diaphragm adjustable aperture diaphragm, adjustable iris field diaphragm

Focus coaxial, coarse focusing (21mm, 39.8mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.002mm)

Illumination LED

Brightness adjustment yes

Power supply 220±22V, 50Hz, AC network

Light source type 3W LED

Light filters yes

Operating temperature range,°C 5...+35

Ability to connect additional equipment phase contrast device (condenser and objectives), darkfield condenser (dry or oil), polarization devices (polarizer and analyzer)

User level experienced users, professionals

Assembly and installation difficulty level complicated

Application laboratory/medical

Illumination location lower

Research method bright field

Pouch/case/bag in set dust cover

Weight, kg 8

Dimensions, mm 200x436x400

Camera specifications

Sensor SONY Exmor CMOS

Color/monochrome color

Megapixels 2.1

Maximum resolution, pix 1920x1080

Sensor size 1/1.2'' (11.14x6.26mm)

Pixel size, μm 5.8x5.8

Light sensitivity 8935mV with 1/30s

Signal/noise ratio 0.6mV with 1/30s

Exposure time 0.014ms–15s

Video recording yes

Frame rate, fps at resolution 96@1920x1080

Place of installation trinocular tube, eyepiece tube instead of an eyepiece

Image format *.jpg, *.bmp, *.png, *.tif

Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)

Spectral range, nm 380–650 (built-in IR filter)

Shutter type ERS (electronic rolling shutter)

White balance manual, automatic

Exposure control manual, automatic

Software features image size, brightness, exposure time

Software MAGUS View

Output USB 3.0, 5Gb/s

System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB3.0 port, CD-ROM, 17" or larger display

Body CNC aluminum alloy

Camera power supply DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element

Camera operating temperature range, °С -10...+50

Operating humidity range, % 30 — 80
