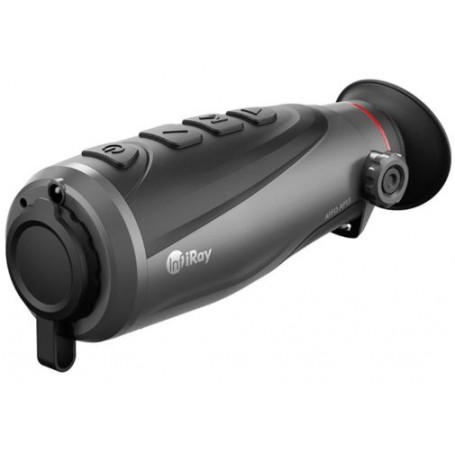

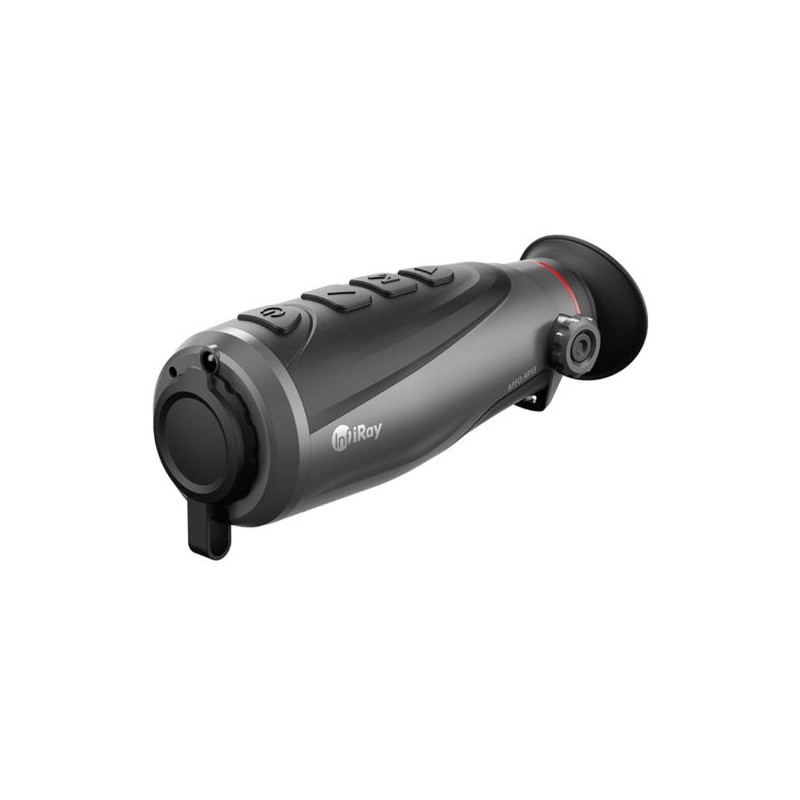

Infiray AP13 R+ AFFO Series Thermal Monocular

Introducing the AFFO Series handheld thermal imaging monocular, designed with hunting enthusiasts in mind, offering a blend of style and practicality in a compact form. Utilizing our proprietary 12μm detector, this entry-level device delivers clear imaging capabilities while boasting convenient features like photo capture and video recording, all stored effortlessly with its 8GB built-in storage.

High-Performance Detector

Employing a 12μm uncooled Vox thermal imaging sensor, the AFFO Series ensures high-definition images for enhanced clarity.

Sleek Design & Compact Build

Crafted with ergonomic curves to fit comfortably in your hand, its compact size makes it ideal for on-the-go adventures.

HDMI Connectivity for HD Display

Equipped with an HDMI interface for seamless HD video display on external devices, offering crisp visuals and audio transmission simultaneously.

Extended Battery Life

Featuring low-power components, the AFFO Series delivers up to 9.5 hours of operational battery life, ensuring prolonged usage.

Additional Practical Features

Including stadiametric rangefinding and PIP (Picture-in-Picture) for enhanced hunting experiences, along with versatile charging adapters for global use.

Enhanced Imaging Modes

Offering various imaging modes like hot target highlight, with options for white hot, black hot, red hot, and color palettes, alongside wider temperature ranges and hotspot tracking functionality.

Upgraded Protection

With improved lens protection and waterproofing, ensuring durability and reliability in outdoor conditions.

Ample Storage Capacity

Boasting a generous 8GB built-in memory, allowing for extensive recording during prolonged hunting sessions.

In the box:

• AFFO AP13 R+
• Operating Manual
• USB Cable
• HDMI Cable
• Power Adapter
• Neck Strap
• Lens Cloth
• Drawstring Bag

Specifications:

Type: Uncooled Vox

Resolution: 256×192

Pixel Pitch: 12μm

NETD: ≤ 40 mK

Frame Rate: 25 Hz

Objective Lens: 13mm

Field of View (FOV): 13.5°×8,4°

Magnification, x 2.0

Digital Zoom: 1 / 2

Diopter: -7 ~ +2

Detection Range: 670m

Type: AMOLED

Resolution: 640x400

Battery Type/Capacity/Output Voltage: Built-in lithium-ion battery / 3.6Ah / 3.6V

Working Hours: 9.5 hours (at 22°C)

External Power Supply: 5V (Type C)

Ingress Protection Rating: IP67

Memory Capacity: 8GB

Wi-Fi/APP: Support (InfiRay outdoor)

Operating Temperature: -20°C to +50°C

Weight: <340g

Dimensions: 160×60×60mm
