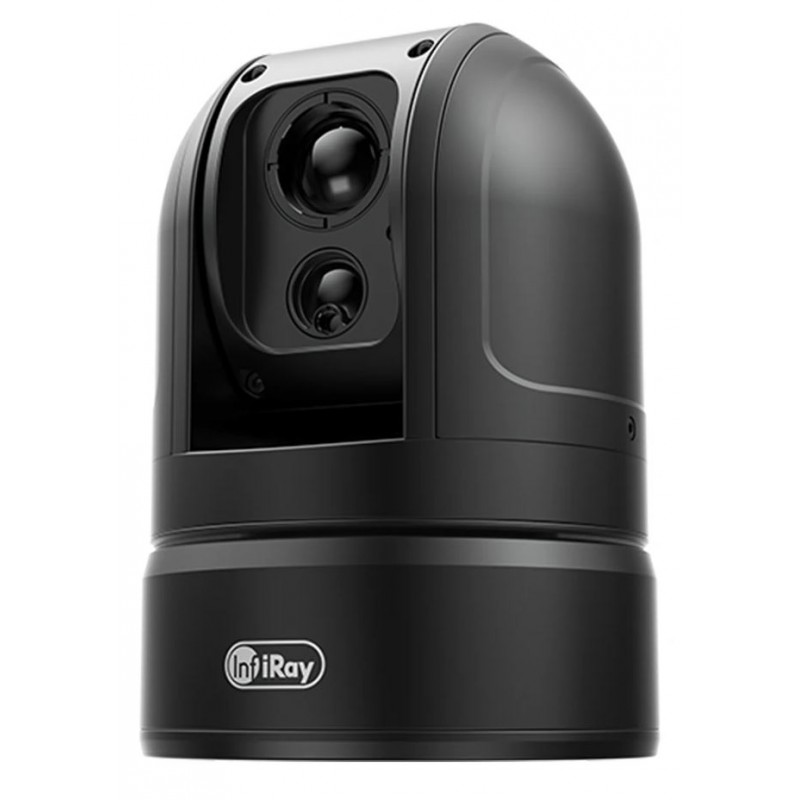

InfiRay Dome Thermal Camera Series M6 T25S

The M6 Series is a vehicle-mounted PTZ thermal camera system developed for hunting, search and rescue. It can be quickly installed on the roof of a vehicle using a pressure suction cup or securely mounted on a tripod.

Higher image quality

A high-resolution infrared sensor 640 x 512 and 50 Hz make the image clear, smooth and sensitive.

360° rotation angle

With a horizontal viewing angle of 360° and a vertical viewing angle of 90° ~ -90°, the camera achieves a panoramic view, effectively eliminating blind spots. Direct drive by brushless motor makes the unit operate quietly and with stable performance.

Interface with multiple output types

The standard output interface used allows support for analogue video output, H.264 network output, and PELCO-D control protocol. With this solution, it can be easily connected to a home or site monitoring system.

Resistant to extreme temperatures

The IP56 protection rating makes it suitable for extreme weather conditions. It has a wide operating temperature range (between -20 ~ 60 ℃), so it can adapt to any conditions. It features an IP69K waterproof design to protect against dust and rain.

Model M6T25

Detector specifications

Vox type

Resolution, pixels 640 x 512

Pixel size, μm 12

Spectral range, μm 8 ~ 14

NETD, mk ≤50

Frame rate, Hz 50

Optical specifications

Objective, mm 25

Field of view (H x V), ° 17.5 × 14.0

Imaging range ≥3

Digital zoom, x 1 / 2 / 4

Image processing Digital filter noise reduction / Digital detail enhancement

Camera

Horizontal pan range 360°

Vertical swivel range 90°~-90°

Physical Specifications

Wi-Fi / Application support (InfiRay Outdoor)

IP56 rating

Operating temperature range -20 ~ +60

Weight, g 2000

Dimensions, mm φ133mm, height 188mm

Features

Laser pointer Yes

Laser rangefinder Yes
