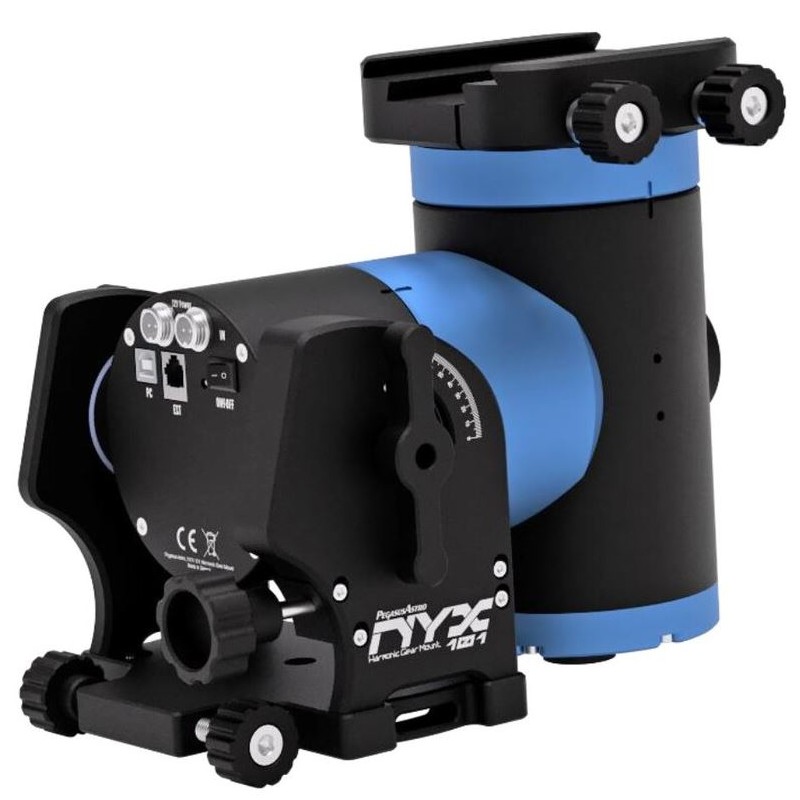

PegasusAstro NYX-101 Harmonic Geared Mount

Nyx, the ancient Greek goddess of the night, has inspired us to engineer and manufacture a robust mount capable of supporting imaging equipment weighing up to 20 Kg without the need for counterweights or shafts.

Utilizing strain wave (harmonic) drive technology on both the Right Ascension (RA) and Declination (DEC) axes ensures smooth, backlash-free operation with ample torque even at high payloads.

Crafted from fully CNC machined aluminum alloy, the Nyx-101 boasts a sleek black and blue anodized finish. Branded components such as stepper motors and strain wave gears ensure enduring performance over many years of use.

The mount features an electronic brake on the RA axis to prevent backsliding when power is off, along with safety limit stops during slewing or tracking. Operating on just 12 volts, it offers smooth functionality, with the power cable securely locking onto the mount.

A special USB type B socket ensures a secure connection, while both sockets are positioned on the non-movable part of the mount, eliminating cable movement during slewing and tracking. Additionally, the mount incorporates a barometric and temperature sensor necessary for calculating atmospheric refraction corrections during tracking.

Included is a low-profile, rigid universal saddle that accommodates Vixen and Losmandy 3-inch dovetails. An ST-4 port at the rear supports plug-in of a simple hand controller or guiding camera.

FEATURES

• Strain Wave Gears on Both Axes
• Equatorial or Altazimuth Mode
• No Counterweights Required (Up To 20 Kg)
• Power-Off Brake on RA Axis
• Built-In Wireless & USB Control
• Operates on DC 12 Volts Battery
• Secure Power and USB Sockets
• Integrated ST-4 Autoguiding Port
• Polemaster Adapter
• Electronic Level Assistant
• Reverse Polarity Protection
• Safety Limits on RA Axis

COMPATIBLE WITH

ASCOM 6

INDI

Sky Safari

LX200

SPECIFICATIONS

Capacity

Max. Additional Load Capacity (kg): 20

Interfaces

USB & ST4 Cable

Mounting Saddle

Losmandy & Vixen

Weight (Mount Head Only) (kg): 6.5

Input Voltage: 12 Volts

Amperage (A): 5

Cable Guide: Internal

Declination Axis Material: Aluminum

Right Ascension Axis Material: Aluminum

Drive Type: Harmonic / Strainwave

Special Features

GoTo System: Yes

Hand Controller: No

Level: -

Equipment

Tripod: Without Tripod

Transport Cases: No

Pole Finder: No

General

Type: Mount

Type of Build: Equatorial

GoTo Control

GPS: No

WIFI: Yes

PEC Correction: No

Polar Alignment: Easy Polar Alignment

GoTo Language: English

Software: SkyPortal

Autoguiding: Yes

Interfaces: Autoguider ST-4
