PegasusAstro Motor Focus Kit v2 (Universal)

Achieve precise and rapid focusing for your telescope with our robust Motor Focus Kit. Featuring a high-resolution geared motor, this kit ensures accuracy with a 0.06-degree step size and the ability to effortlessly lift over 6 kg per cm. Its high torque capability makes it ideal for handling heavy imaging equipment, while the low backlash gearbox can be finely tuned using imaging software's backlash compensation feature.

The kit includes an L-shaped black anodized aluminum bracket, designed for durability with cut rails for easy attachment to a wide range of focusers.

Inside the box, you'll find:

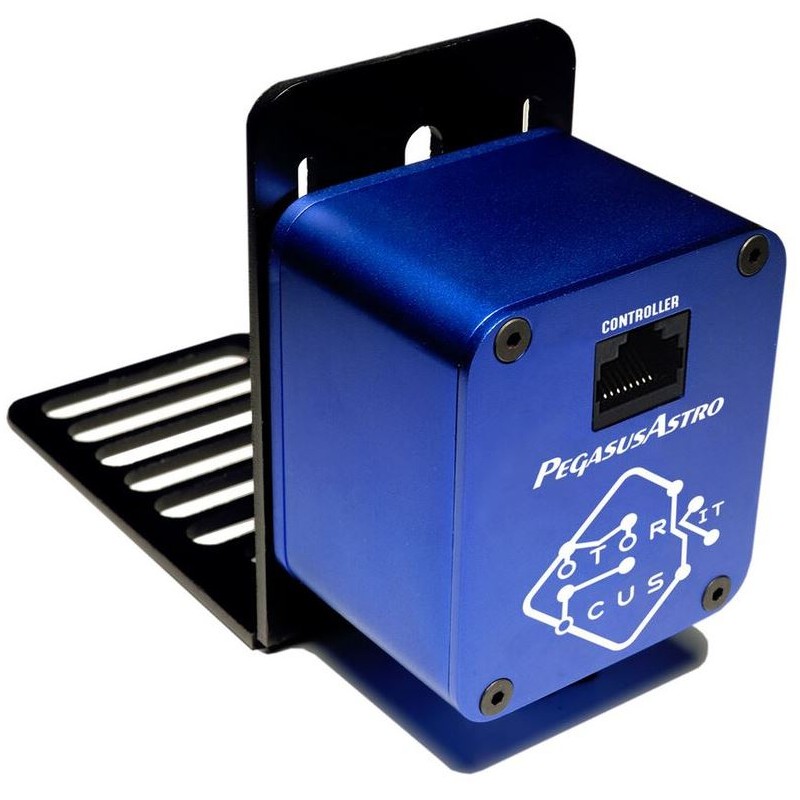

• High-resolution stepper geared motor enclosure (Step Angle 7.5 degrees, Deg 120, Gear Ratio 1:120) with a low backlash gearbox for micron-scale focusing precision.
• Universal black anodized aluminum L-shaped bracket for motor mounting.
• Motor coupler (5mm to 10mm) with 3 grub screws for secure attachment.
• Various sizes of bolts and spacers for versatile installation options.

Please note: You'll need a stepper controller to operate the motor. We recommend using the PegasusAstro Dual Motor Focus Controller DMFC. Alternatively, the motor can be controlled with the PegasusAstro Ultimate Powerbox v2 Hub (additional RJ45 to RJ45 cable required).

SPECIFICATIONS:

Appropriate for: Universal compatibility

Input voltage: 12V

Motor type: Stepper motors

Amperage (A): 0.27

Weight: 300g

Type: Focuser

Type of build: Motors & Controls
