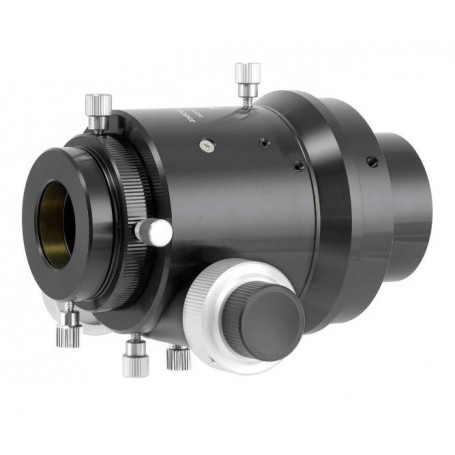

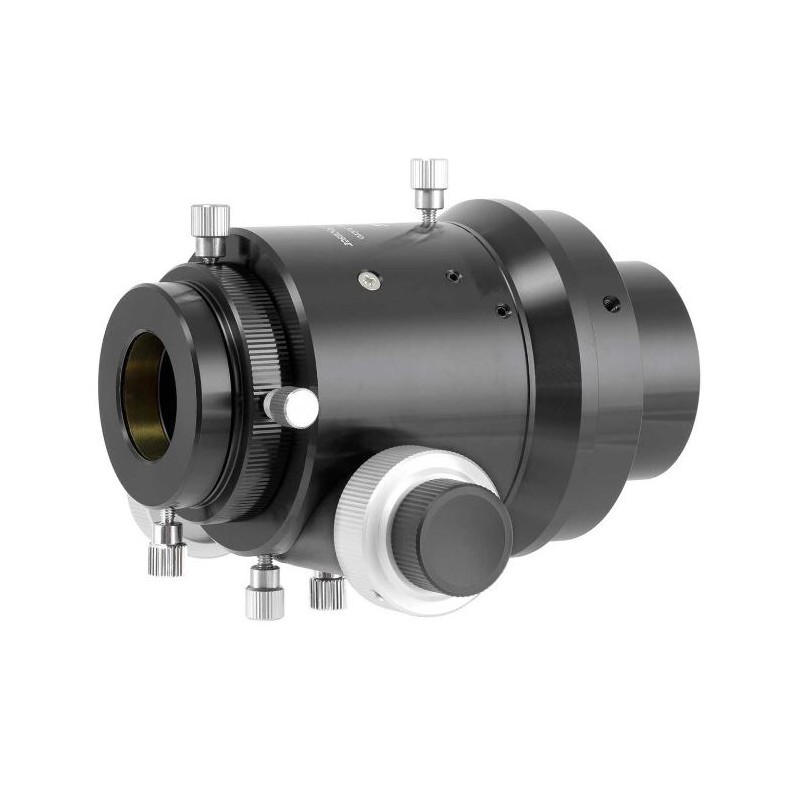

TS Optics Focuser Crayford 2"

2" Crayford focuser with 1:10 transmission designed for refractors.

216.85 $
Tax included

176.3 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

2" Crayford focuser with 1:10 transmission designed for refractors.

This solid, ball-bearing focuser is ideal for amateur telescope making (ATM) projects or upgrading refractors equipped with basic focusers. Its standout feature is its remarkably smooth operation.

Load Capacity:

Capable of holding payloads up to approximately 2.5 kg, making it suitable for heavier cameras and accessories.

Adjustment:

  • The knurled screw on the eyepiece side adjusts the drawtube's resistance, allowing it to accommodate heavier loads without slipping.
  • The knurled screw on the telescope side secures the drawtube when tightened, particularly useful for astrophotography.

Micro Transmission:

Features a 1:10 micro transmission for ultra-fine adjustments. Rotating the micrometer screw by 10° moves the drawtube by only 0.038mm.

Telescope Side Adaptations:

Comes with an included adaptor with an inner diameter of 86mm, suitable for telescopes like Skywatcher 80mm and 90mm refractors, as well as Celestron 80mm refractors.

TS Optics is a brand of Teleskop-Service.



SPECIFICATIONS

Capacity

Appropriate for: Refractors

Connection (to the telescope): 86mm

Connection (to eyepiece): 2"

Draw Tube Travel (mm): 74

Gear Reduction: 1:10

Optical Length (mm): 87.5

Load Capacity (kg): 2

Special Features

Ring Clamp: Yes

Fine Adjustment: Yes

Equipment

Eyepiece Adaptor: 1.25" - 2"

General

Type: Focuser

Type of Build: Crayford

Weight (g): 860
