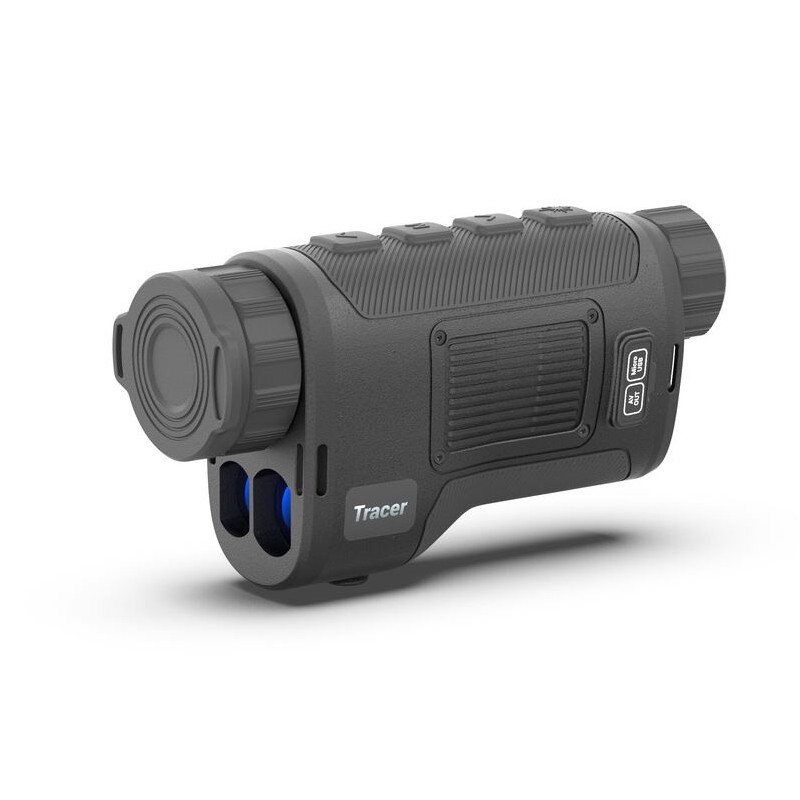

Conotech Thermal imaging camera Tracer LRF 25 Pro
Tracer LRF series thermal cameras come with an integrated laser rangefinder, boasting a remarkable range of up to 1000 meters and a precision measurement accuracy of ± 1 meter.
969.66 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
Tracer LRF series thermal cameras come with an integrated laser rangefinder, boasting a remarkable range of up to 1000 meters and a precision measurement accuracy of ± 1 meter. Powered by a highly sensitive thermal image Vox sensor with NETD 30mK, these cameras pierce through challenging environmental conditions such as snow, dust, smoke, fog, and haze, ensuring target detection in various scenarios including hunting, observation, security, terrain orientation, and search and rescue operations.
Features:
- Sensitive thermal sensor 12um 384x288
- Integrated laser rangefinder 5-1000m (±1m) (eye-safe: Class 1 laser)
- LRF modes: Single time measurement | Scanning | Smooth digital zoom
- Smooth viewing with a 50Hz frame rate
- Built-In battery pack for extended operation time up to 8 hours
- High protection rating (IP67)
- On-Board photo & video recorder
- Video output (USB)
- 32GB Internal memory
- Built-In WiFi module with functional App
- Power saving "Standby" Mode
- Multiple color, display & observation modes
- Fast start-up
- Image Enhancement Mode (DDE)
- Ergonomic design with centralized controls
- Focusable lenses
SPECIFICATIONS:
Type of Build: Monocular
Technology: Thermal imaging camera
Magnification: 2.4x
Front Lens Diameter: 25mm
Maximum Operating Distance: 1750m
Detection Distance: 600m
Objective: F25/1.1
Sensor Resolution: 384x288 pixels
Sensor Type: VOx
Pixel Size: 12um
Image Display: Various versions available
Image Cycle Rate: 50Hz
Temperature Resolution: < 35mK
Battery Durability: Up to 8 hours
Display Resolution: 1024x768 pixels
Special Features:
Infrared illuminator
Digital imaging
Video connection
Splash-proof
Ancillary lenses available
Field of View:
True Field of View: 10.6° x 7.9°
Close Focus Limit: 5m
Area of Application:
Object protection & observation
Hunting & nature observation
Navigation & Fishing
Cave exploration & Camping
General:
Color: Granite Grey
Length: 153mm
Width: 50mm
Height: 92mm
Weight: 530g
Series: Tracer
Data sheet
