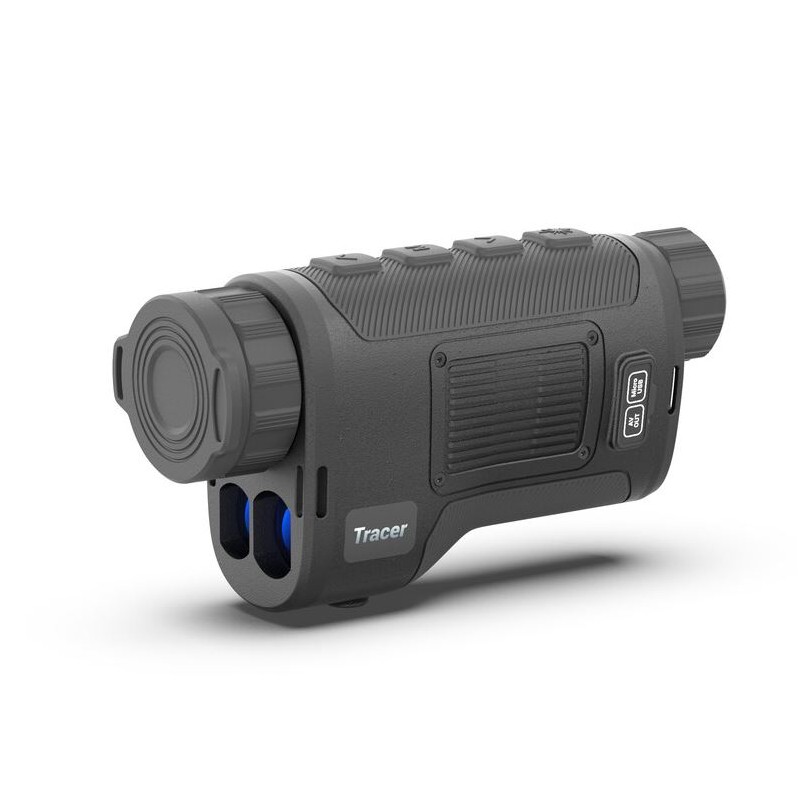

Conotech Thermal imaging camera Tracer LRF 35 Pro
The Tracer LRF series of thermal cameras boasts an integrated laser rangefinder, capable of reaching distances of up to 1000 meters with a remarkable measurement accuracy of ± 1 meter. Featuring a highly sensitive thermal image Vox sensor with NETD 30mK, these cameras excel at detecting targets amidst challenging environmental conditions such as snow, dust, smoke, fog, haze, and other atmospheric obscurants.
1146.12 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Tracer LRF series of thermal cameras boasts an integrated laser rangefinder, capable of reaching distances of up to 1000 meters with a remarkable measurement accuracy of ± 1 meter. Featuring a highly sensitive thermal image Vox sensor with NETD 30mK, these cameras excel at detecting targets amidst challenging environmental conditions such as snow, dust, smoke, fog, haze, and other atmospheric obscurants. Their versatile applications span across hunting, observation, security, terrain orientation, search and rescue operations, and more.
Key Features:
- Sensitive thermal sensor: 12um 384x288
- Built-In laser rangefinder: 5-1000m (±1m) (eye-safe: Class 1 laser)
- LRF modes: Single time measurement | Scanning | Smooth digital zoom
- Smooth viewing with a 50Hz frame rate
- Built-In battery pack with long operation time up to 8 hours
- High protection rating (IP67)
- On-Board photo & video recorder with video output (USB)
- 32GB Internal memory and Built-In WiFi module with a functional App
- Power-saving "Standby" Mode
- Multiple color, display & observation modes
- Fast start-up and Image Enhancement Mode (DDE)
- Ergonomic design with centralized controls and focusable lenses
SPECIFICATIONS:
Type of build: Monocular
Technology: Thermal imaging camera
Magnification: 3.3x
Front lens diameter (mm): 35
Maximum operating distance (m): 1750
Detection distance (m): 600
Objective: F35/1.1
Sensor resolution (Pixel): 384x288
Sensor type: VOx
Pixel size: 12um
Image display: Different versions available
Image cycle rate (Hz): 50
Temperature resolution (mK): < 35
Battery durability (h): 8
Display resolution (Pixel): 1024x768
Special Features:
Infrared illuminator and Digital imaging
Video connection
Splash-proof design
Ancillary lenses available
Field of View:
True field of view (°): 7.5x5.7
Close focus limit (m): 5
Area of Application:
Object protection & observation
Hunting & nature observation
Navigation & Fishing
Cave exploration & Camping
General:
Color: Grey (granite grey)
Length (mm): 155
Width (mm): 50
Height (mm): 92
Weight (g): 540
Series: Tracer
Data sheet
